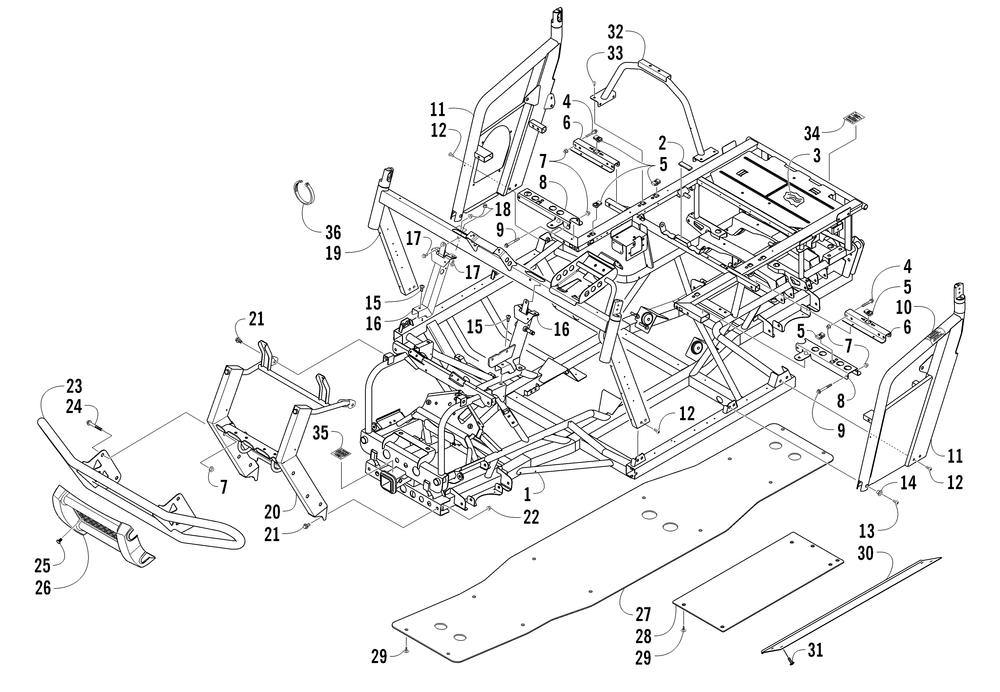

FRAME AND RELATED PARTS

№	Наименование	Кол-во
1	FRAMEFAB (XT/X PS) (inc. 2-3)	1
2	BUMPER SEAT	1
3	SHIELDHEAT-CHASSIS	1
4	SCREWCAP-HFH M8X1.25X50 CL8.8 Z&Y (2 per pack)	6
5	CLIPU-NUT M6 (5 per pack)	12
6	BRACKETSEAT-SUPPORT-REAR-PAINTED BLK	2
7	NUTHEX FLG-NYL LOCK M8X1.25 CL8 Z&Y	14
8	BRACKETSEAT SUPPORT-FRT RH-PTD BLK	1
8	BRACKETSEAT SUPPORT-FRT LH-PTD BLK	1
9	SCREWCAP-HFH M8X1.25X70 CL8.8 Z&Y (5 per pack)	4
10	DECALWARNING-ROPS	1
11	SUPPORTARM-RH-PTD BLACK	1
11	SUPPORTARM-LH-PTD BLACK	1
12	SCREWMACH-TSTRH M8X1.25X20 CL8.8 W/LOCK (4 per pack)	8
13	SCREW MACH-TSTH M8-1.25X30 BLK- W/PATCH (4 per pack)	2
14	SPACERSTEEL (2 per pack)	2
15	SCREWMACH-TSTRH M8X1.25X20 Z&Y	2
16	BRKTSTEERING SUPPORT-PTD BLACK	1
16	BRACKETSTEERING SUPPORT-PAINTED	1
17	SCREWCAP-HFH M8X1.25X20 CL8.8 Z&Y (4 per pack)	6
18	NUTHEX-FLG M8X1.25 CL8 Z&Y	6
19	SUPPORTSTEERING-PTD BLACK	1
20	BUMPERXT/X-PTD BLACK	1
21	SCREWCAP-HFH M10X1.25X20 CL10.9 Z&Y (4 per pack)	4
22	NUTHEX FLG-NYL LOCK M10X1.25 CL8 Z&Y (4 per pack)	2
23	BUMPERPUSH-PAINTED (BLACK)	1
24	SCREWCAP-HFH M8X1.25X60 CL8.8 Z&Y (8 per pack)	4
25	SCREWMACH-TSTRH M6X1.0X16 Z&BLK (5 per pack)	4
26	FASCIABUMPER-FRONT	1
27	PANELBELLY	1
28	PANELBELLY-SIDE	2
29	SCREWBODY-SELF TAP tahos_12 X 3/4 A Z&B (5 per pack)	20
30	PLATESKID-SIDE-BLACK	2
31	SCREWSELFTAP-THFT STS12-24 X 3/4 AB Z&B (4 per pack)	8
32	CANOPY SUPPORT-BLACK	1
33	SCREWMACH-TSTRH M6X1.0X16 Z&Y (5 per pack)	4
34	DECALWARNING-TOWING RR	1
35	DECALWARNING-TOWING FR	1
36	TIECABLE 11.50 (10 per pack)	0
36	TIECABLE-8.5/7.5/7.4 (10 per pack)	0
