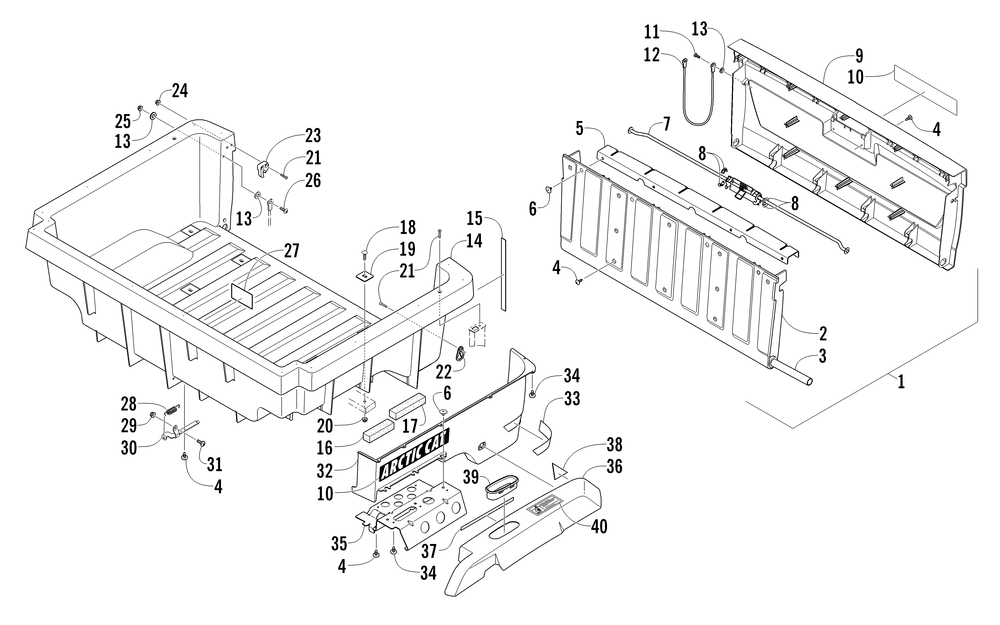

Arctic Cat PROWLER 550 XT RED PROWLER 550 XT RED CARGO BOX AND TAILGATE ASSEMBLY
CARGO BOX AND TAILGATE ASSEMBLY
№ Наименование Примечание Кол-во
1 TAILGATE ASSEMBLY - BLACK (inc. 2-9) 1
2 PANELTAILGATE INNER 1
3 SHAFTPIVOT-TAILGATE 1
4 SCREWSELF TAP-TSTRH tahos_10-12X3/4 TP A BLK (5 per pack) 14
5 BRACETAILGATE-BLACK 1
6 SCREWBODY - 6MM (5 per pack) 10
7 LATCHTAILGATE-BLACK 1
8 BEARINGHANDLE (4 per pack) 4
9 PANELTAILGATE OUTER BLACK 1
10 DECALBOX-"ARCTIC CAT"(PROWLER) 3
11 SCREWMACH-TSTRH M6X1.0X25 Z&Y (5 per pack) 2
12 CABLETAILGATE 2
13 WASHERFLAT- 1/4 X .625 X .065 Z&Y (10 per pack) 6
14 BOXREAR CARGO 1
15 STRIPFOAM .125 IN (2 per pack) 2
16 FOAMCARGO BOX(1.625 X 2 X 6.5) 2
17 FOAMCARGO BOX (1.75 X 2 X 8) 2
18 BOLTCRG-M8-1.25X30-BLK RIE (4 per pack) 8
19 PLATERETAINING-BLACK (MATTE) Black 8
20 NUTHEX-FLG M8X1.25 CL8 Z&Y 8
21 SCREWMACH-TSFH M6X1.0X30 CL8.8 BLK (5 per pack) 8
22 BRACKETTAILGATE-BLACK 1
23 STRIKERTAILGATE-RH-COATED 1
23 STRIKERTAILGATE-LH-COATED 1
24 NUTHEX-FLG M6X1.0 CL8 Z&Y (4 per pack) 4
25 NUTLOCK-NSL M6-1.0 SS (4 per pack) 2
26 SCREWMACH-TSTRH M6X1.0X20 Z&Y (5 per pack) 2
27 DECALWARNING-CARGO (600tahos_) 1
28 SPRINGBOX RELEASE 1
29 NUTFLANGE-LOCK-M6 (4 per pack) 1
30 BRACKETBOX LATCH SPRING-PAINTED 1
31 SCREWMACH-TSTRH M6X1.0X16 Z&Y (5 per pack) 1
32 PANELBOX-RIGHT-BLACK 1
32 PANELBOX-LEFT-BLACK 1
33 REFLECTORLH-REAR 1
33 REFLECTORRH-REAR 1
34 SCREWSELF TAPPING-.1875 X .75 (5 per pack) 28
35 BRACKETFENDER SUPPORT-RH BLACK 1
35 BRACKETFENDER SUPPORT-LH-BLACK 1
36 FENDERREAR UPPER-LH-RED-ASSEMBLY Red (inc. 37-39) 1
36 FENDERREAR UPPER-RH-RED-ASSEMBLY Red (inc. 37-38) 1
37 STRIPFOAM .125 IN (2 per pack) 2
38 PADFOAM .125 IN (2 per pack) 2
39 RINGTRIM-FENDER 1
40 DECALWARNING-PINCH POINT 2
