Drive Shaft-Rear

Корзина пуста

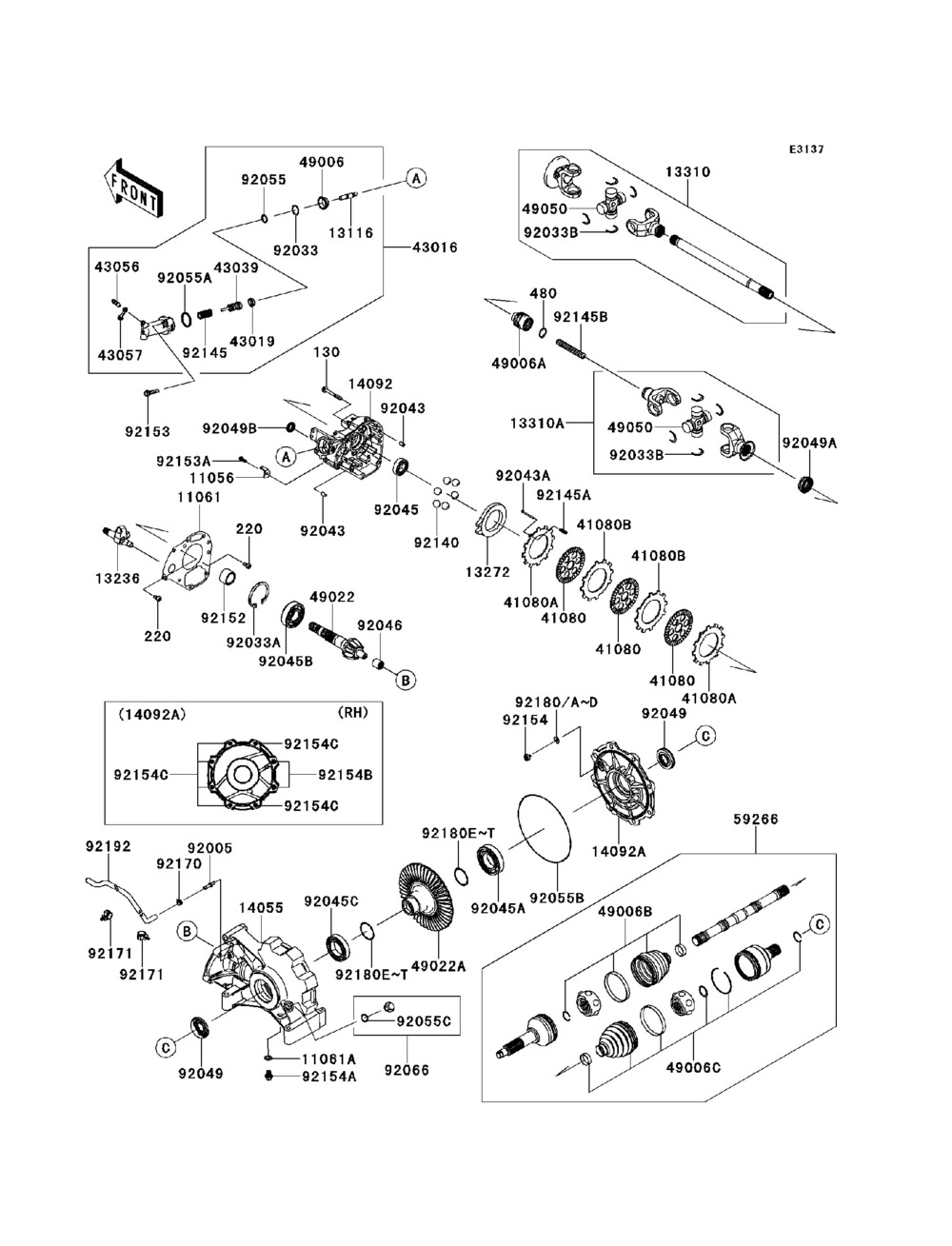

Kawasaki Teryx4 (KRT800-BEF) Teryx4 (KRT800-BEF) Drive Shaft-Rear
Drive Shaft-Rear
№ Наименование Примечание Кол-во
130 BOLT-FLANGED8X60 8
220 SCREW-PAN-CROS 2
480 CIRCLIP-TYPE-C25MM 1
11056 BRACKET 1
11061 GASKETFR COVER 1
11061A GASKETDRAIN 1
13116 ROD-PUSH 1
13236 LEVER-COMPBRAKE 1
13272 PLATECAM 1
13310 SHAFT-ASSYENGINE SID 1
13310A SHAFT-ASSYGEAR-ASSY SIDE 1
14055 CASE-GEAR 1
14092 COVERFR 1
14092A COVER 1
41080 DISCFRICTION 3
41080A DISCPRESSURE 2
41080B DISCSEPARATER 2
43016 CYLINDER-MASTER 1
43019 CUP-BRAKE 1
43039 PISTON-BRAKE 1
43056 BREATHERBRAKE 1
43057 CAP-BREATHER 1
49006 BOOT 1
49006A BOOTGEAR ASSY SIDE 1
49006B BOOTOUTSIDE 2
49006C BOOTINSIDE 2
49022 GEAR-BEVEL10T 1
49022A GEAR-BEVEL44T 1
49050 SPIDER 2
59266 JOINT-BALLRRCVJ 2
92005 FITTINGBREATHER 1
92033 RING-SNAP 1
92033A RING-SNAP 1
92033B RING-SNAP 8
92043 PIN8X14 2
92043A PIN3X35 2
92045 BEARING-BALLtahos_6005 1
92045A BEARING-BALL6209 1
92045B BEARING-BALL6306 1
92045C BEARING-BALLTMB009 1
92046 BEARING-NEEDLE16NQ23 1
92049 SEAL-OIL33X60X11 2
92049A SEAL-OIL25X45X9.5 1
92049B SEAL-OILTC17X28X6 1
92055 RING-O 1
92055A RING-O 1
92055B RING-O 1
92055C RING-O20X2.5 1
92066 PLUG 1
92140 BALLD/Otahos_12 6
92145 SPRING 1
92145A SPRINGRR BRAKE 2
92145B SPRINGPROPELLER SHAF 1
92152 COLLAR 1
92153 BOLTFLANGED8X40 2
92153A BOLTFLANGED-SMALL6X 1
92154 BOLTBUTTON 1
92154A BOLTDRAIN 1
92154B BOLTFLANGED10X40 2
92154C BOLTFLANGED10X40 6
92170 CLAMP 1
92171 CLAMP 2
92180 SHIMT=1.3 0
92180A SHIMT=1.4 0
92180B SHIMT=1.5 1
92180C SHIMT=1.6 0
92180D SHIMT=1.7 0
92180E SHIMT=0.965 0
92180F SHIMT=0.991 0
92180G SHIMT=1.016 0
92180H SHIMT=1.041 0
92180I SHIMT=1.067 0
92180J SHIMT=1.092 2
92180K SHIMT=1.118 0
92180L SHIMT=1.143 0
92180M SHIMT=1.168 0
92180N SHIMT=1.194 0
92180O SHIMT=1.219 0
92180P SHIMT=1.245 0
92180Q SHIMT=1.270 0
92180R SHIMT=1.295 0
92180S SHIMT=1.321 0
92180T SHIMT=1.346 0
92192 TUBEBREATHER 1
