Polaris R17RMA50A4/A1 RGR 499, ETX, HDPE R17RMA50A4/A1 RGR 499, ETX, HDPE DRIVE TRAIN FRONT GEARCASE INTERNALS - R17RMA50A4 / A1 (49RGRTRANSINTL13900XP)

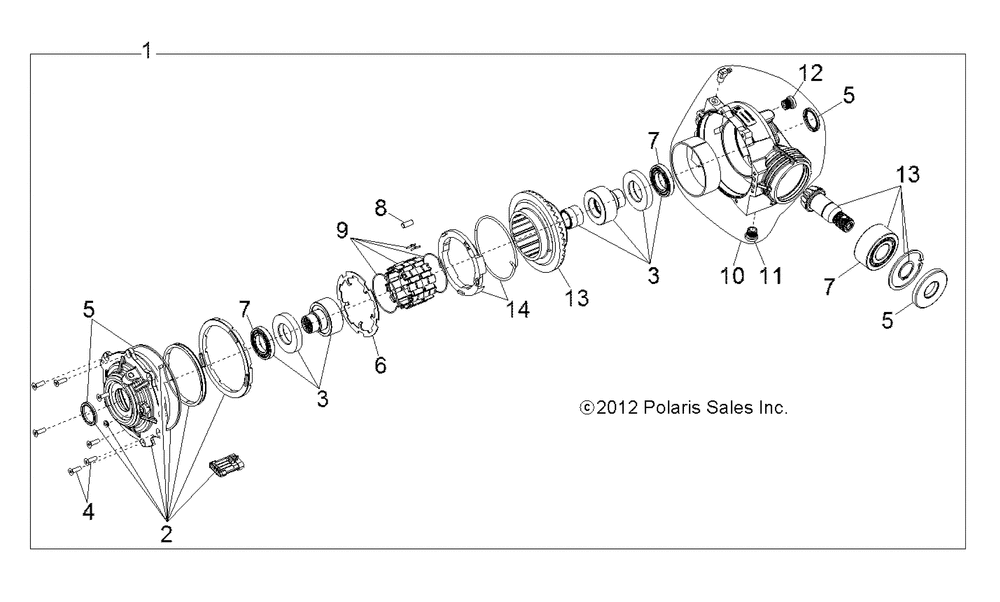

DRIVE TRAIN FRONT GEARCASE INTERNALS - R17RMA50A4 / A1 (49RGRTRANSINTL13900XP)
№ Наименование Примечание Кол-во
1 ASM-GEARCASEFRONT 1
2 ASM-COVEROUTPUT W/O-RING DOWEL PIN OIL SEAL COVER CONNECTOR ASSY BACKLASH SPACER 4WD COIL GROMMET & HEAT SHRINK TUBING 1
3 KIT-HUBASM W/BUSHING HUB SUB. ASSY & NYLON SPACER 1
4 KIT-FASTENER W/ALL FASTENERS 1
5 KIT-SEAL REPAIR W/ALL SEALS 1
6 PLATE-4WD ARMATURE 1
7 BEARING-PINION5306 W/ALL BEARINGS 1
8 CLUTCH ROLL (24) [SET OF 20] (24 per pack) 1
9 ASM-ROLL CAGE 3PC ZINC CAGE AND CLIPS 1
10 KIT-GEARCASE ASM W/HOSE FITTING BUSHING SEAL GEARCASE FILL PLUG & DRAIN PLUG 1
11 DRAIN PLUG(6203-95-010) 1
12 FILL PLUG(1300-04-001-T) 1
13 K-GEAR CLTCH HOUSING & PINION W/RING GEAR ASSY PINION BEARING INTERNAL RING & SHAFT RING 1
14 K-TORSION SPRING & RETAINER 1
