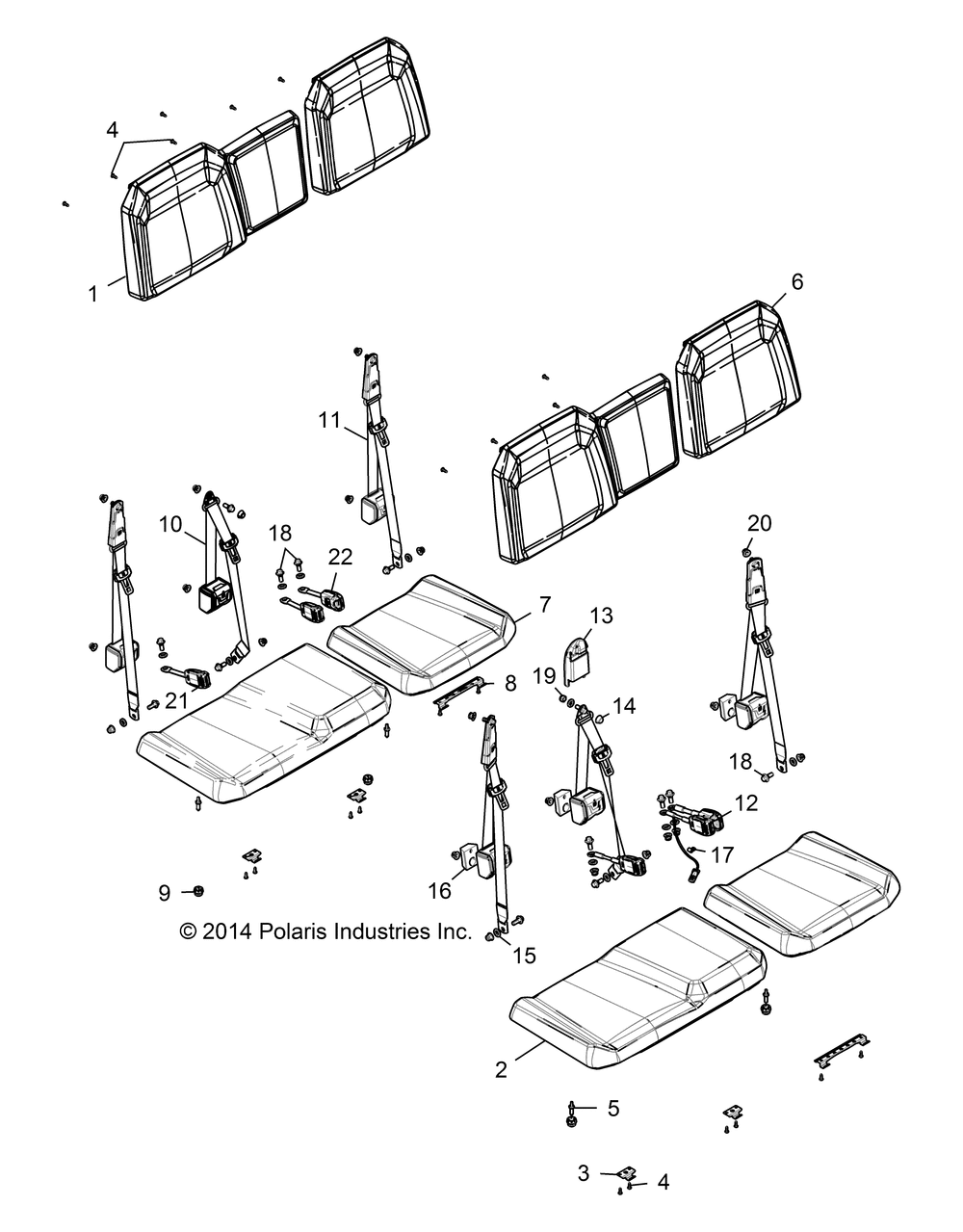

BODY SEAT - R17RVE99NY (6 PASS) (49RGRSEAT15CREW2)

Корзина пуста
Polaris R17RVE99NY RANGER CREW 1000XP 6P,PS,NB,MD R17RVE99NY RANGER CREW 1000XP 6P,PS,NB,MD BODY SEAT - R17RVE99NY (6 PASS) (49RGRSEAT15CREW2)
BODY SEAT - R17RVE99NY (6 PASS) (49RGRSEAT15CREW2)
№ Наименование Примечание Кол-во
1 ASM-SEATBACK60BLK/DK.MARC [AP][BP] 2
2 BRKT-SEAT HINGE 4
2 ASM-SEATBTM60BLK/DK.MARC [AP][BP] 2
2 CVR-SEAT BTM60BLK/DK.MARC [VE99ASBS][VE99AYBY][VU99AVBV] 2
3 SCR-TX TRUSS-tahos_14X3/4HI/LO ZBK 16
4 PIN-SEAT LATCH 4
5 ASM-SEATBACK40BLK/DK.MARC [AP][BP] 2
6 ASM-SEATBTM40BLK/DK.MARC [AP][BP] 1
6 CVR-SEAT BACK40BLK/DK.MARC [VE99ASBS][VE99AYBY][VU99AVBV] 2
6 CVR-SEAT BTM40BLK/DK.MARC [VE99ASBS][VE99AYBY][VU99AVBV] 1
7 BRKT-SEAT HINGEDOUBLE 2
7 ASM-SEATBTM40BLK/DK.MARCDS [VE99ASBS][VE99AYBY][VU99AVBV] 1
8 GROMMET 2
9 ASM-SEAT BELT3PTCENTER 2
10 ASM-SEAT BELT3PT 4
11 BUCKLE-SEATBELT90SWITCH 1
12 COVER-SEAT BELT MOUNT 1
13 CAP-BOLT HEAD 2
14 WASHER-SEATBELTRUBBER 14
15 PAD-REARSEAT BASE 3
16 CLAMP-WIRE/TUBE .25 DIA 1
17 SCR-HXFLSH-M12X1.75-M14X9 ZOD 12
18 NUT-NYLOKM12X1.50600110 1
19 NUT-HXFL M12X1.75 NYLOC ZOD 23
20 BUCKLE-SEATBELT9.6PASSENGER 4
21 BUCKLE-SEATBELT9.6DRIVER 1
22 BUCKLE40MMFEMALE 4
