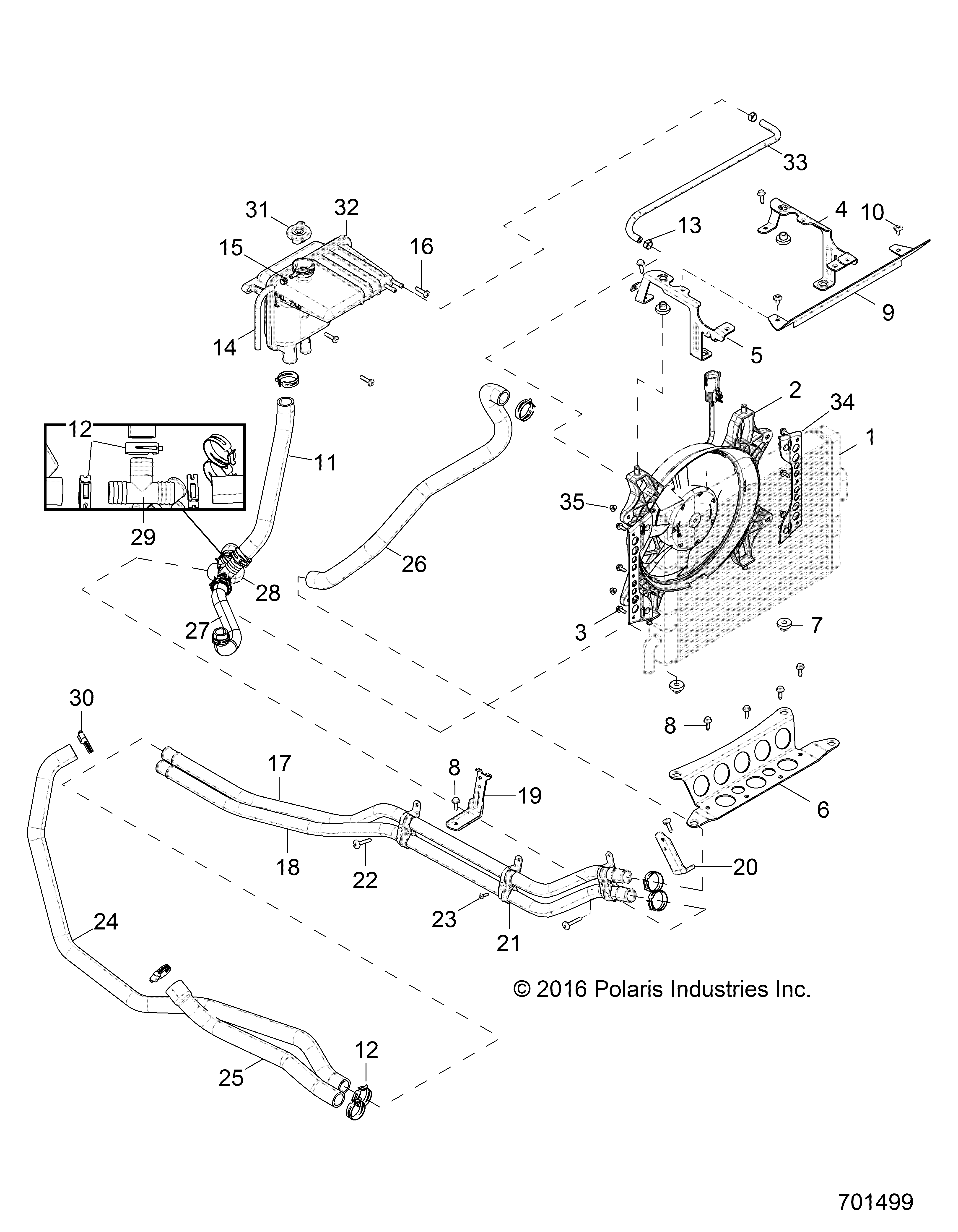

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | ASM-CORERADIATOR | 1 | |
| 2 | ASM-FANBRUSHLESS | 1 | |
| 3 | SCR-HXFLGHDM6X160600086 | 6 | |
| 4 | BRKT-MOUNTRADIATORLHECOAT | 1 | |
| 5 | BRKT-MOUNTRADIATORRHECOAT | 1 | |
| 6 | BRKT-MOUNTRADIATORBLK | 1 | |
| 7 | GROMMET | 4 | |
| 8 | SCR-M6X1.0X20HXHDFLGTDFMBL( | 8 | |
| 9 | SHROUD-RADIATORUPPER | 1 | |
| 10 | SCR-M6X1X16 TR/TX-M | 2 | |
| 11 | HOSE-OUTSURGE TANK TO TEE | 1 | |
| 12 | CLAMPSPRINGBAND 35/12BLK | 10 | |
| 13 | CLAMPHOSE(10) (10 per pack) | 2 | |
| 14 | HOSE-IACSHORT | 1 | |
| 15 | CLAMP-HOSE | 1 | |
| 16 | SCR-tahos_14X1 HI/LO-PH-PN TRX-M | 3 | |
| 17 | ASM. COOLANT TUBE | 1 | |
| 18 | TUBE-COOLANT1" | 1 | |
| 19 | BRACKET COOLANT TUBE BLACK | 1 | |
| 20 | BRACKET COOLANT TUBE BLACK | 1 | |
| 21 | BRACKET-COOLANT TUBE | 4 | |
| 22 | SCR-M6X1X40TR/TX-M | 2 | |
| 23 | SCREW(10) (10 per pack) | 2 | |
| 24 | HOSE-ENG OUTLETREAR | 1 | |
| 25 | HOSE-ENG INLETREAR | 1 | |
| 26 | HOSE-RADIATORUPPER | 1 | |
| 27 | HOSE-RADIATORLWRFRONT | 1 | |
| 28 | HOSE-RADIATORLWRREAR | 1 | |
| 29 | CONNECTOR-TEE1"1"1" BARBED | 1 | |
| 30 | CLAMP-HOSE(WORM DR)25-40MM (Worm Drive) | 2 | |
| 31 | CAP-PRESSURE | 1 | |
| 32 | WELD-SURGE TANKDUAL | 1 | |
| 33 | 1/4"SAEJ2002EPDM HOSE61 CM | 1 | |
| 34 | WELD-BRKT-MNTFANECOAT | 2 | |
| 35 | NUT-M6X1.0FLG-NYLOC-OLIVE D | 4 |
