DRIVE TRAIN FRONT GEARCASE INTERNALS

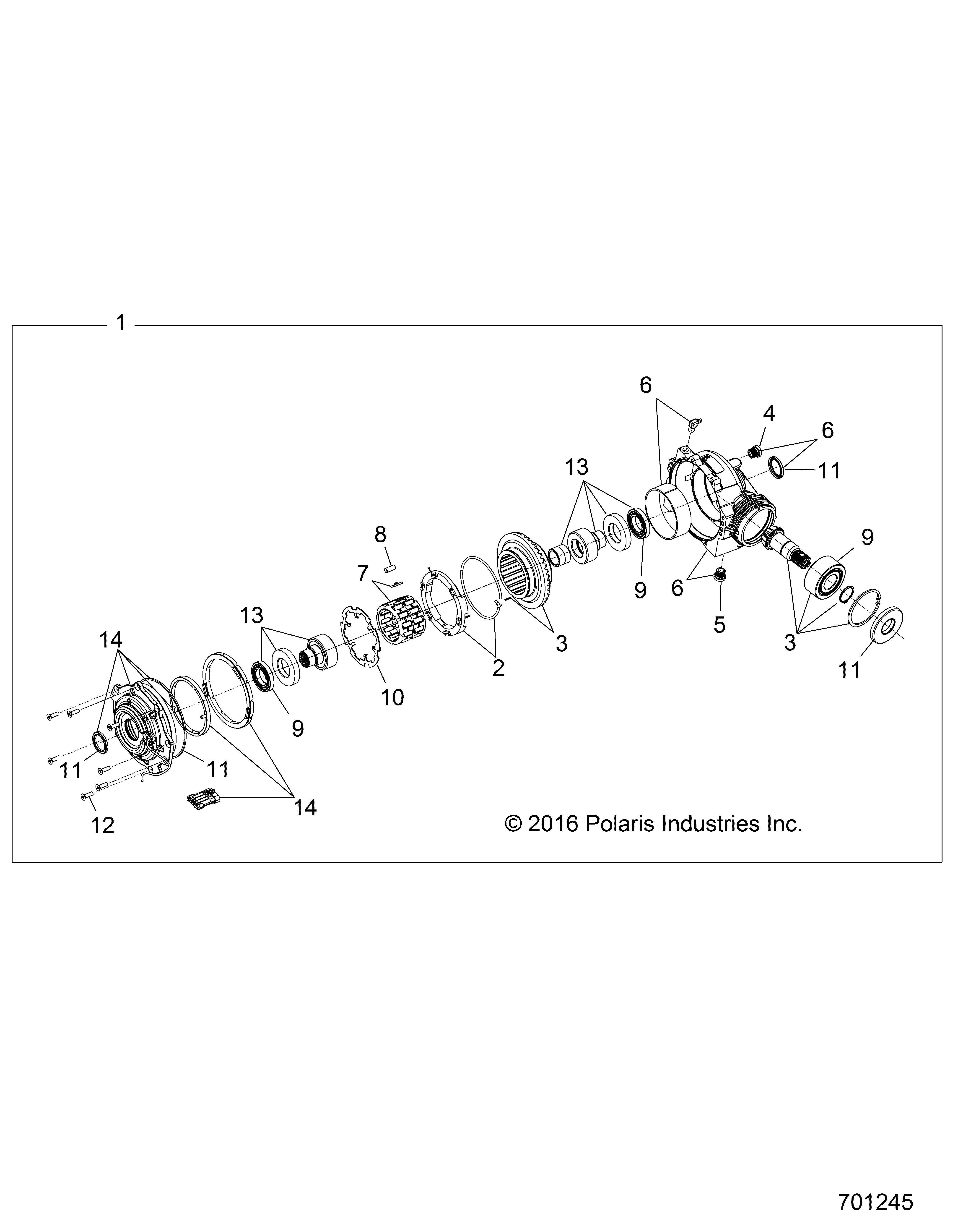

Polaris Z17VJE57AR RZR 570 S Z17VJE57AR RZR 570 S DRIVE TRAIN FRONT GEARCASE INTERNALS - Z17VJE57AR (701245)

№	Наименование	Кол-во
1	ASM. GEARCASE FRONT	1
2	K-TORSION SPRING & RETAINER	1
3	K-GEAR CLTCH HOUSING & PINION W/RING GEAR ASSY PINION BEARING INTERNAL RING & SHAFT RING	1
4	FILL PLUG(1300-04-001-T)	1
5	DRAIN PLUG(6203-95-010)	1
6	KIT-GEARCASE ASM W/HOSE FITTING BUSHING SEAL GEARCASE FILL PLUG & DRAIN PLUG	1
7	ASM-ROLL CAGE 3PC ZINC CAGE AND CLIPS	1
8	CLUTCH ROLL (24) [SET OF 20] (24 per pack)	1
9	BEARING-PINION5306 W/ALL BEARINGS	1
10	PLATE-4WD ARMATURE	1
11	KIT-SEAL REPAIR W/ALL SEALS	1
12	KIT-FASTENER W/ALL FASTENERS	1
13	KIT-HUBASM W/BUSHING HUB SUB. ASSY & NYLON SPACER	1
14	ASM-COVEROUTPUT W/O-RING DOWEL PIN OIL SEAL COVER CONNECTOR ASSY BACKLASH SPACER 4WD COIL GROMMET & HEAT SHRINK TUBING	1
