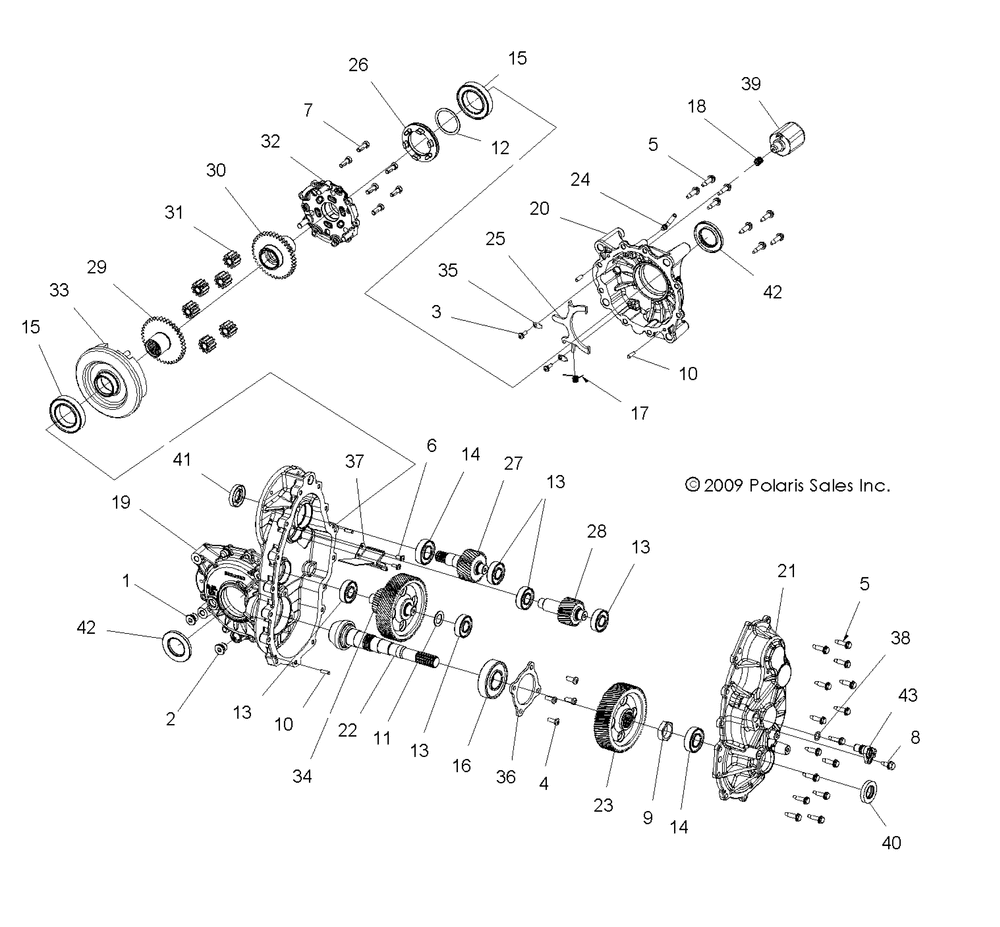

DRIVE TRAIN MAIN GEARCASE - R18RMAE4N8 (49LEVGEARCASE1332793)

Polaris R18RMAE4N8 RANGER EV MD R18RMAE4N8 RANGER EV MD DRIVE TRAIN MAIN GEARCASE - R18RMAE4N8 (49LEVGEARCASE1332793)

№	Наименование	Кол-во
	ASM-GEARCASEEDT	1
1	PLUG-SKT HD 1SO 6149M18 X 1.5	1
2	PLUG-SOCKET HEAD W/MAGM18X1.5	1
3	SCREW TORX PAN HD M6 X 1 X 16	2
4	SCREW-HXBTN HDM8 X 1.25 X 20	4
5	SCREW-HEXFLANGEHEADM8X1.25X30	23
6	SCREW-TORX THDPN HDM6X1X14	2
7	SCREW-CAP HHM8 X 1.25 X 20	6
8	SCR-HEXFLG HDM8 X 1.25 X 20	1
9	NUT-JAM 1 3/16-12 UN 28	1
10	PIN DOWEL 6 X 20	4
11	WASHER	0
12	SHIM	1
13	BEARING	5
14	BEARING	2
15	BEARING BALL	2
16	BEARING-BALL6307 C3(35X80X21)	1
17	SPRING TORSION RETURN	1
18	SPRINGCOMPRSSN.54ODX.44IDX.05	1
19	CASE-MAIN MACHINED	1
20	COVER-MACHINED	1
21	COVER-MACHEDT	1
22	SHAFT-PINION10T SPIRAL BEVEL	1
23	GEAR-82T HELICAL	1
24	TUBE-VENT90-1/4" HOSE	1
25	FORK PIVOT SHIFT REAR DIFF	1
26	DOG-ENGAGEMENT	1
27	SUBASSY-SHAFTMOTOR 34T [INCL. QTY 1 OF 1314]	1
28	SUBASSYSHAFTIDLER 28T [INCL. QTY 2 OF 13]	1
29	SUB ASM-39T SIDE GEAR	1
30	SUB ASM-39T SIDE GEAR DISCNNCT [INCL. BEARING]	1
31	GEAR-PLANET SUB ASSEMBLY [INCL. BUSHING]	6
32	COVER-CARRIER SUB ASSEMBLY [INCL. BEARING	1
33	SUBASSEM-GEAR31T SPIRAL BEVEL [INCL. BEARING 3234241]	1
34	SUBASSY-SHAFT BLANK INTERMEDIA	1
35	RETAINER-FORK	2
36	COVER-BEARINGPINION	1
37	OIL DEFLECTOR	1
38	O-RING -113	1
39	SOLENOID	1
40	SEAL-TRPL LIP 24X47X8	1
41	SEAL-VITONTRIPLE LIP	1
42	SEAL-TRIPLE LIP40X70X7	2
43	SENSOR-SPEEDTRANS	1
