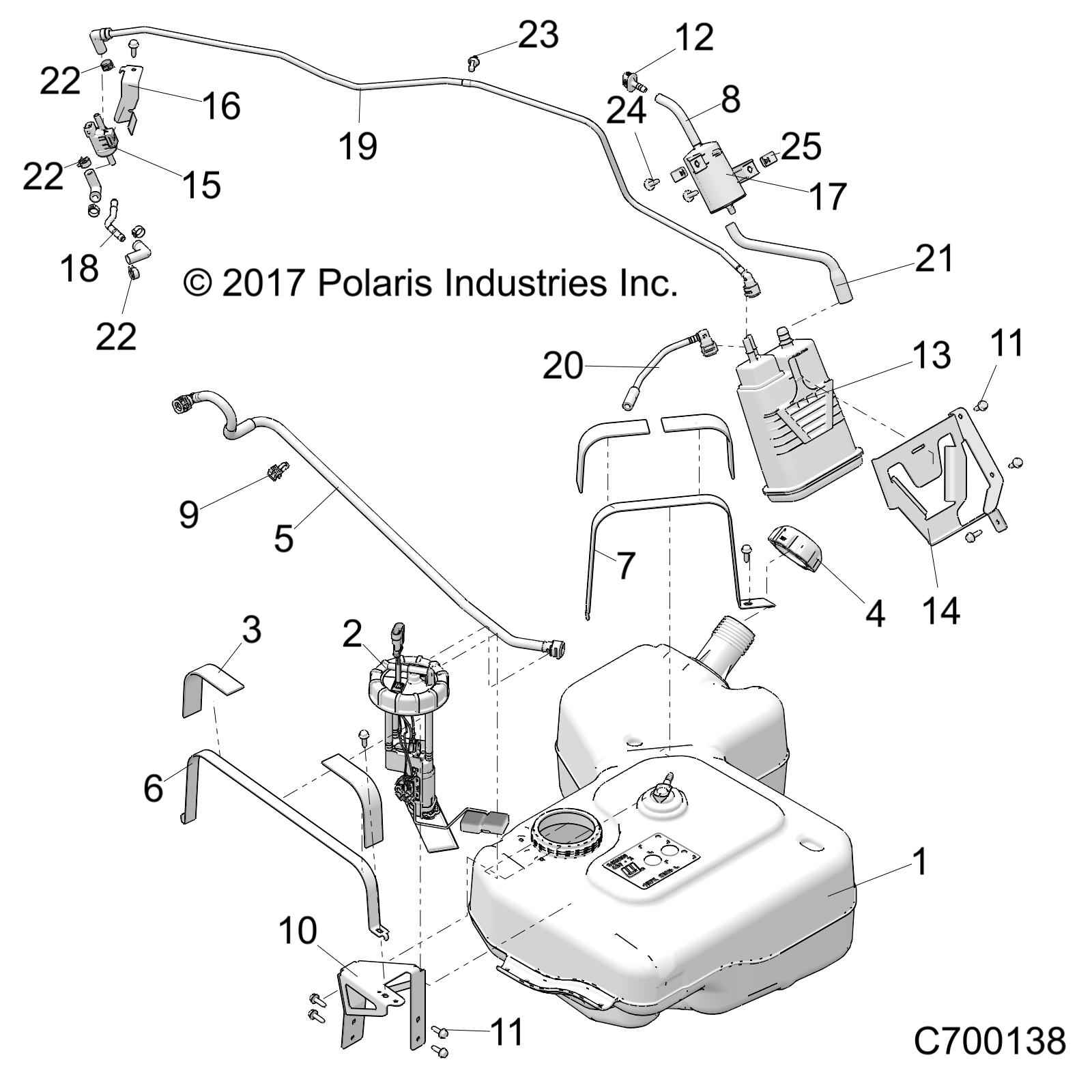

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | ASM-FUEL TANK [INCL. 23] | 1 | |
| 2 | ASM-FUEL PUMP | 1 | |
| 3 | PAD BATTERY | 5 | |
| 4 | CAP-GAS TANK | 1 | |
| 5 | ASM-FUEL LINE [INCL. 9] | 1 | |
| 6 | BRKT-TANKSTRAPINSIDEGALV | 1 | |
| 7 | BRKT-TANKSTRAPOUTSIDEGALV | 1 | |
| 8 | FUEL LINE 1/4"SAE185CM | 1 | |
| 9 | CLIP-EDGESIDE W/STRAP | 1 | |
| 10 | BRKT-FUEL TANKSUPPORTBLK | 1 | |
| 11 | SCR-M6X1.0X20HXHDFLGTDFMBL( | 0 | |
| 12 | FITTING-VENT LINE | 1 | |
| 13 | CANISTER-ACTIVATED CARBON | 1 | |
| 14 | BRKT-CANISTERMNTBLK | 1 | |
| 15 | VALVE-PURGE | 1 | |
| 16 | BRKT-PURGEMNTBLK | 1 | |
| 17 | FILTER-CANISTER VENT | 1 | |
| 18 | ASM-FUEL LINEPURGE TO TB | 1 | |
| 19 | ASM-LINECANISTER TO PURGE | 1 | |
| 20 | ASM-LINETANK TO CANISTER | 1 | |
| 21 | HOSE-AIRFRESHFUEL VENT | 1 | |
| 22 | CLAMP-HOSE 17/32 GREEN | 3 | |
| 23 | CLIP-ROUTING(10) (10 per pack) | 1 | |
| 24 | SCR-TXTH-M6X1.0X25 RIE(10) (10 per pack) | 2 | |
| 25 | NUT-M6-1.0U-TYPE (2.5-3.8)(10) | 2 |
