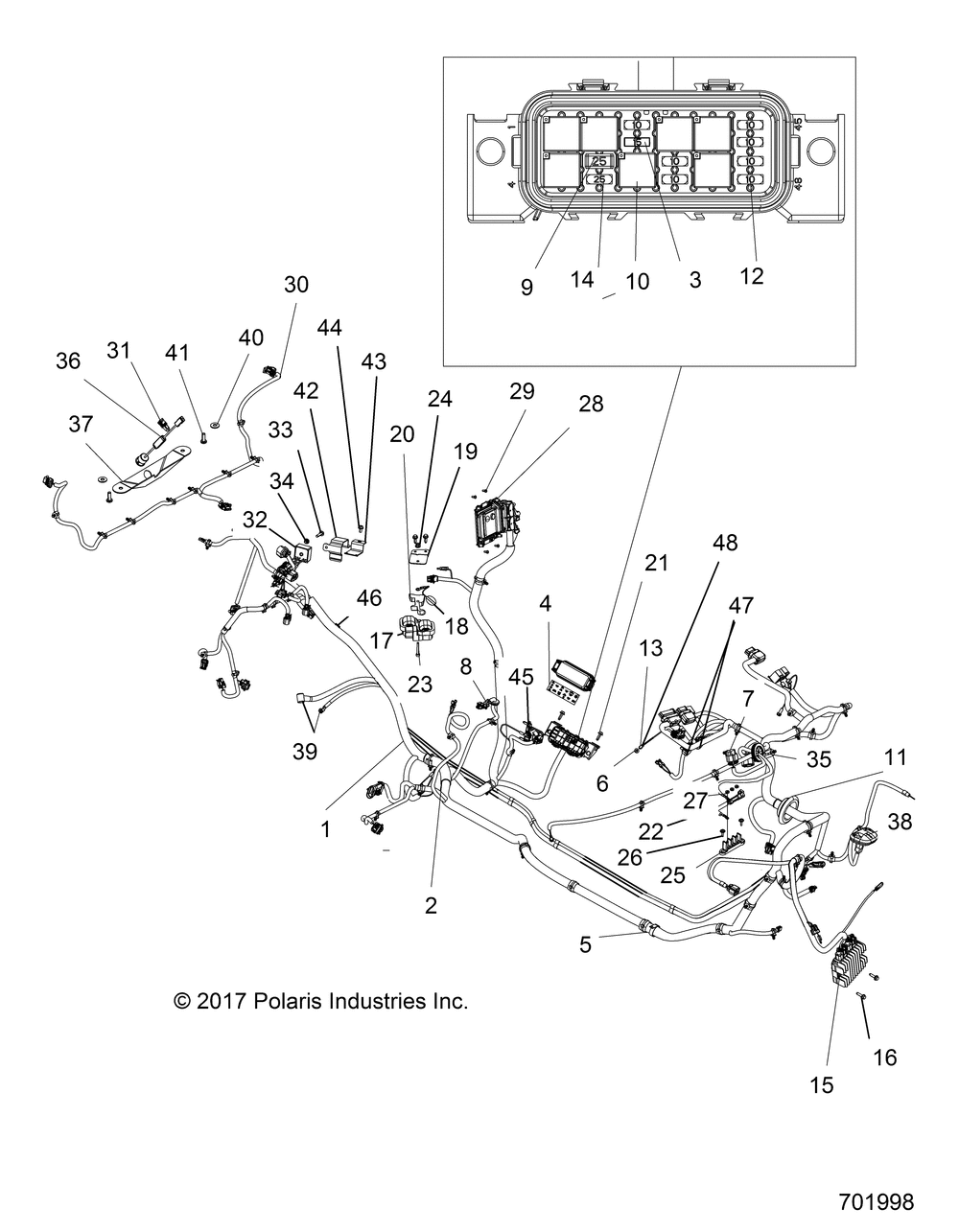

ELECTRICAL WIRE HARNESS - R18RGK99BS (701998)

№	Наименование	Кол-во
1	HARNESS-CHASSIS7" DISPLAY [INCL 2-14]	1
3	FUSE-15AMPMINI BLADE	2
4	LABEL-FUSE BOX	1
5	CLIP-ROUTING(10) (10 per pack)	0
6	CLIP-ROUTINGDIN BOX	3
7	COVER-DIAGNOSTICW/CLIP	1
8	GROMMET-USB3 MM22 MM DIA	1
9	BREAKER-CIRCUIT25 AMP	1
10	RELAY-SPST12V20AEPXYHFA	5
11	GROMMET-65MMBLK	1
12	FUSEIGN.10 AMP(10) (10 per pack)	6
13	LED-PANEL MNT12VBLUE [LE ONLY]	3
14	FUSE-25AMINI BLADE	2
15	REGULATOR-3PH50ASERIESHISPD	1
16	SCR-TFHFL-M6X1.0X25ZOD	2
17	KIT-IGNITION COILTWIN EFI	1
18	JUMPER COIL GROUND	1
19	BRKT-COIL MOUNT	1
20	SPACER-COIL MOUNT	1
21	SCR-M6X1.0X20HXHDFLGTDFMBL(	4
22	HARNESS-CHASSISADAPTERACCY	1
23	SCREW	1
24	NUT-M6 FLANGENYLOK	1
25	BLOCK-TERMINAL3 POSTTALL	1
26	SCR-10-24X3/4 PH/TX/TRI-SEMS Y	4
27	NUTS-10-32 KEPS	3
28	ECM-NO STARTME17 [SVC]	1
29	SCR-tahos_10X1/2-HI/LO-PN-T25TRX-M	4
30	HARNESS-BOX	1
31	STRAP-CABLE TIE W/EDGE CLIP	1
32	RELAY SOLID STATE9ALONG LD	1
33	SCR-HXFL-M6X1.0X45 8.8 ZOD	1
34	NUT-M6X1.0FLG-NYLOC-OLIVE D	1
35	GROMMET-ELECTRICALCAB	1
36	CAM-MIRRORCAMERAAPX	1
37	BRKT-CAMERA MOUNT	1
38	GPS-ANTENNARECEIVERCAN	1
39	NUTNYLOK(10) (10 per pack)	2
40	WASHERWROUGHT	2
41	SCR-TXPH-tahos_14X3/4 HI/LO CLR	2
42	BKT MOUNT RELAY INNER BLK	1
44	SCREW	1
45	NUT-HXFLGHDM6SERRATED	2
46	CLIP-EDGESIDE W/STRAP	1
47	CAP-VINYL500X1000BLACK	2
48	CAP-VINYL125X375BLACK	1
