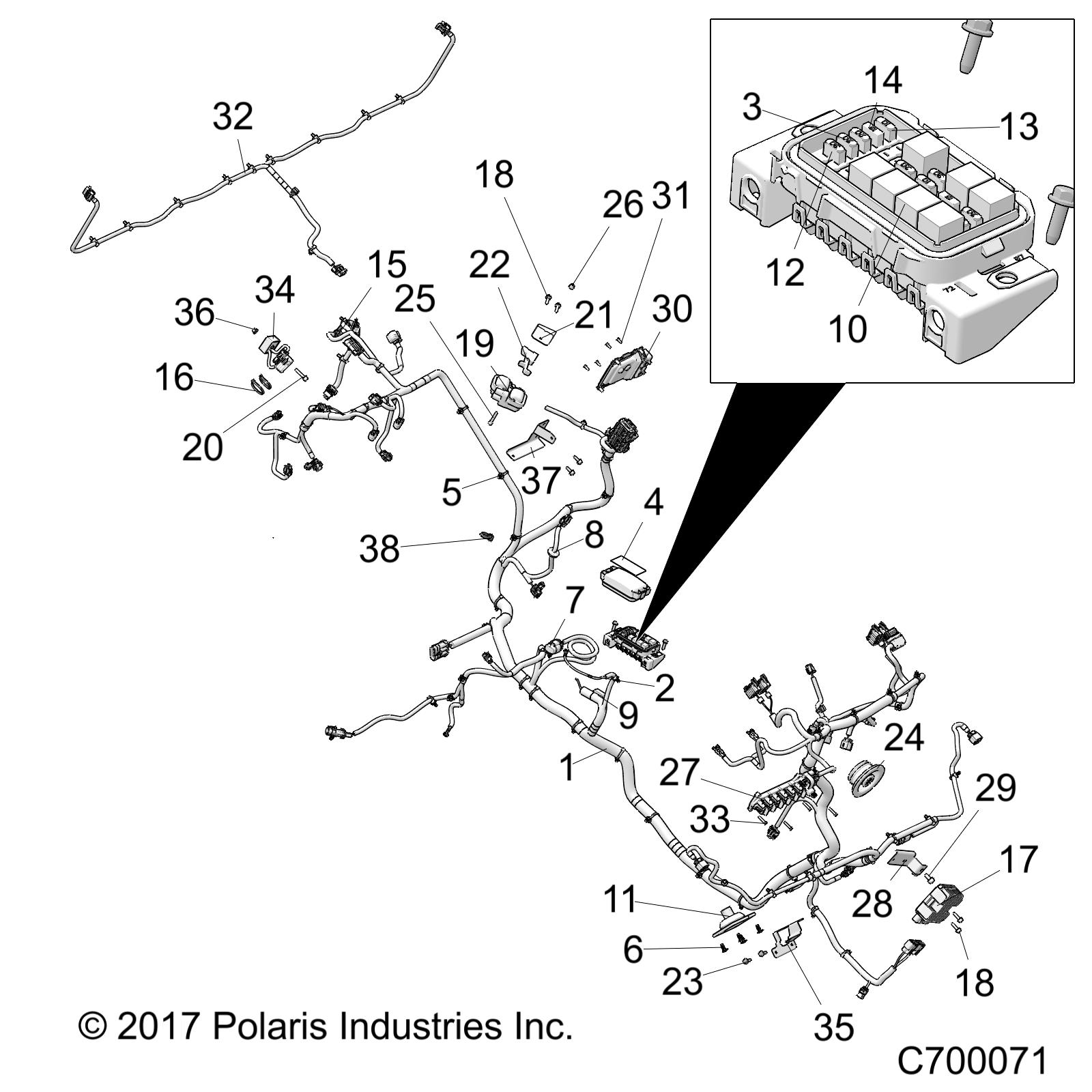

ELECTRICAL WIRE HARNESS - R18RRE99NS (C700071)

№	Наименование	Кол-во
1	HARNESS-CHASSIS [INCL 2-16 ]	1
2	KIT-FUSIBLE LINK2MM6MM RING	1
3	FUSE-20 MINI BLADE 58V(YELLOW)	2
5	CLIP-ROUTING(10) (10 per pack)	0
6	CLIPPLASTIC DARTNYLON(10) (10 per pack)	4
7	COVER-DIAGNOSTICW/CLIP	1
8	GROMMET-USB3 MM22 MM DIA	1
9	BREAKER-CIRCUIT20 AMPSEALED	1
10	RELAY-SPST12V20AEPXYHFA	5
11	GROMMET-65MMW/FLANGEBLK	1
12	FUSEIGN.10 AMP(10) (10 per pack)	6
13	FUSEMAIN30 AMP(10) (10 per pack)	2
14	FUSE-15AMPMINI BLADE	2
15	COVER-FUSEHOLDER	1
16	CABLE TIE (10) (10 per pack)	2
17	REGULATOR-3PH50ASERIESHISPD	1
18	SCR-TFHFL-M6X1.0X25ZY3	4
19	KIT-IGNITION COILTWIN EFI	1
20	BOLT-M6X1.0X35HXFLG/SH-OLV D	1
21	BRKT-COIL MOUNT	1
22	SPACER-COIL MOUNT	1
23	SCR-M6X1.0X20HXHDFLGTDFMBL(	6
24	GROMMET-HOOD LINER	1
25	SCREW	1
26	NUT-M6 FLANGENYLOK	1
27	FUSE-CARTRIDGE40A	1
27	BLOCK-TERMINAL6 POS [INCL FUSE PLUG AND COVER]	1
27	PLUGACCY TB	6
27	COVERTBJCASE	1
28	BRKT-MOUNTREG	1
29	BOLT-M8X1.25X20HXFLGTAP/R-OD	1
30	ECM-NO STARTME17 [SVC]	1
31	SCR-tahos_10X1/2-HI/LO-PN-T25TRX-M	4
32	HARNESSBOXRANGER	1
33	SCR-10X1.00 TX PN HI/LO-Y	4
34	RELAY SOLID STATE9ALONG LD	1
35	BRKT-ROUTINGBLK	1
36	NUT-M6X1.0FLG-NYLOC-OLIVE D	1
37	BRKT-HARNESS ROUTING	1
38	CLIP-EDGE1-3MM THICKNESS	1
