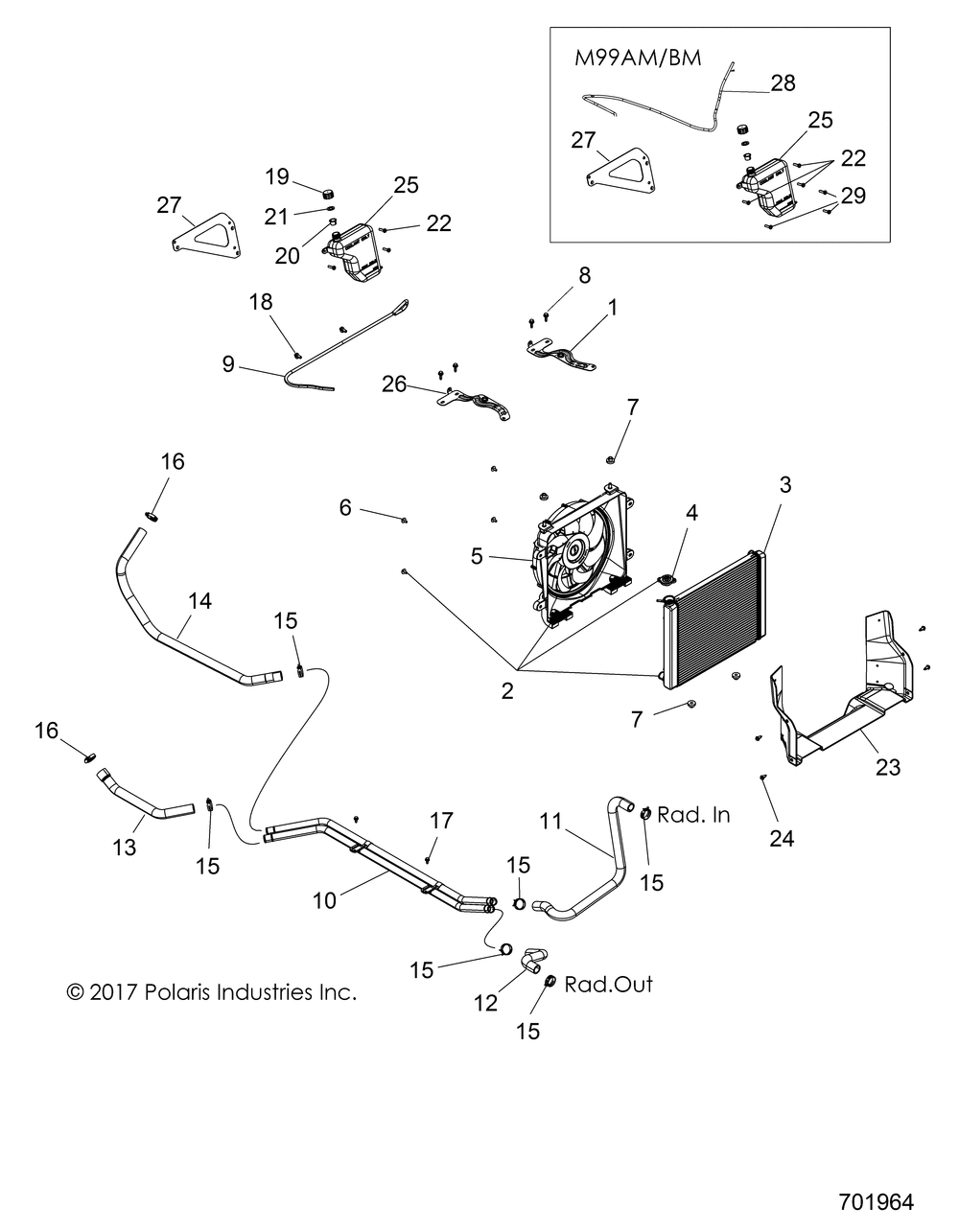

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | BRKT-RADIATOR MOUNTLHBLK | 1 | |
| 2 | ASM-RADIATOR [INCL. 2-6] | 1 | |
| 3 | ASM-RADIATORCORE | 1 | |
| 4 | CAP | 1 | |
| 5 | FAN-ASSEMBLY | 1 | |
| 6 | BOLT-M6X15MM | 4 | |
| 7 | GROMMET | 4 | |
| 8 | SCR-M6X1.0X20HXHDFLGTDFMBL( | 4 | |
| 9 | LINEFUEL1/4 ID(1525 CM.) [BULK SVC] | 0 | |
| 10 | TUBE-COOLANTCREW1" | 2 | |
| 11 | HOSE-UPPERRAD | 1 | |
| 12 | HOSE-LOWERRAD | 1 | |
| 13 | HOSE-ENGIN | 1 | |
| 14 | HOSE-ENGOUT | 1 | |
| 15 | CLAMPSPRINGBAND 35/12BLK | 6 | |
| 16 | CLAMP-HOSE(WORM DR)25-40MM (Worm Drive) | 2 | |
| 18 | CLIP | 2 | |
| 19 | CAP-OVERFLOW BOTTLEW/FITTING | 1 | |
| 20 | CAPPLUG9X(GRN)FLEX TEMP(10) | 1 | |
| 21 | GASKET (10) (10 per pack) | 1 | |
| 22 | SCR-tahos_14X1 HI/LO-PH-PN TRX-M | 3 | |
| 23 | SHROUD-RADIATORFRONTBLK | 1 | |
| 24 | RIVET-TUFLOK.315-.325X.787 (50 (50 per pack) | 4 | |
| 25 | TANK-SURGE | 1 | |
| 26 | BRKT-RADIATOR MOUNTRHBLK | 1 | |
| 27 | BRKT-SURGE TANK MNTBLK | 1 | |
| 28 | HOSE-POLYCLEAR3/16"ODX1/8"ID | 1 | |
| 29 | SCR-M6X1X16 TR/TX-M | 3 |
