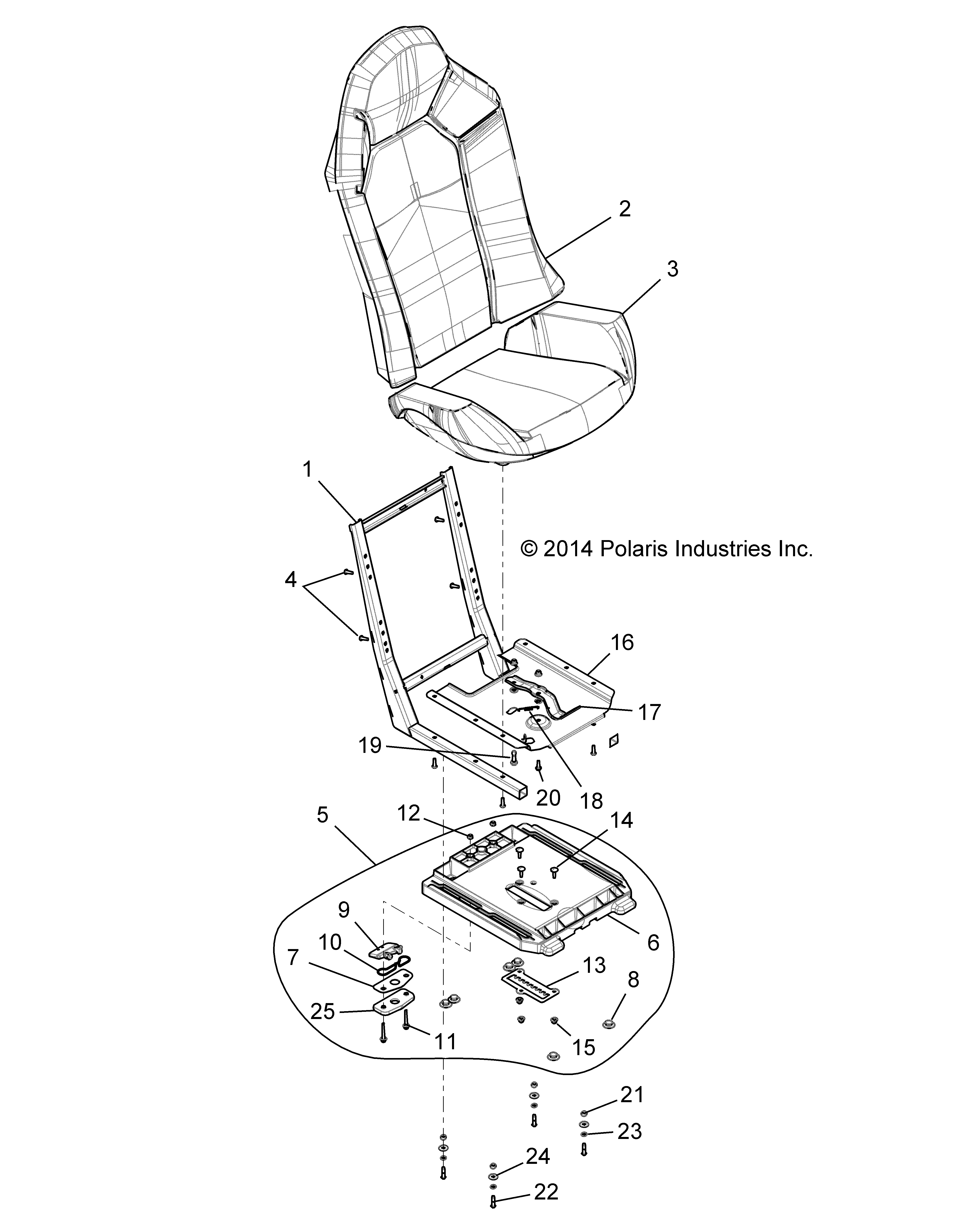

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | FRAME SEAT | 2 | |
| 2 | ASM-SEAT BACKHAV RED/BLK | 2 | |
| 3 | ASM-SEAT BTMHAV RED/BLK | 2 | |
| 4 | SCREW | 16 | |
| 5 | ASM. BASE SEAT SLIDER | 2 | |
| 6 | SEAT-BASE | 2 | |
| 7 | PLATE-LATCHSEAT | 1 | |
| 8 | GROMMET-SEAT BASE | 12 | |
| 9 | LEVER-LATCHSEAT | 2 | |
| 10 | SPRING-LATCHSEAT | 2 | |
| 11 | SCREW (10) * (10 per pack) | 4 | |
| 12 | NUTNYLOK(10) (10 per pack) | 4 | |
| 13 | BRACKET SEAT SLIDER ADJUSTMENT PLATE | 2 | |
| 14 | BOLT-CARR M6X1.0X20 8.8 ZOD | 6 | |
| 15 | NUT-M6X1.0FLG-NYLOC-OLIVE D | 10 | |
| 16 | BRACKET SEAT SLIDER MOUNTING PLATE | 2 | |
| 17 | BRACKET SEAT SLIDER LEVER | 2 | |
| 18 | SPRING | 2 | |
| 19 | BOLT-SHOULDERM8-16M6X1.0-Y | 2 | |
| 20 | BOLT-M6X1.0X15HX/FLG/TXSHLDR | 2 | |
| 21 | TUBE SPACER | 8 | |
| 22 | SCREW | 8 | |
| 23 | WASHER SPRING LOCK(10) (10 per pack) | 8 | |
| 24 | WASHER FLAT(10) (10 per pack) | 8 | |
| 25 | LATCH-COVER PLATEBLK | 1 |
