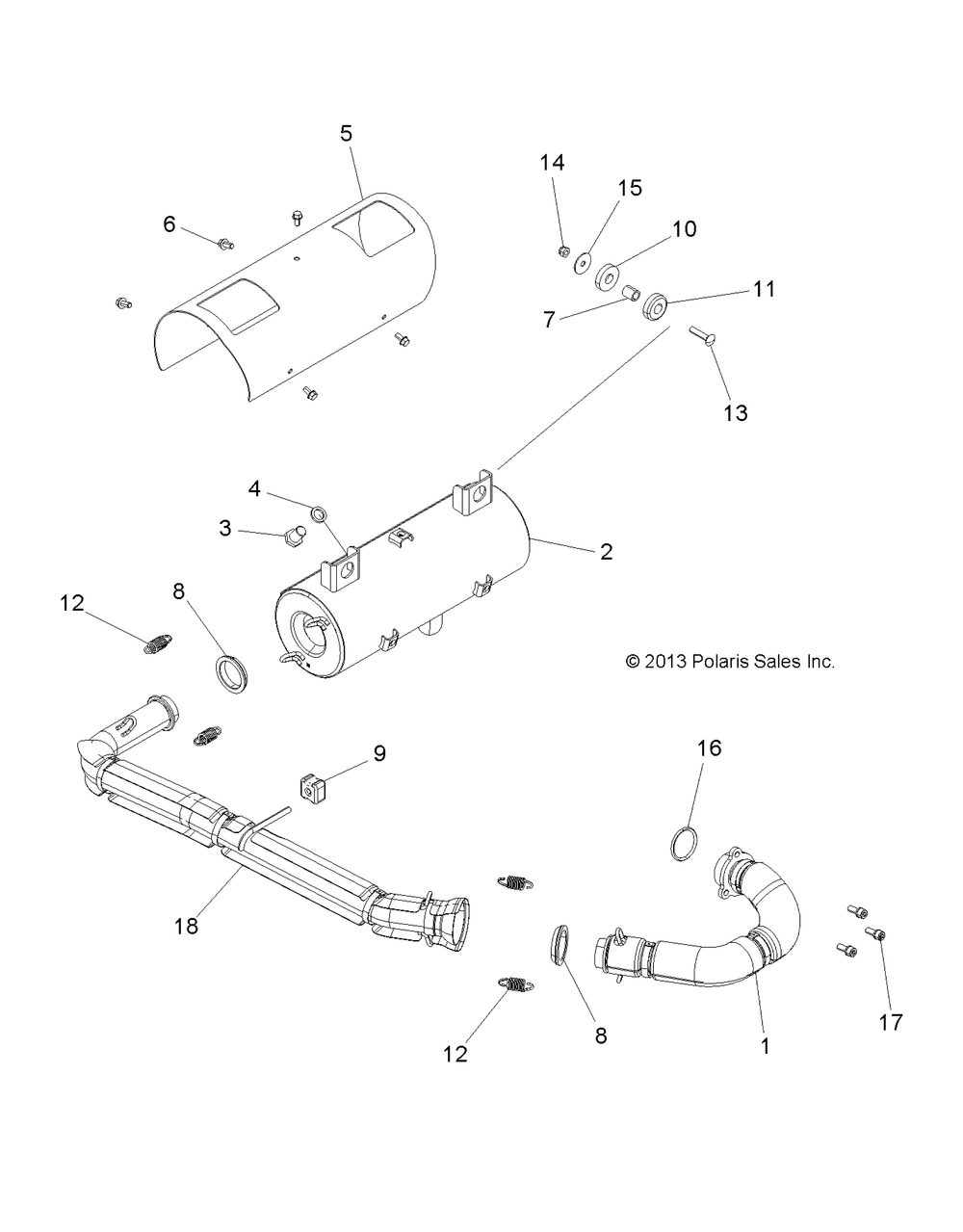

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | CLAMP HEAT SHIELD EXHAUST | 3 | |
| 1 | WELD-HEADPIPEFRONT | 1 | |
| 1 | SHIELD-FRONTTOP | 1 | |
| 1 | SHIELD-FRONTBOTTOM | 1 | |
| 2 | WELD-SILENCERBLK | 1 | |
| 3 | BOLT | 1 | |
| 4 | WASHER-CLEAN OUT .51X.75X.09 (1 | 1 | |
| 5 | SHIELD-SILENCER | 1 | |
| 6 | SCR-1/4-20X1/2TFM HW-M | 5 | |
| 7 | BUSHING | 2 | |
| 8 | SEAL-EXHAUST | 2 | |
| 9 | GROMMET-SILENCER MOUNT | 1 | |
| 10 | WSHR-15.4X38.1X7.9 RUBBER | 2 | |
| 11 | DAMPER-VIBRATION | 2 | |
| 12 | SPRING(10) (10 per pack) | 4 | |
| 13 | BOLT | 2 | |
| 14 | NUTNYLOK(10) (10 per pack) | 2 | |
| 15 | WASHER | 2 | |
| 16 | GASKET-EXHAUST SEALING | 1 | |
| 17 | SCR-M8X1.25X22HX/SO | 3 | |
| 18 | ASM-HEADPIPEMID | 1 |
