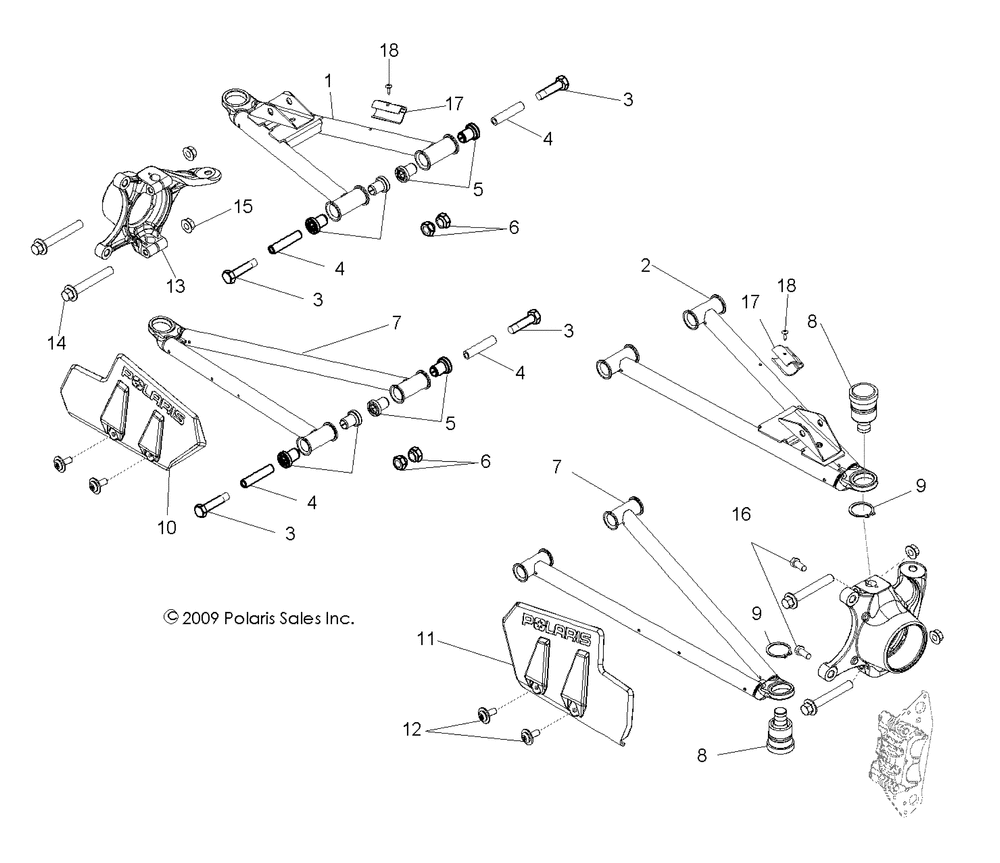

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | WELD-CTRL ARMUPPERFRTRHBLK | 1 | |
| 2 | WELD-CTRL ARMUPPERFRTLHBLK | 1 | |
| 3 | SCR-HXFL-M10X1.25X95 10.9 ZOD(1 | 8 | |
| 4 | SHAFT-PIVOT73.96MMZINC OLIVE( | 8 | |
| 5 | BUSHING-A-ARM-SHORTBLK(10) (10 per pack) | 16 | |
| 6 | NUT-M10X1.25FLGNYLOC-OLIVE D( | 8 | |
| 7 | WELD-CTRL ARMLWRFRTBLK | 2 | |
| 8 | BALL-JOINT8MM5140 [BUILT 3/05/13 AND BEFORE] | 4 | |
| 9 | RING-RETAINEREXTERNAL1.188 | 4 | |
| 10 | SHIELD-CVFRONTRHBLK | 1 | |
| 11 | SHIELD-CVFRONTLHBLK | 1 | |
| 12 | SCREW(10) (10 per pack) | 4 | |
| 13 | CARRIER-BEARINGWHEELLH(MACH) | 1 | |
| 13 | CARRIER-BEARINGWHEELRH(MACH) | 1 | |
| 14 | SCREW | 4 | |
| 15 | NUT-M8X1.25C10HXNYLDIN982Z | 4 | |
| 16 | BOLT-M10X1.25X25HXFLGW/PATCH | 4 | |
| 17 | RETAINER-BRAKE LINE1" | 2 | |
| 18 | POP RIVET(50) (50 per pack) | 2 |
