DRIVE TRAIN FRONT GEARCASE INTERNALS - R11HR76AG / AR (49RGRGEARCASE1332829)

Корзина пуста
Polaris R11HR76AG/AR RANGER 6X6 800 EFI R11HR76AG/AR RANGER 6X6 800 EFI DRIVE TRAIN FRONT GEARCASE INTERNALS - R11HR76AG / AR (49RGRGEARCASE1332829)

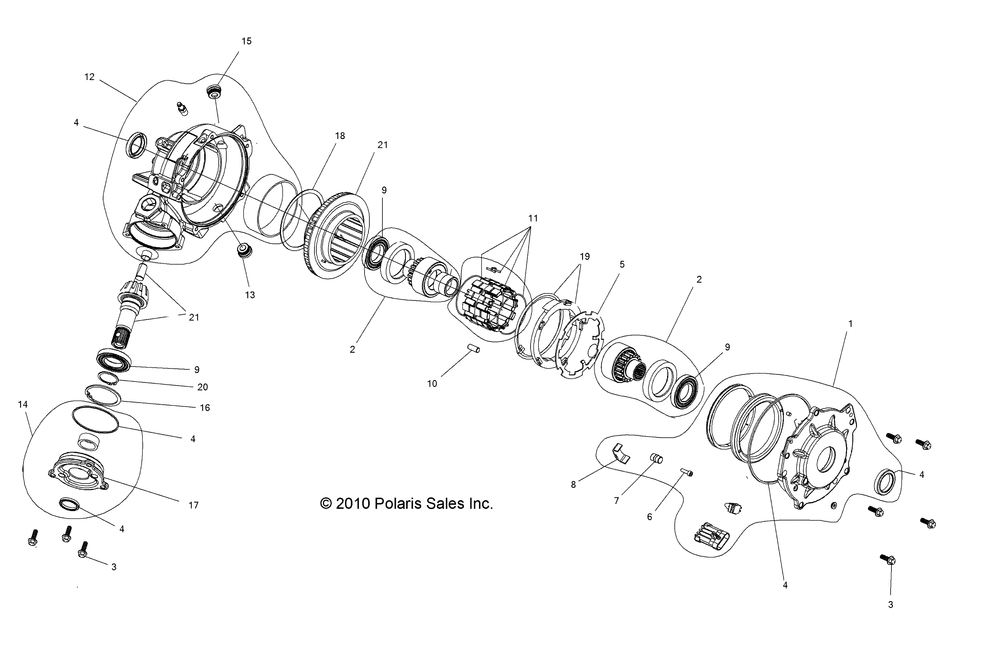

DRIVE TRAIN FRONT GEARCASE INTERNALS - R11HR76AG / AR (49RGRGEARCASE1332829)
№ Наименование Примечание Кол-во
ASM-GEARCASEFRONT 1
1 ASM-COVEROUTPUT [INCL. CONNECTOR ASSEMBLY OUTPUT COVER PLASTIC CLIP THRUST BUTTON ASM. 4WD COIL THRUST PLATE O-RING GROMMET SCREW OIL SEAL DOWEL PINS HEAT SHRINK TUBING] 1
2 KIT-OUTPUT HUBOST [INCL. HUB ASM. FEMALE HUB ASM. MALE] 1
3 KIT-BOLT [Incl. All Bolts] 1
4 KIT-REPAIRSEAL [Incl. All Seals O-Rings} 1
4 KIT-REPAIRSEAL6203-9U-114 [INCL. ALL SEALS] 1
5 PLATE-ARMATURE 1
6 SET-SCREWtahos_10-14 W/NYLOK 1
7 ASM-THRUST BUTTON [Incl. Seal] 1
8 PLATE-THRUSTDU 1
9 BEARING 1
10 KIT-ROLLER (20) [Incl. Complete Roll Set] (20 per pack) 1
11 ASM-ROLL CAGEZN W/ROLL CAGE & SPRING WIRE FOR H-CLIP 1
12 ASM-GEARCASE [Incl. Bushings Seal Vent Plugs] 1
13 ASM-PLUGDRAINMAGNETIC 1
14 ASM-INPUT COVER [Incl. Bushing O-Ring Seal] 1
15 PLUG-OIL FILL 3/4-16 HOLLOW 1
16 RING-RETAININGINTRNL5000-218 1
17 COVER-INPUT 1
18 SPACER-RING GEAR 1
19 KIT-SPRING W/TORSION SPRING & SPRINT RETAINER ASSY 1
20 RING-RETAININGEXTERNALBOW 1
21 ASM-RING & PINION GEARNON ADC [INCL. RING GEAR SUB ASM. PINION GEAR DOWEL PIN] 1
