| № | Наименование | Примечание | Кол-во |
|---|---|---|---|

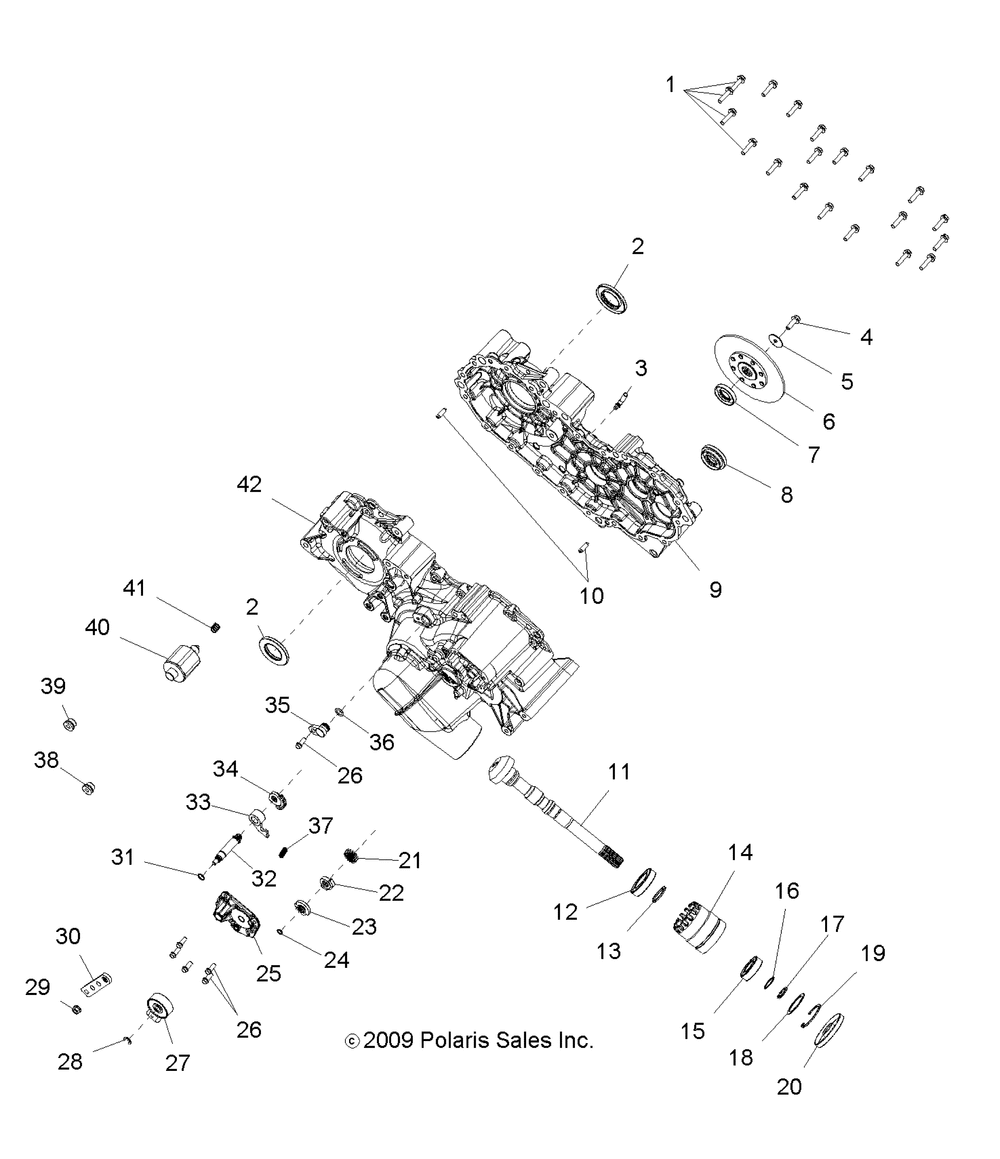

| ASM-GEARCASEMAIN | 1 | ||
| 1 | SCR-TAPPING HEX WASHER HD 5/16 | 20 | |
| 2 | SEAL TRIPLE LIP 40 X 70 X 7 | 2 | |
| 3 | TUBE-VENT90-1/4" HOSE | 1 | |
| 4 | SCREW | 1 | |
| 5 | WASHER-FENDER5/16-1.25 | 1 | |
| 6 | SUBASSY-BRAKE HUB | 1 | |
| 7 | SEAL-TRIPLE LIP | 1 | |
| 8 | SEAL | 1 | |
| 9 | COVERLHMACH | 1 | |
| 10 | PIN DOWEL 5/16 X 1.0 | 2 | |
| 11 | GEAR13TSNORKEL | 1 | |
| 12 | BEARING BALL | 1 | |
| 13 | RINGRETAINING | 1 | |
| 14 | TUBE SNORKLE MACH | 1 | |
| 15 | BEARING | 1 | |
| 16 | SHIM 1.180 X .995 | 1 | |
| 17 | RING SNAP | 1 | |
| 18 | SHIM 2.040 OD X 1.630 ID | 1 | |
| 19 | RINGRETAININGBASICINTRNL2.047 | 1 | |
| 20 | SEAL-TRIPLE LIP 25X80X10 | 1 | |
| 21 | GEAR-SECTOR16T | 1 | |
| 22 | SPACER | 1 | |
| 23 | Star Detent | 1 | |
| 24 | O-RING | 1 | |
| 25 | COVERGEARCASE | 1 | |
| 26 | SCREWTAPPINGHEXHEAD1/4-20X.75 | 6 | |
| 27 | SWITCH-ROTARY6 PIN [GEAR POSITION] | 1 | |
| 28 | RING-RETAINING | 1 | |
| 29 | NUT-LOCK HEX FLANGE NYLON 5/16 | 1 | |
| 30 | Bellcrank | 1 | |
| 31 | O-RING | 1 | |
| 32 | SHAFT-SHIFT | 1 | |
| 33 | PAWL-DETENT | 1 | |
| 34 | GEAR-SECTOR31T-CUT TO 11T | 1 | |
| 35 | SENSOR-SPEEDTRANS | 1 | |
| 36 | O-RING -113 | 1 | |
| 37 | SPRING-COMPRESSION | 1 | |
| 38 | PLUG-HEXHOLLOW WITH O-RING | 1 | |
| 40 | SOLENOID | 1 | |
| 41 | SPRINGCOMPRSSN.54ODX.44IDX.05 | 1 | |
| 42 | CASERHMACH | 1 |
