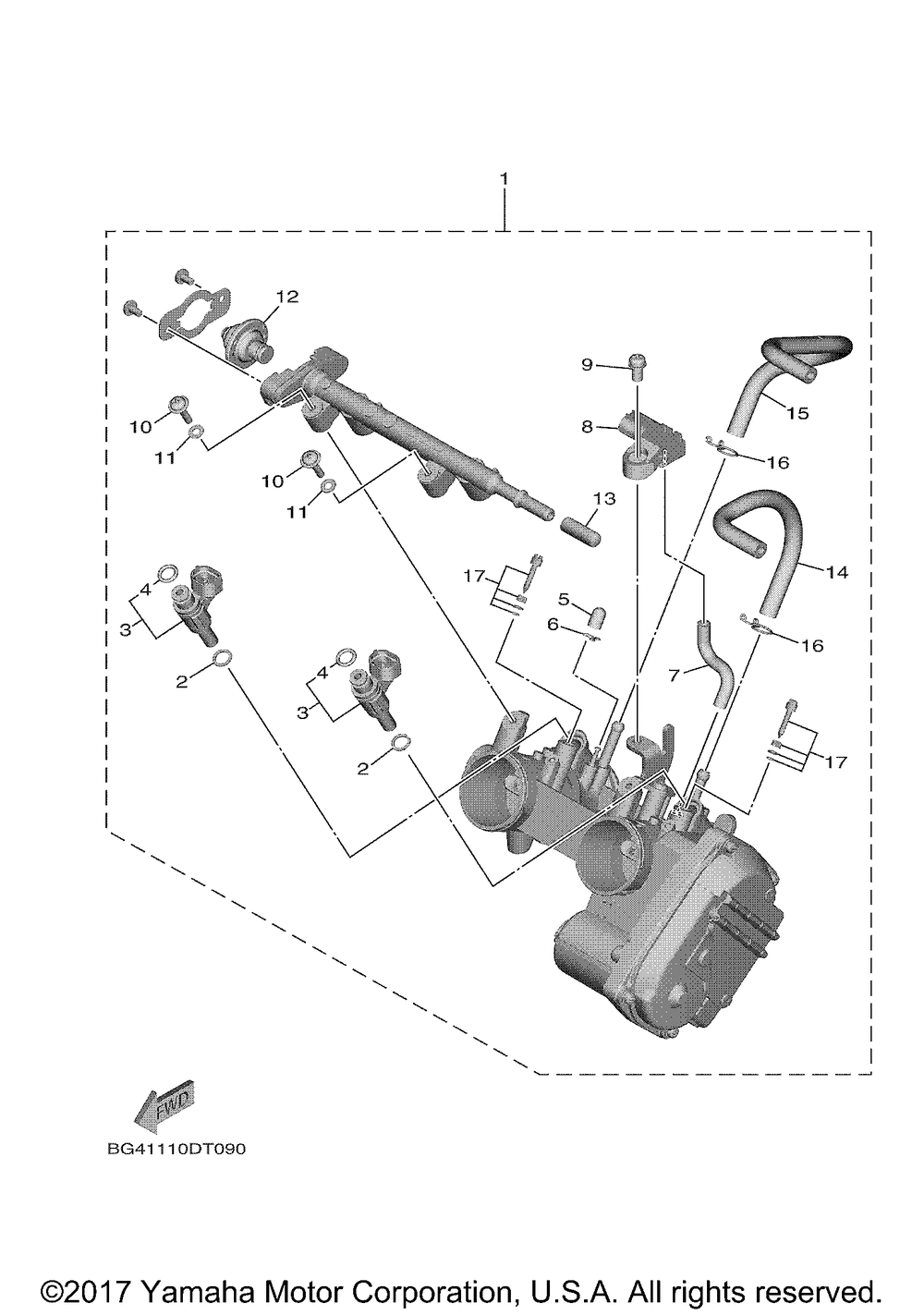

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | THROTTLE BODY ASSY | 1 | |
| 2 | RUBBER INJECTOR | 2 | |
| 3 | INJECTOR | 2 | |
| 4 | O-RING | 1 | |
| 5 | CAP | 1 | |
| 6 | CLIPPIPE | 1 | |
| 7 | HOSE | 1 | |
| 8 | SENSOR PRESSURE | 1 | |
| 9 | SCREW | 1 | |
| 10 | BOLT 1 | 2 | |
| 11 | GASKET | 2 | |
| 12 | DAMPER | 1 | |
| 13 | CAP | 1 | |
| 14 | PIPE | 1 | |
| 15 | PIPE | 1 | |
| 16 | CLIP | 2 | |
| 17 | PILOT SCREW SET | 2 |
