Evinrude 300 E300DCXAAD 300 E300DCXAAD 02-4_EMM SENSORS IGNITION COILS & SPARK PLUGS

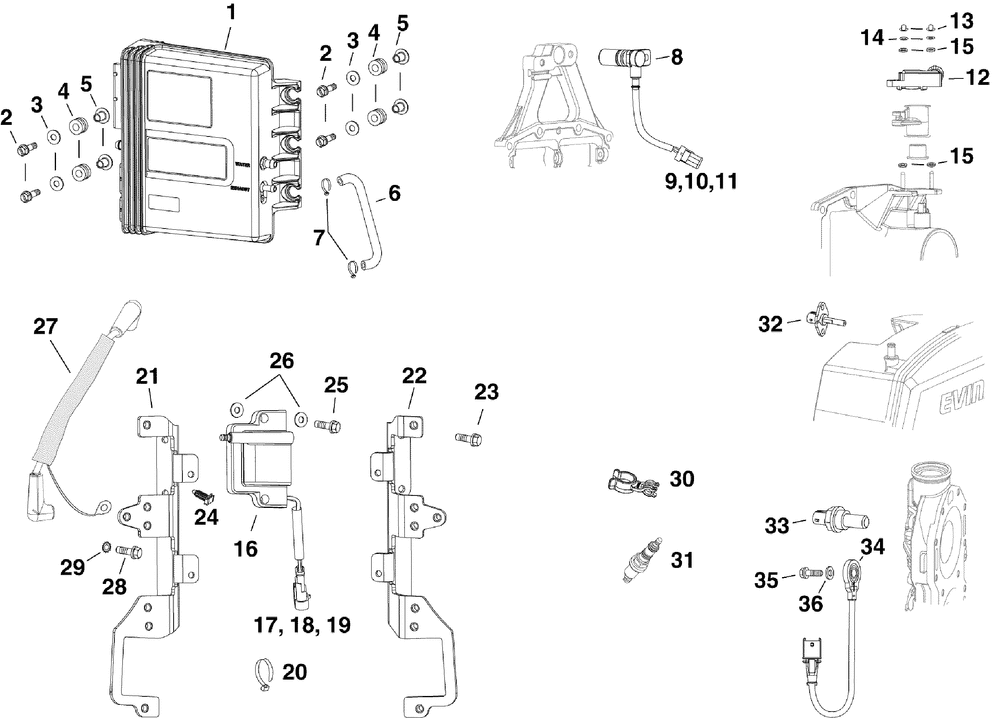

02-4_EMM SENSORS IGNITION COILS & SPARK PLUGS
№ Наименование Примечание Кол-во
NS TUBINGCONVOLUTED 2
1 EMM AYBAT R-OILER 3.4 L A Suffix models ONLY Call dealer support services 1
1 EMM AY115-300HP 3.3 L A Suffix models ONLY Call dealer support services 1
1 EMM AY2.6-3.4L 3.3 AND 3.4 L B Suffix and newer models ONLY Call dealer support services 1
2 SCREW 4
3 WASHER Negative battery stud to center frame 4
4 ISOLATOR Fuse & Relay bracket mounting 4
5 SPACERFLANGED 4
6 HOSE 1
7 TIE STRAP 100PK (100 per pack) 2
8 SENSOR AY CPS 1
9 CONTACTTAB 2
10 SEALWIRE 2
11 CONN3 POSN CAP Water pressure 1
12 KIT TPS SENSOR See "INTAKE MANIFOLD ASSEMBLY" 1
13 NUT PUSH 2
14 WASHER 2
15 WASHER 4
16 COIL AYIGNITION 6
20 TIE STRAP Capacitor to baffle 1
21 BRACKET AY 1
22 BRACKET AY 1
23 SCREW 8
24 CLIPMOUNTING 4
25 SCREWSHOULDER 12
26 WASHERRUBBER 24
27 LEAD AYH/T-RFI 6
29 LOCKWASHER (005 per pack) 2
30 CLIPHI-TEN LEADS Oil tank vent hose to VST water hose 6
31 SPARK PLUGQC8WEP (004 per pack) 6
32 SENSORAIR TEMP Intake air 1
33 SENSORENGINE TEMP 2
34 SENSOR AY KNOCK 2
35 SCREW 2
36 WASHER 2
