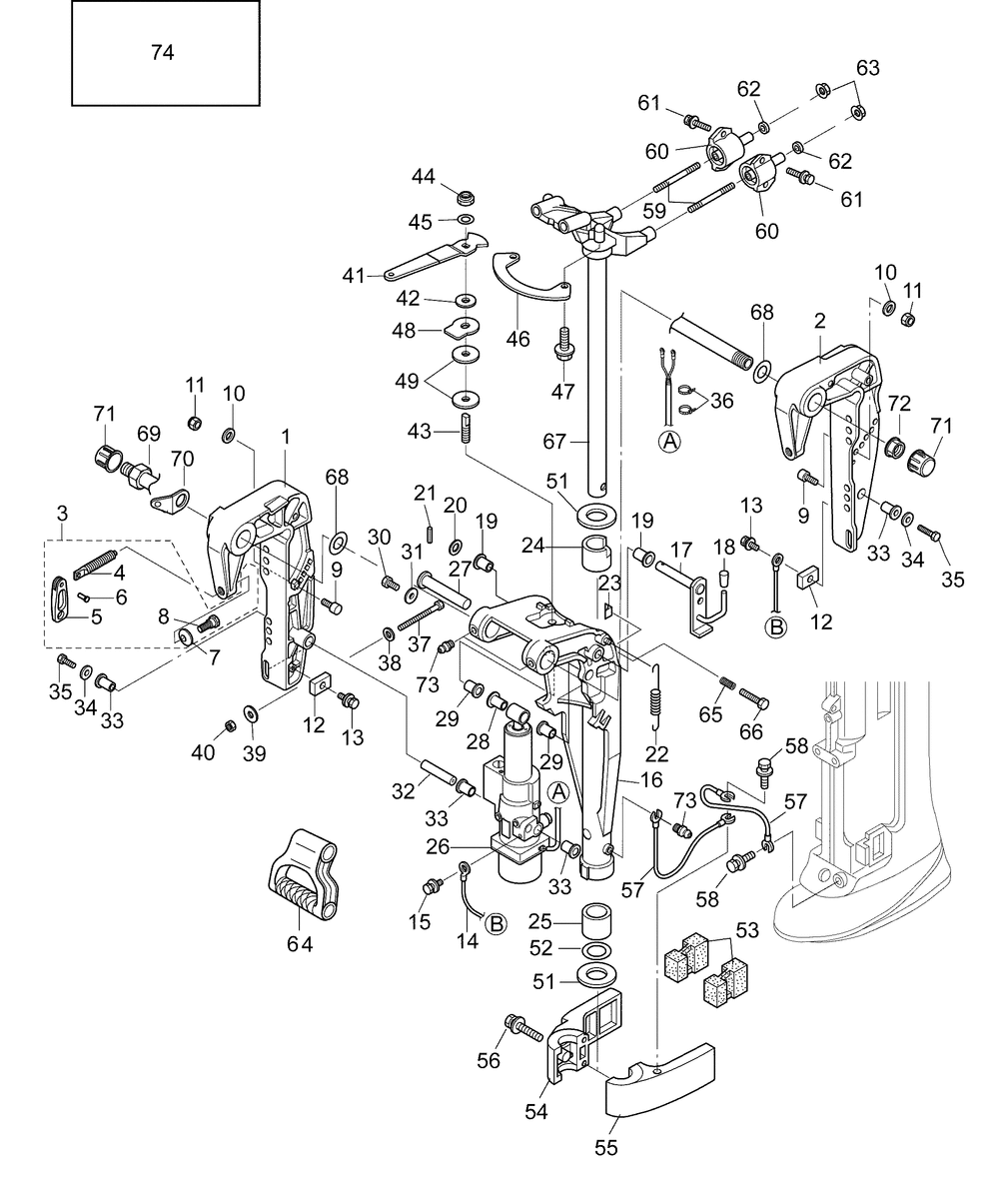

16-4_STERN & SWIVEL BRACKET (PGL TPL MODELS)

№	Наименование	Кол-во
1	CLAMP BRCKT PTT-R Starboard Graphite	1
2	CLAMP BRCKT PTT-L Port Graphite	1
3	CLAMP SCREW KIT Graphite	2
4	CLAMP SCREW	1
5	CLAMP SCREW HANDLE	1
6	RIVET	1
7	CLAMP SCREW PAD (010 per pack)	1
8	SHOULDER BOLT	1
9	TRIM LOCK PIN	2
10	WASHER	2
11	NYLON NUT	2
12	ANODE	2
13	BOLT	2
14	GROUND	1
15	BOLT	1
16	SWIVEL BRACKET ASY Graphite	1
17	TILT STOPPER	1
18	TILT STOPPER GRIP	1
19	COLLAR (010 per pack)	2
20	WASHER EL PL PX	1
21	SPRING PIN	1
22	TILT STOP SPRING	1
23	FRICTION PIECE	1
24	BUSHING	1
25	BUSHING	1
26	PT ASSY Graphite	1
27	CYL PIN (UPPER)	1
28	BUSHING	1
29	BUSHING	2
30	BOLT	1
31	WASHER	1
32	CYL PIN (LOWER)	1
34	WASHER (010 per pack)	2
35	BOLT	2
36	BAND	2
37	BOLT TPL TPX	4
38	WASHER	4
39	WASHER	4
40	NYLON NUT	4
41	FRICTION LEVER TPL TPX	1
42	WASHER TPL TPX	1
43	BOLT TPL TPX	1
46	PLATE TPL TPX	1
47	BOLT	2
48	WASHER TPL TPX	1
49	DISC TPL TPX	2
51	THRUST PLATE UPPER	2
52	O-RING (010 per pack)	1
53	RUBBER MOUNT LOWER	2
54	MOUNT BRACKET (R) Starboard Graphite	1
55	MOUNT BRACKET (L) Port Graphite	1
56	BOLT	2
57	GROUND STRAP Drive Shaft Housing - Mount Bracket	2
59	STUD	2
60	RUBBER MOUNT UPPER	2
61	BOLT	4
63	NUT	2
64	CARRYING HANDLE	1
65	FRICTION SPRING (010 per pack)	1
66	BOLT	1
67	STEERING SHFT ASSY Graphite	1
68	WASHER Nylon?	2
69	SHAFT AYSWVL BRKT Bracket Bolt	1
70	PLATE	1
71	CAP NUT TPL TPX (010 per pack)	2
72	NYLON NUT	1
73	GREASE FITTING	3
74	RIGGING BOLT SET TPL TPX	1
