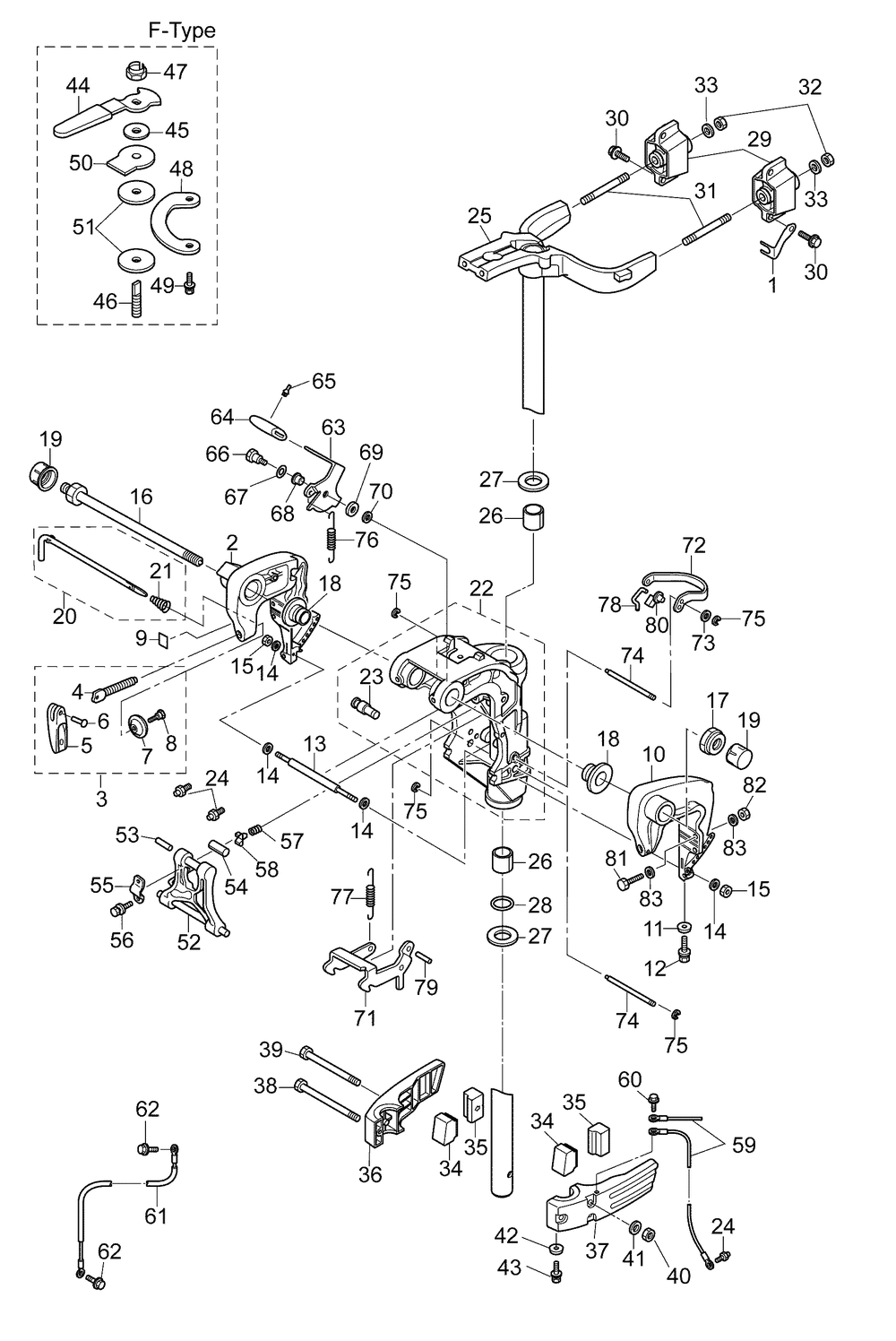

16-4_STERN & SWIVEL BRACKET (MANUAL TILT)

№	Наименование	Кол-во
1	LOCK PLATE	1
2	CLAMP BRACKET (R) Starboard	1
3	CLAMP SCREW KIT	2
4	CLAMP SCREW	1
5	CLAMP SCREW HANDLE	1
6	RIVET	1
7	CLAMP SCREW PAD (010 per pack)	1
8	SHOULDER BOLT	1
9	CO-PILOT DECAL R TE Models	1
10	CLAMP BRACKET (L) Port	1
11	ANODE	1
12	BOLT	1
13	DISTANCE PIECE	1
14	WASHER	2
15	NUT Use with extention kit	2
16	SHAFT AYSWVL BRKT Bracket Bolt	1
17	NYLON NUT	1
18	BUSHING	2
19	CAP NUT TPL TPX (010 per pack)	2
20	THRUST ROD ASSY	1
21	SPRING THRUST ROD	1
22	SWIVEL BRACKET ASY	1
23	PIN	1
24	GREASE FITTING	3
25	STEERING SHFT ASSY	1
26	BUSHING	2
27	THRUST PLATE UPPER	2
28	O-RING	1
29	RUBBER MOUNT UPPER 15 in. shaft	2
30	BOLT	4
31	STUD	2
32	NYLON NUT	2
33	WASHER EL PL PX	2
34	DAMPER (LOWER)	2
35	RUBBER MOUNT LOWER	2
36	MOUNT BRACKET (R) Starboard	1
37	MOUNT BRACKET (L) Port	1
38	BOLT	1
39	BOLT TPL TPX	2
41	WASHER	3
44	FRICTION LEVER TPL TPX	1
45	WASHER TPL TPX	1
46	BOLT TPL TPX	1
47	NYLON NUT	1
48	PLATE R TE	1
49	BOLT	2
50	WASHER TPL TPX	1
51	DISC TPL TPX	2
52	TILT STOPPER	1
53	SPRING PIN	1
54	BUSHING	1
56	BOLT All	2
57	FRICTION SPRING	1
58	SETTING PIECE	1
59	GROUND	1
60	BOLT	2
62	BOLT	2
63	REVERSE LOCK LEVER	1
64	REV LCK LEVER GRIP	1
65	STOPPER	1
66	SHOULDER BOLT	1
67	WASHER	1
68	BUSHING	1
69	WASHER EL PL PX R	1
70	WASHER R Models	1
71	REVERSE LOCK	1
72	REVERSE LOCK ARM	1
73	COLLAR	1
74	REVERSE LOCK SHAFT	2
75	E-RING	4
76	REV LCK LVR SPRING	1
77	REV LOCK SPRING	1
78	REVERSE LOCK LINK	1
79	SPRING PIN	1
80	ROD SNAP	1
