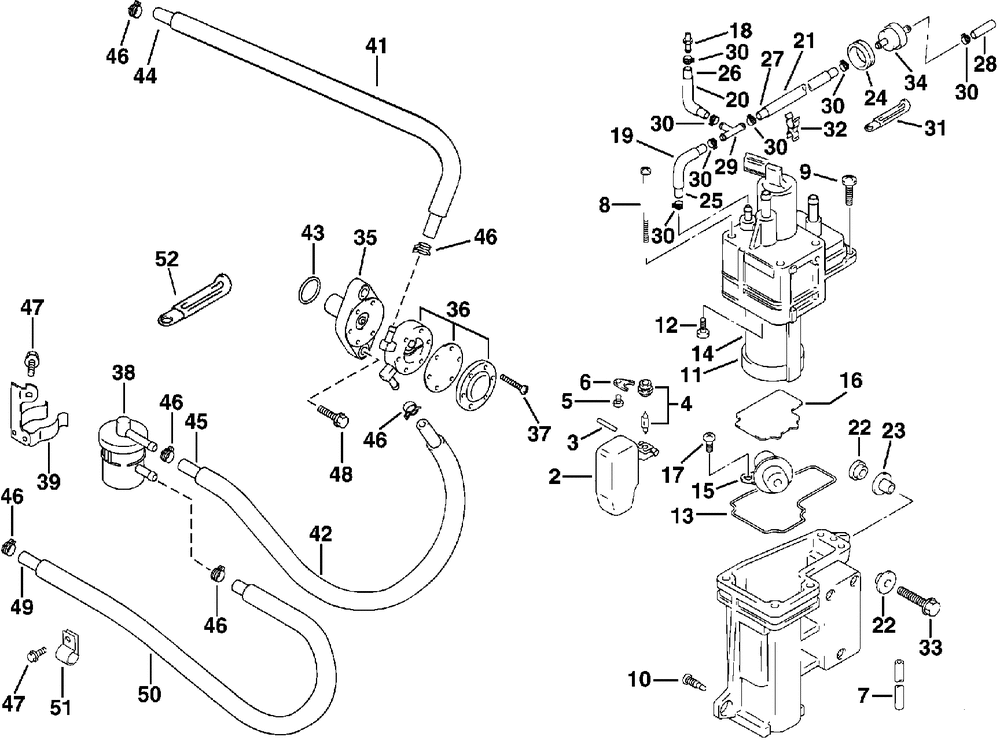

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| SEPARATOR AYVAPOR | 1 | ||
| 2 | FLOAT | 1 | |
| 3 | PIN | 1 | |
| 4 | VALVENEEDLE | 1 | |
| 5 | SCREW | 1 | |
| 6 | Детать | 1 | |
| 7 | HOSE | 1 | |
| 8 | Детать | 3 | |
| 9 | SCREW | 2 | |
| 10 | SCREW | 1 | |
| 11 | FILTERFUEL PUMP | 1 | |
| 12 | SCREW | 1 | |
| 13 | SEAL | 1 | |
| 14 | PUMPFUEL(HI-PSI) | 1 | |
| 15 | REGULATOR | 1 | |
| 16 | PLATE | 1 | |
| 17 | SCREW | 2 | |
| 18 | JETEVAPORATION | 1 | |
| 19 | SLEEVE | 1 | |
| 20 | SLEEVE | 1 | |
| 22 | WASHER6X8X19X1.6 | 6 | |
| 23 | CUSHION | 3 | |
| 24 | Детать | 1 | |
| 29 | JOINT 3 WAY | 1 | |
| 30 | CLIP | 7 | |
| 31 | CLAMPL:65 | 1 | |
| 32 | CLAMP | 1 | |
| 33 | BOLT | 3 | |
| 34 | FILTERFUEL | 1 | |
| 35 | FUEL LIFT PUMP | 1 | |
| 36 | DIAPHRAGM SET | 1 | |
| 37 | Детать | 6 | |
| 38 | FUEL FLTR 25-140HP | 1 | |
| 39 | BRACKET | 1 | |
| 41 | PROTECTORFUEL HSE | 1 | |
| 42 | PROTECTOR | 1 | |
| 43 | ORING | 1 | |
| 44 | HOSEPUMP-VST | 1 | |
| 46 | CLAMP | 6 | |
| 47 | BOLT | 2 | |
| 48 | BOLT | 2 | |
| 49 | HOSEFUEL CONN | 1 | |
| 51 | CLAMP | 1 |
