Evinrude 40 E40PL4SSC 4-Stroke, Elec Start, TNT, 20 IN. shaft 40 E40PL4SSC 4-Stroke, Elec Start, TNT, 20 IN. sha GEARCASE

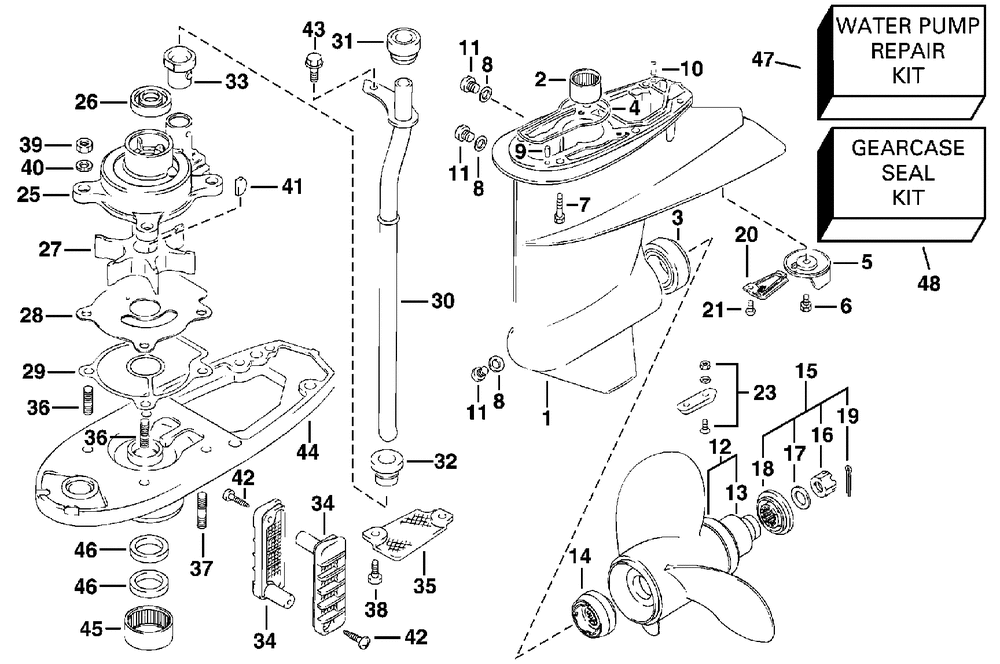

GEARCASE
№ Наименование Примечание Кол-во
1 G-CASE & BRG(BLUE) 1
2 BEARING ROLLER 1
3 BEARING ROLLER 1
4 SEAL RING (Contents of Gearcase Seal Kit.) 1
5 TRIM TAB 1
6 BOLT 1
7 BOLT 8X45 6
8 GASKET (WASHER) (Contents of Gearcase Seal Kit.) (010 per pack) 3
9 PIN 1
10 PIN 1
11 PLUGDRAIN10X7.5 3
12 PROPAL 12X10 (Aluminum.) 1
12 PROP AL 11-1/2X9 (Aluminum.) 1
12 PROPAL 11.8X11 (Aluminum.) 1
12 PROPAL 11.6X12 (Aluminum.) 1
12 PROPAL 11.6X13 (Aluminum.) 1
12 PROPAL 11.6X14 (Aluminum.) 1
12 PROP AL 11-1/4X15 (Aluminum.) 1
12 PROP AL 11-1/8X16 (Aluminum.) 1
12 PROPSST 11-1/8X13 (Stainless Steel.) 1
12 PROPSST 11-1/8X14 (Stainless Steel.) 1
12 PROPSST 11X15 (Stainless Steel.) 1
12 (Stainless Steel.) 1
13 BUSHING 1
14 THRUST BUSHING 1
15 PROPELLER NUT KIT 1
16 PROP NUT 18MM 1
17 WASHER 1
18 SPACER 1
19 COTTER PIN (010 per pack) 1
20 COVERWATER TUBE (For Engines that are Mounted High on Transom.) 1
21 SCREW 1
23 ANODE KIT 1
25 IMPELLER HOUSING 1
26 SEAL 1
27 IMPELLER (Contents of Water Pump Repair Kit.) 1
28 PLATE (Contents of Water Pump Repair Kit.) 1
29 GASKET PUMP CASE (Contents of Gearcase Seal Kit. Contents of Water Pump Repair Kit. Contents of Powerhead Gasket Set.) 1
30 Детать 1
31 GROMMET 1
32 GROMMET 1
33 GROMMET (Contents of Water Pump Repair Kit.) 1
34 FILTERWATER 2
35 FILTER 1
36 STUD 2
37 STUD 2
38 SCREW5X12 2
39 NUT 4
40 WASHERLOCK 4
41 KEY (Contents of Water Pump Repair Kit.) 1
42 SCREW 2
43 BOLT6X15 1
44 D/S BRG HSG&SL AY 1
45 BEARING ROLLER 1
47 KITWTR PMP REPAIR 1
48 KIT AYG'CASE SEAL 1
