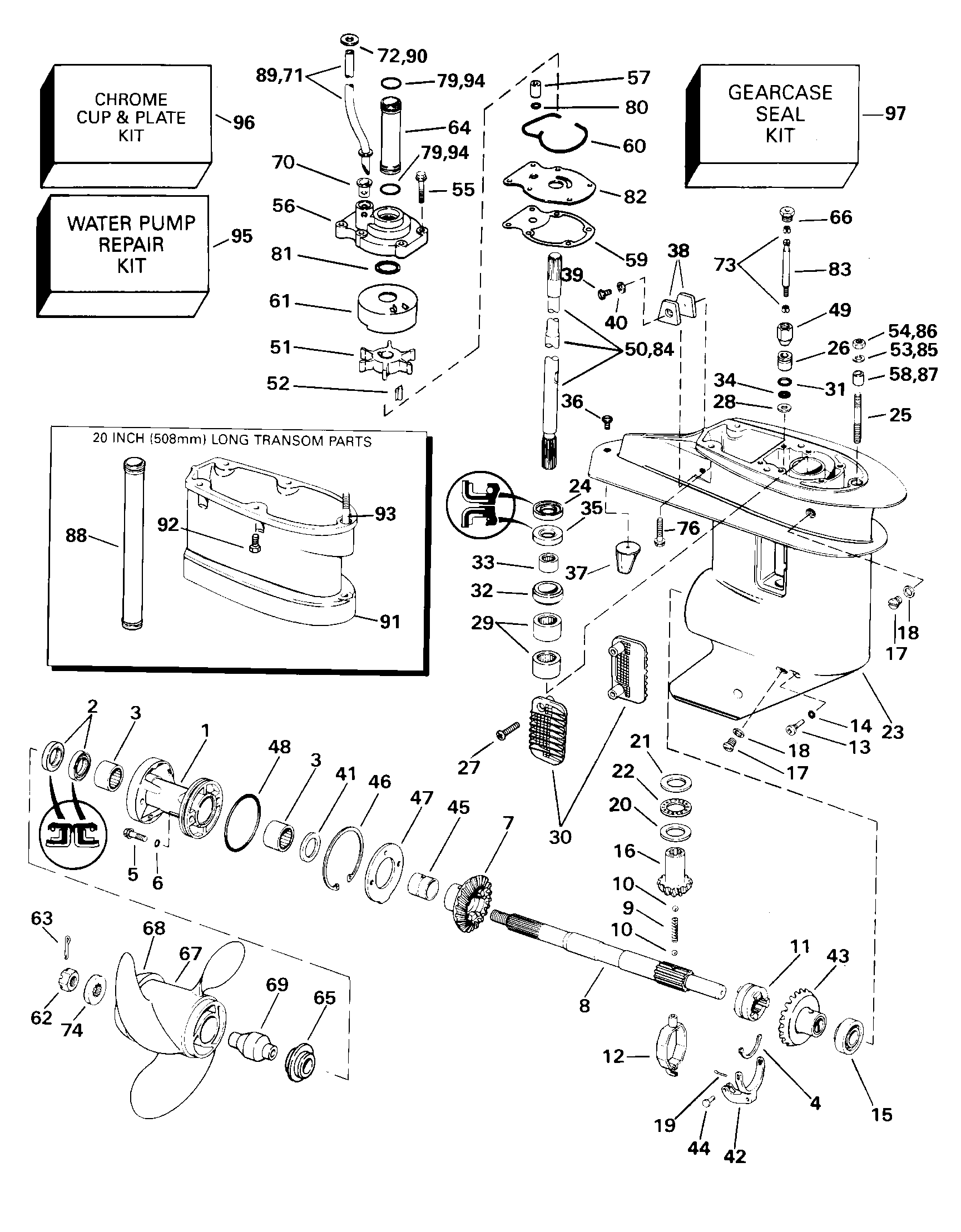

GEARCASE

Корзина пуста
Наименование Примечание Кол-во
RUBBER MOUNT 2
GASKET 1
RUBBER MOUNT 2
SHIFT ROD-LNG 1
1 PS BRG HSG&SEAL AY 1
2 OIL SEAL Contents of Gearcase Seal Kit (005 per pack) 2
3 BEARING AYNEEDLE 2
4 CRADLE-CLUTCH DOG 1
5 SST SCREW 2
6 WASHER 5PK (005 per pack) 1
7 GEARREV 13:28 1
8 SHAFT AYPROPELLER 1
9 SPRING 1
10 BALL DETENT (005 per pack) 2
11 SHIFTER 3-LUG 1
12 YOKE & CONNECTOR 1
13 PIVOT PIN & WASHER 1
15 ROLLER BRG AY 1
16 PINION GEAR 1
17 DRAIN FILL PLG 10P (010 per pack) 2
18 WASHER-10 PK (010 per pack) 1
19 COTTER PIN 1
20 THRUST WASHER 1
21 THRUST WASHER-UPR 1
22 THRUST BRG AY 1
24 OIL RETAINER Contents of Gearcase Seal Kit 1
26 BUSHING 1
27 SCREW (005 per pack) 2
28 WASHER Contents of Gearcase Seal Kit 1
31 O RING Contents of Gearcase Seal Kit 1
32 BEARING HSG DSHAFT 1
33 BEARING AY 1
34 O RING Contents of Gearcase Seal Kit (005 per pack) 1
35 OIL RET BRG HSG DS Contents of Gearcase Seal Kit 1
36 SCREW 1
38 KIT AYANODE 1
39 SCREW 1
40 LOCKWASHER 1
41 FF THRUST WASHER 1
42 LEVERSHIFT 1
43 GEAR & BUSHINGFWD Ratio 1
44 PIN 1
45 FF BUSHING REV GR 1
46 FF RETAINING RING 1
47 FF RETAINER PLATE 1
48 O-RING Included in Powerhead Gasket & Seal Kit (005 per pack) 1
50 DRIVESHAFT 15" 1
51 IMP & KEY 1
52 KEYIMPELLER-BLK 1
53 WASHER 1
54 NUT 1
55 SCREW 6
56 IMP HSG & BUSH AY 1
57 BUSHING 1
58 BUSHING 1
59 GASKET 1
60 SEAL Contents of Gearcase Seal Kit 1
61 CUP-CHROME Optional accessory 1
61 CUP IMP HSG 1
62 FF PROP NUT 1
63 FF COTTER PIN 5PK (005 per pack) 1
64 SPACER STD/SHORT 1
65 BUSHINGTHRUST 1
66 CONNCTRSHFT ROD 1
68 CONVERGING RING 1
69 BUSHING AY 1
70 GROMMET (005 per pack) 1
73 KEEPER 2
74 SPACER PROP NUT 1
76 SCREW 4
79 O RING 2
81 O RING Contents of Gearcase Seal Kit 1
82 PLATE Optional accessory 1
82 PLATE 1
83 SHIFT ROD-LOWER 1
85 LOCKWASHER 1
88 SPACER LONG 1
92 SCREW 4
95 WTR PUMP KIT 1
97 SEAL KIT-G-CASE 1
