Evinrude 225 E225FPXEEO 225 E225FPXEEO ELECTRICAL SYSTEM

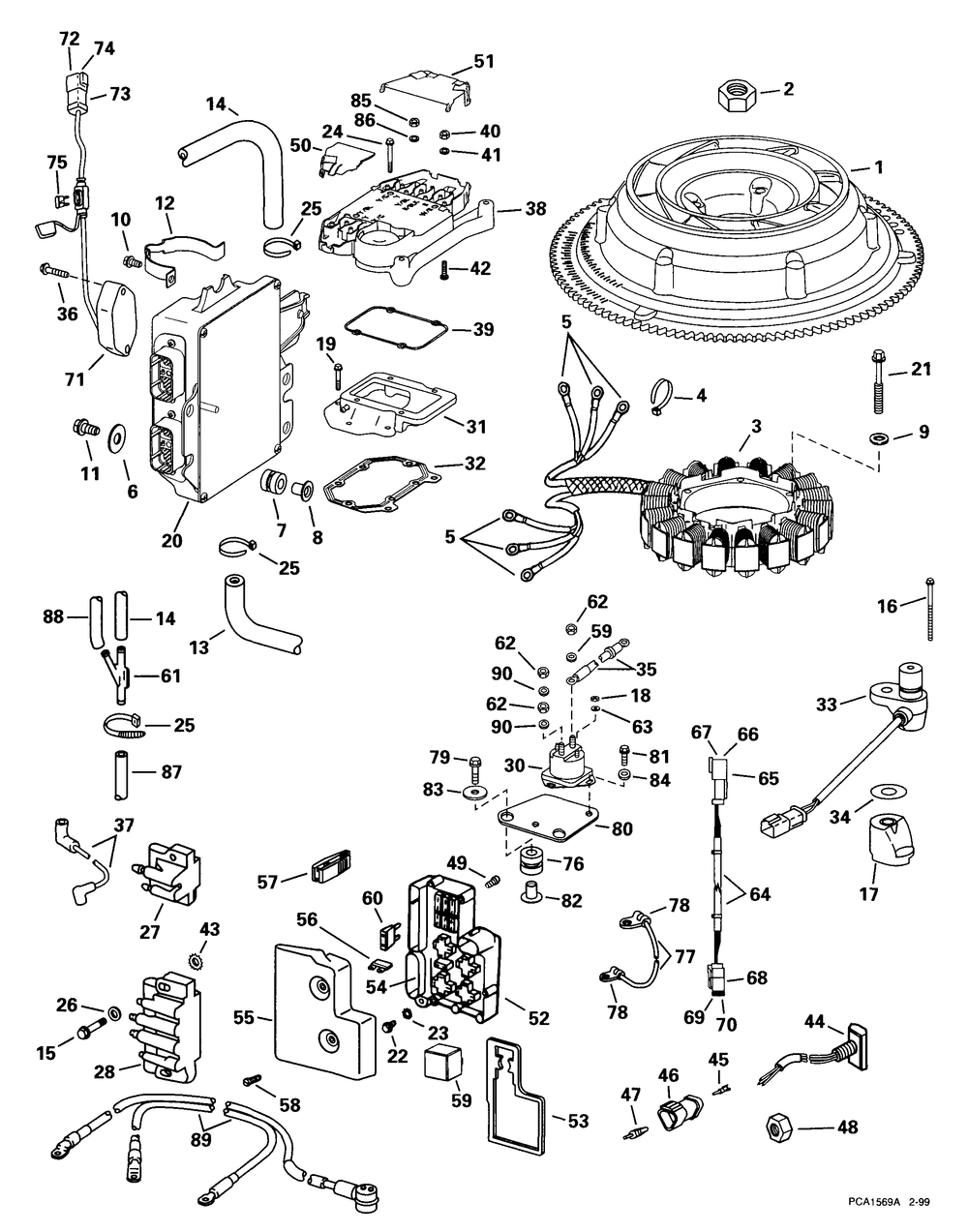

ELECTRICAL SYSTEM
№ Наименование Примечание Кол-во
1 Деталь 1
2 NUT 1
3 Деталь 1
4 TIE STRAP 100PK (100 per pack) 0
5 RING-TERMINAL tahos_10 6
6 WASHER Negative battery stud to center frame 4
7 ISOLATOR Fuse & Relay bracket mounting 4
8 SPACERFLANGED 4
9 LOCKWASHER Stator screw 6
10 SCREW 1
11 SCREW 5 PK (005 per pack) 4
12 CLAMP 1
13 HOSEWATER VST-EMM 1
14 HOSE "C" & "H" Suffix Models Only 1
15 SCREW 8
16 SCREW "C" Suffix Models Only 1
17 SPACER "C" Suffix Models Only 1
18 NUT.190X32 BRASS 2
19 SCREW 6
20 ECU'99 200-225HP "N" and "O" suffix models only This part must be ordered from Warranty/Technical Service Department. 1
20 "V" suffix models only This part must be ordered from Warranty/Technical Service Department. 1
21 SCREW 6
22 SCREW 1
23 LOCKWASHER (005 per pack) 1
24 SCREW1/4-20 4
27 Деталь 2
28 IGNITION COIL 2
29 LOCKWASHER 1
30 SOLENOID AY 1
31 ADPT/NIPL200-25FFI 1
32 GSKTRECT/REG H2O Included in Powerhead Gasket & Seal Kit 1
33 SENSOR&SHIM AYCPS 1
34 SHIM 0
35 FF CABLE AY 1
36 SCREW 2
37 LEAD AYH/T-SUPP 6
38 Деталь 1
39 SEAL "V" Suffix Models Only 1
40 NUT - X 2
41 WASHER Leads - X 2
42 "V" Suffix Models Only 11
44 SWITCH AYT&T 1
45 TERMINALPIN-10PK (010 per pack) 3
46 CONN3PIN RCPT 1
47 LOCKWEDGE-3P RCPT 1
48 NUT 1
49 SCREW 5
50 COVER Rectifier port - X 1
51 COVER Rectifier starboard - X 1
52 HSG&CVR AYFU&RLY 1
53 Деталь 1
54 GASKETCONNECTOR 1
55 COVER AYFUSE&RLY 1
56 MINIFUSE10AMP 5PK (005 per pack) 2
57 PULLERFUSE 2PK (002 per pack) 1
58 SCREW 2
59 RELAY AY 4
61 FITTINGTEE 30-DEG 1
62 NUT 3
63 LOCKWASHER 2
64 LEAD AY 1
65 CONN2PIN RCPT 1
67 LOCKWEDGE 2P RCPT 1
68 CONNECTOR 2 PIN 1
69 TERMINALDEUTSCH 2
70 LOCK WEDGE 1
71 Деталь 1
72 LOCKWEDGE-4P RCPT 1
73 CONN4PIN RCPT 1
75 MINIFUSE 20 AMP 1
77 Детать 1
78 TERMINALRING tahos_1/4 2
80 BRACKET 1
87 Детать 1
89 CABLE AYBATTERY 1
90 LOCKWASHER 3
