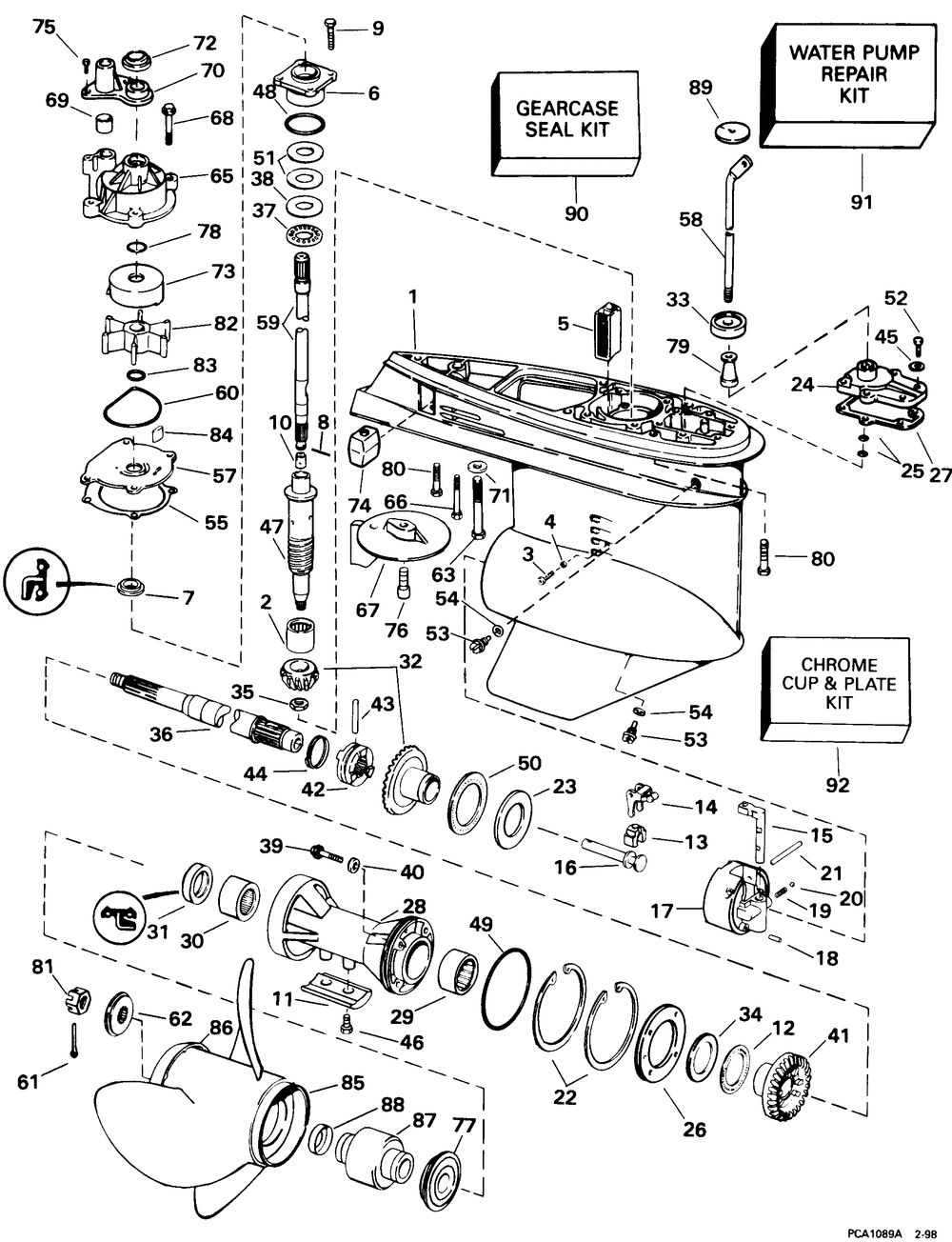

GEARCASE

Корзина пуста
Наименование Примечание Кол-во
1 Детать 1
2 NDLE BRGBH-1820 1
3 RETAINING SCREW 1
4 WASHER 5PK (005 per pack) 1
5 SCREEN-WTR INTAKE 1
6 DS BRG HSG&SEAL AY 1
7 SEAL DRIVESHAFT 1
8 PINROLL 1
9 SCREW Contents of GEARCASE SEAL KIT 4
10 RETAINERDR SFT 1
11 ANODE & INSERT AY 1
12 BEARING AYTHRUST 1
13 CRADLE-SHIFT 1
14 SHIFTER LEVER 1
15 DETENT 1
16 SHAFT-SHIFTER 1
17 BRG HGSPIN&SPRING 1
18 PIN 1
19 SPRING 1
20 BALL DETENT 1
21 PIN 1
22 RING 2
23 THRUST WASHER 1
24 COVER AYSHIFT ROD 1
25 O-RING (005 per pack) 2
26 PLATE 1
27 GASKET (Contents of GEARCASE SEAL KIT.) (005 per pack) 1
28 Детать 1
29 NEEDLE BRG 1
30 NEEDLE BRG AY 1
31 SEALOIL(1.125) 2
32 V4 GEARSET 13:26 Ratio 1
33 GROMMET EXH HSG 1
34 THRUST WASHER 1
35 NUT PINION 1
36 SHAFT AYPROPELLER 1
37 THRUST BRG AY 1
38 THRUST WASHER 1
39 SCREW (005 per pack) 4
40 WASHER DLR 5-PK (005 per pack) 1
41 GEARREVERSE V4 1
42 SHIFTER-CLUTCH DOG 1
43 PIN 1
44 SPRING 1
45 WASHER 4
46 SCREW 2
47 DRIVESHAFTLOWER 1
48 O-RING (Contents of GEARCASE SEAL KIT.) 1
49 O-RING Contents of Gearcase Seal Kit (010 per pack) 1
50 THRUST BRG AY 1
51 SHIM-PINION-003 0
51 SHIM-PINION-004 0
51 SHIM 005 0
52 SCREW (005 per pack) 6
53 DRAIN SCREW Contents of GEARCASE SEAL KIT 2
54 WASHER-10 PK (010 per pack) 1
55 GASKETWTR PMP 5PK Contents of GEARCASE SEAL KIT (005 per pack) 1
57 PLATEWATER PUMP Stainless 1
57 PLATE WATER PUMP Chrome 1
58 SHIFT ROD-LONG HL TSL Models Only 1
58 SHIFT ROD-X-LONG HX TSX Models Only 1
59 KITUPPER D/S-25" FCX . 1
59 UPPER D/S KIT 20" 1
60 SEAL 1
61 COTTER PIN (010 per pack) 1
62 SPACER (005 per pack) 1
62 KIT AYSPACER NUT 1
63 SCREW 1
65 HOUSING AYIMPLR Contents of Water Pump Repair Kit . 1
66 SCREW ANODE 1
67 TABTRIM-STD DE200 1
69 GROMMET 3.3 L models 1
70 COVERIMPELLER HSG 3.3 L models 1
71 WASHER 1
72 GROMMET 1
73 CUPIMP HOUSING Stainless 1
73 CUPIMP HSG-CHROME Chrome 1
74 ANODE&INSERT AY 1
75 SCREW 2
76 SCREW 1
77 BUSHINGTHRUST Renegade 1
77 BUSHINGTHRUST 1
78 O-RING (005 per pack) 1
79 SPACER-SHIFT ROD 25 30 in. Models 1
80 SCREW 5
81 PROP NUT 1
82 KIT AYIMPELLER (Contents of Water Pump Repair Kit.) 1
83 O RING 1
84 IMP KEY-WHITE 1
86 CONVERGING RINGV4 1
87 Детать 1
87 BUSHING AYPROP 1
88 SLEEVE 1
89 Детать 1
90 KIT AYSEAL-GC 1
91 KIT AYWATER PUMP 1
92 CUP & PLATE AY Optional 1
0435474 G/C AY*CV4&LV4 .50 Not Shown 1
