Evinrude 150 E150IXEUC 150 E150IXEUC CYLINDER & CRANKCASE

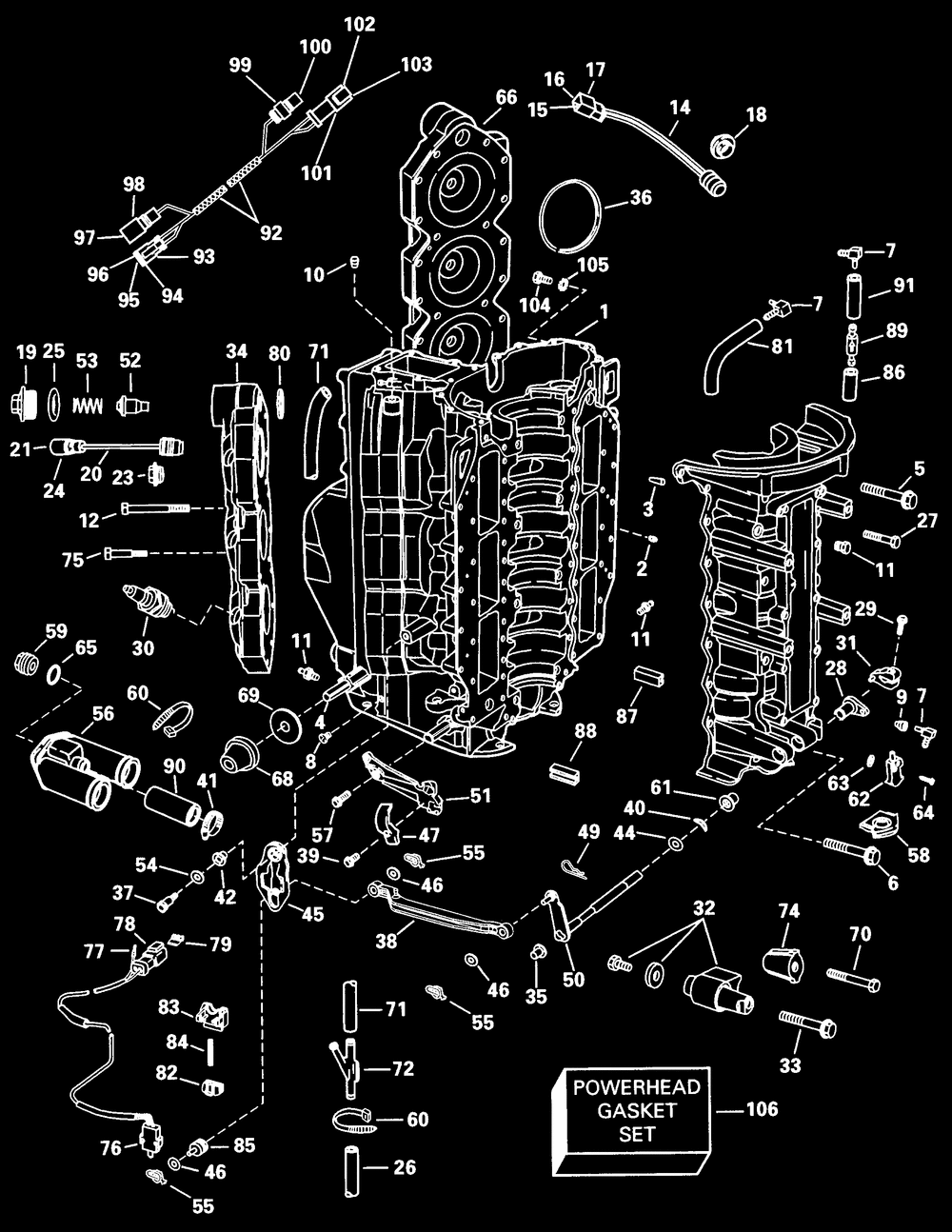

CYLINDER & CRANKCASE
№ Наименование Примечание Кол-во
1 CYL&CRKC 150FFI 1
2 DOWEL 3
3 PIN 4PK (004 per pack) 1
4 PINSPIROL 4
5 BOLT 6
6 SCREW 2
7 NIPPLE 2
8 SCREW AY See "Oil Recirculation System" 2
9 VALVE AYCHECK Cylinders 5 & 6 3
10 PLUG See "Oil Recirculation System" 1
11 NIPPLE STRAIGHT 2
12 SCREW 28
14 TEMPERATURE SENSOR Port - X 1
15 LOCKWEDGE 2P RCPT 1
16 TERMINALPIN-10PK (010 per pack) 2
17 CONN2PIN RCPT 1
18 COVER-TEMP.SWITCH 2
19 COVERTHERMOSTAT 2
20 SWITCH AYTEMP (Remote Control Models.) 1
21 PIN(10)44-100-1414 (010 per pack) 1
24 CONN1 PIN RCPT 1
25 O-RING (005 per pack) 2
27 SCREW 18
28 BUSH & ROD KEEPER 1
29 SCREW 1
30 SPARK PLG/S/B 2360 (006 per pack) 6
31 LEVER&PIN AYSHIFT 1
32 KIT AYUPPR MOUNTS 1
33 SCREW 2
34 KIT AYCYL HEAD 1
35 BUSHINGSHIFT ARM 1
36 O-RING CYL HD Included in Powerhead Gasket Set (005 per pack) 6
37 SCREW-THROTTLE CAM 1
38 LINKSHIFT LEVER 1
40 BOW WASHER 1
41 CLAMP 2
42 BUSHING 1
44 WASHER 1
45 LEVER AYSHIFT 1
46 WASHER 3
47 COVERTRUNNION 1
49 PIN-RETAINER 1
50 ARM&SHAFT AYSHIFT 1
51 BLOCKTRUNNION 1
52 THERMOSTAT AY 2
53 SPRINGTHERMOSTAT 2
54 WAVE WASHER 1
55 CLIP 10PK (010 per pack) 3
56 GROMMET AYEXH REL 1
58 SEALSHIFT ROD 1
59 PLUG&NOZZLE AY 1
60 TIE STRAP 100PK (100 per pack) 0
61 BUSHINGSHIFT SFT 1
62 NIPPLELOWER DRAIN 1
63 O-RING 1
64 SCREW 1
65 O RING 1
66 Деталь 1
68 MOUNT 4
69 WASHER 4
70 SCREW 1
72 FITTINGTEE 30-DEG 1
74 RETAINERUPR MOUNT 1
75 SCREW 12
76 SWITCH&CABLE AY 1
80 SEALTHERMOSTAT Included in Powerhead Gasket Set 2
82 BRACKETSLIDER 1
83 BRACKET SNAP 1
84 SPRING 1
85 PINSHIFT ASSIST 1
87 SEAL LWR CVR PORT (Included in POWERHEAD GASKET SET.) 1
88 SEAL LWR CVR STBD (Included in POWERHEAD GASKET SET.) 1
89 VALVE AYCHECK-INL 1
90 HOSE 1
92 CABLE AY-JUMPER 1
93 CONN2SKT PLG 1
94 SEAL2 LEAD PLUG 1
95 LOCKWEDGE-2S PLUG 1
96 TERMINALSKT-10PK (010 per pack) 2
99 CONN1 SKT PLUG 1
100 TERMSCKT (010 per pack) 1
104 SCREW 1
105 LOCKWASHER (005 per pack) 1
106 GASKET SET PWHD "V" Suffix Models 1
0343928 SCREW AY See "Oil Recirculation System" 1
