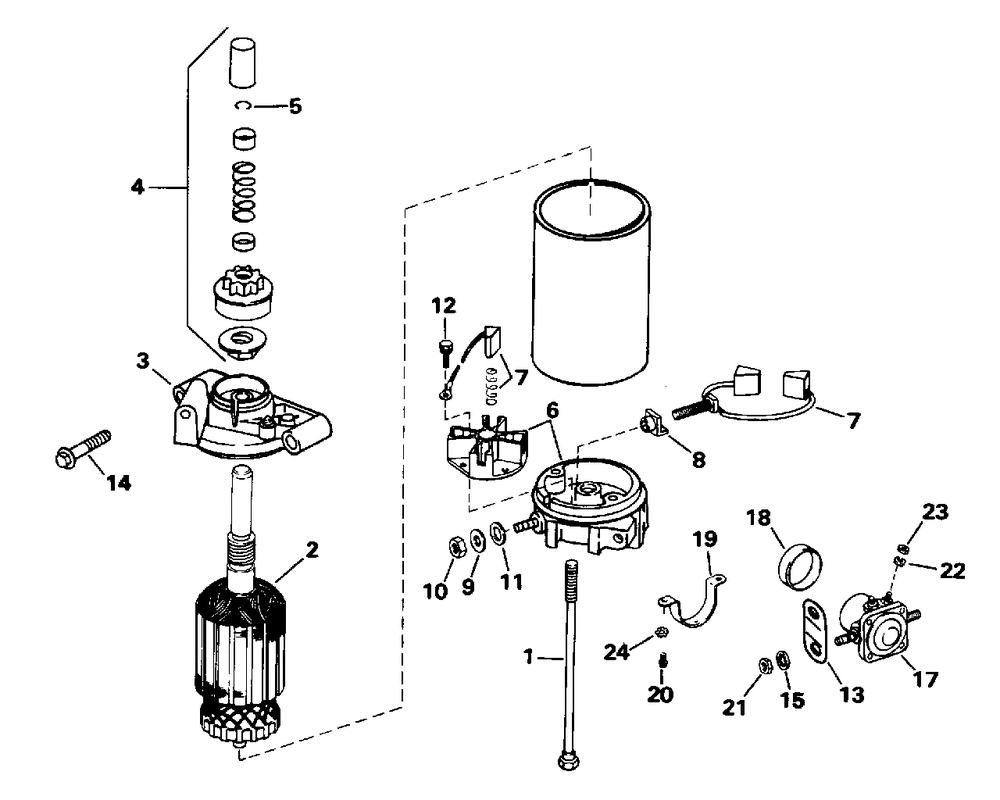

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | Детать | 1 | |
| 2 | With Snap Ring Starter Drive Retention | 1 | |
| 3 | Детать | 1 | |
| 4 | KITSTARTER DRIVE | 1 | |
| 5 | RINGSTARTER DRIVE | 1 | |
| 6 | Детать | 1 | |
| 7 | BRUSH & SPRG | 1 | |
| 8 | BUSHING | 1 | |
| 9 | LOCKWASHER | 1 | |
| 10 | NUT | 1 | |
| 11 | WASHER | 1 | |
| 12 | Детать | 2 | |
| 13 | BUS BAR&TUBING AY | 1 | |
| 14 | SCREWM8X1.25X45 | 2 | |
| 15 | LOCKWASHER | 3 | |
| 17 | SOLENOID AYSTART | 1 | |
| 18 | SLEEVE | 1 | |
| 19 | CLAMP | 1 | |
| 20 | SCREW | 2 | |
| 21 | NUT | 3 | |
| 22 | WASHER LOCK | 2 | |
| 23 | NUT.190X32 BRASS | 2 | |
| 24 | LOCKWASHER (005 per pack) | 1 | |
| 0584818 | MOTOR AY STARTER Not Shown | 1 |
