Evinrude 40 E40DPLINC 40 E40DPLINC SWIVEL BRACKET (DP DS DT)

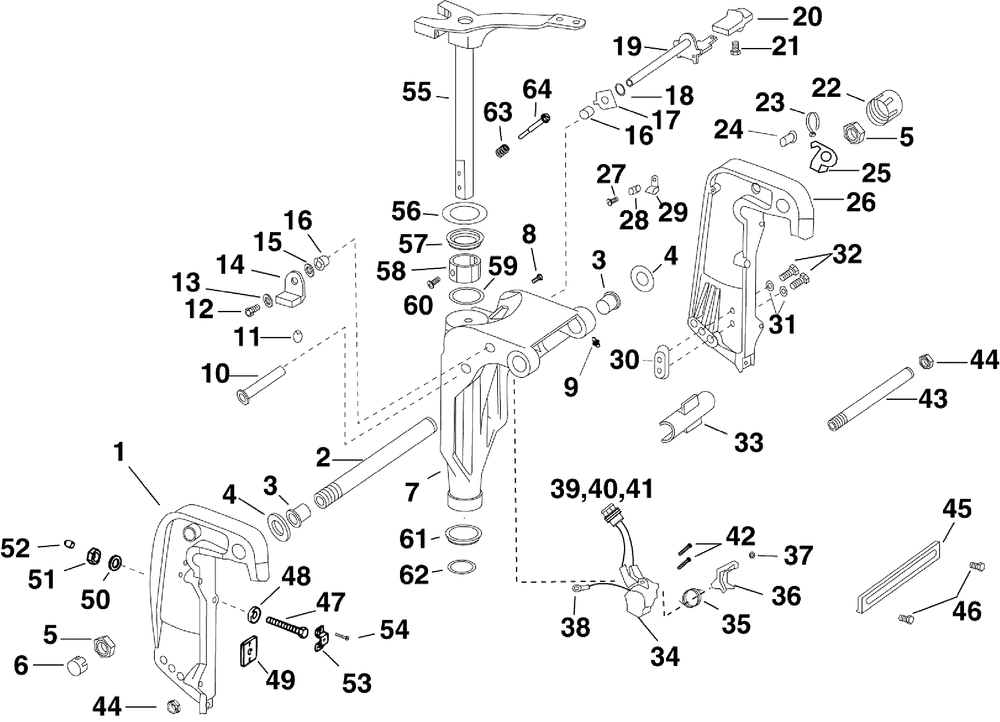

SWIVEL BRACKET (DP DS DT)
№ Наименование Примечание Кол-во
1 STRN BRKTSTBD 1
2 TUBE TILT SST 1
3 BUSHING SWIV BRKT 2
4 THRUST WASHER 2
5 NUTLOCK 2
6 CAPSTEER-TUBE 1
7 BRACKETSWIVEL I2 1
8 SCREW 1
9 FITTING LUBE 4
10 PIN 1
11 CLIP 1
13 WASHER Negative battery stud to center frame 1
14 LEVER AY 1
15 NYL WASHER 1
16 BUSHING 2
17 SPRING 1
18 WASHER 1
19 LEVER & SHAFT AY 1
20 KNOB 1
21 SCREW 1
22 NUTWIPER 1
23 TIE STRAP 100PK (100 per pack) 1
24 BUSHING STERN B 1
25 CLAMP 1
26 STERN BRKT - PORT 1
27 SCREW 1
28 ROLLER 1
29 CLAMP 1
30 ZINC ANODE KIT OB 1
31 WASHER LOCK 2
32 SCREW 2
33 SHIELD 1
34 SENDING UNIT AY 1
35 SPRING TORSION 1
36 ARM-SENDER 1
37 RETAINER 1
38 RNG TERM tahos_10 tahos_10 1
39 CONTACTRECEPTACLE 3
40 SEALWIRE 3
41 CONN3 POSN PLUG 1
42 SCREW 2
43 PINTILT 40-50 1
44 LOCKNUT 2
45 BARTIESTERN BRKT 1
47 7" TRNSM BOLT Optional 4
47 6" TRNSM BOLT Optional 4
47 8" TRNSM BOLT Optional 4
47 9" TRNSM BOLT Optional 4
47 4 3/4" TRNSM BOLT 4
47 5" TRNSM BOLT Optional 4
47 3 1/2" TRNSM BOLT Optional 4
48 WASHER 5 PK (005 per pack) 2
49 SQ PLATE 4PK (004 per pack) 2
50 WASHER 5 PK (005 per pack) 4
51 NUT (004 per pack) 4
52 CAP-TRAN SCR (004 per pack) 4
53 RETAINER Optional 2
54 SCREW RET TO PLATE Optional 4
55 ARM AYSTEERING-I2 1
56 THRUST WASHER 1
57 SEAL 1
58 BUSHING 1
59 WASHER 1
60 SCREW 1
61 SEAL 1
62 THRUST WASHER 1
63 SPRINGSTEER FRICT DT models 1
64 SCREWSTEER FRIC DT models 1
