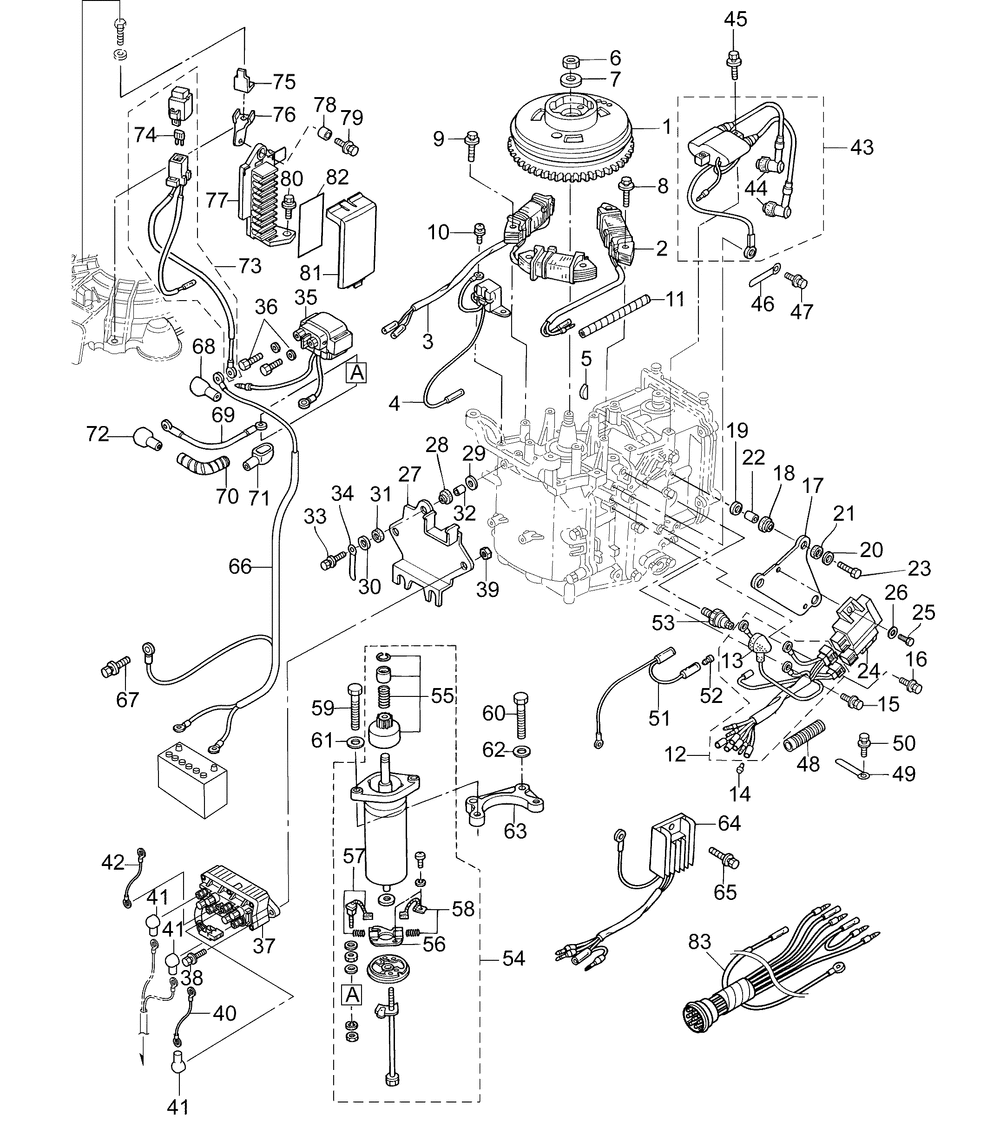

12-0_ELECTRICAL SYSTEM

Корзина пуста
Наименование Примечание Кол-во
1 FLYWHEEL W/GEAR 1
2 EXCITER COIL 1
3 ALTERNATOR ASSY EL PL PX TE TP 1
4 PULSAR COIL 1
5 KEY 1
6 NUT FLWHEEL 1
7 WASHER 1
8 BOLT 2
10 SCREW 2
11 SPIRAL TUBE PROT Late Models US Only 1
12 CD UNIT CORD ASSY 1
13 GROMMET 1
14 CABLE TERMINAL PLG 2
15 BOLT 1
17 CD UNIT BRACKET 1
18 RUBBER MOUNT 3
19 WASHER R Models 3
21 RUBBER MOUNT (010 per pack) 3
22 COLLAR 3
23 BOLT 3
24 CD UNIT 1
25 PRE-COATED BOLT 2
27 ELECTRIC BRCKT ASY EL PL PX TE TP 1
33 BOLT EL PL PX TE TP 3
34 CLAMP 1
35 STARTER SOLENOID EL PL PX 1
36 BOLT 2
37 PTT SOLND SWCH A PL PX TP 1
38 BOLT 2
39 NUT Use with extention kit 2
40 SOLND SWCH CORD A PL PX TP 1
41 TERMINAL CAP RED Cord PL PX TP 1
43 IGN COIL W/R-CAP 1
44 PLG CAP W/RESIST 2
45 BOLT 2
46 CLAMP (010 per pack) 1
47 BOLT 1
48 PROTECTOR R Models 1
51 SEPARATE CORD BLK 1
53 OIL PRESS SWITCH 1
54 STARTER MOTOR ASSY EL PL PX 1
55 PINION ASSY EL PL PX 1
56 BRUSH HOLDER EL PL PX 1
57 POSITIVE BRUSH EL PL PX 1
58 NEGATIVE BRUSH EL PL PX 1
61 WASHER 2
63 START MOTOR BRCKT EL PL PX 1
64 RECTIFIER COMPLETE EL PL PX 1
66 BATTERY CABLE EL PL PX 1
68 TERMINAL CAP EL PL PX 1
69 STARTER CABLE EL PL PX 1
71 TERMINAL CAP EL PL PX 1
73 FUSE WIRE ASSY EL PL PX 1
74 FUSE EL PL PX 2
75 FUSE HOLDER BRCKT EL PL PX 1
76 CBL TERM HLDR STAY EL PL PX 1
78 COLLAR EL PL PX (010 per pack) 1
80 BOLT 1
81 COVER EL PL PX 1
82 WIRING DIAGRAM DEC EL PL PX R 1
82 WIRING DIAGRAM DEC EL PL PX 1
