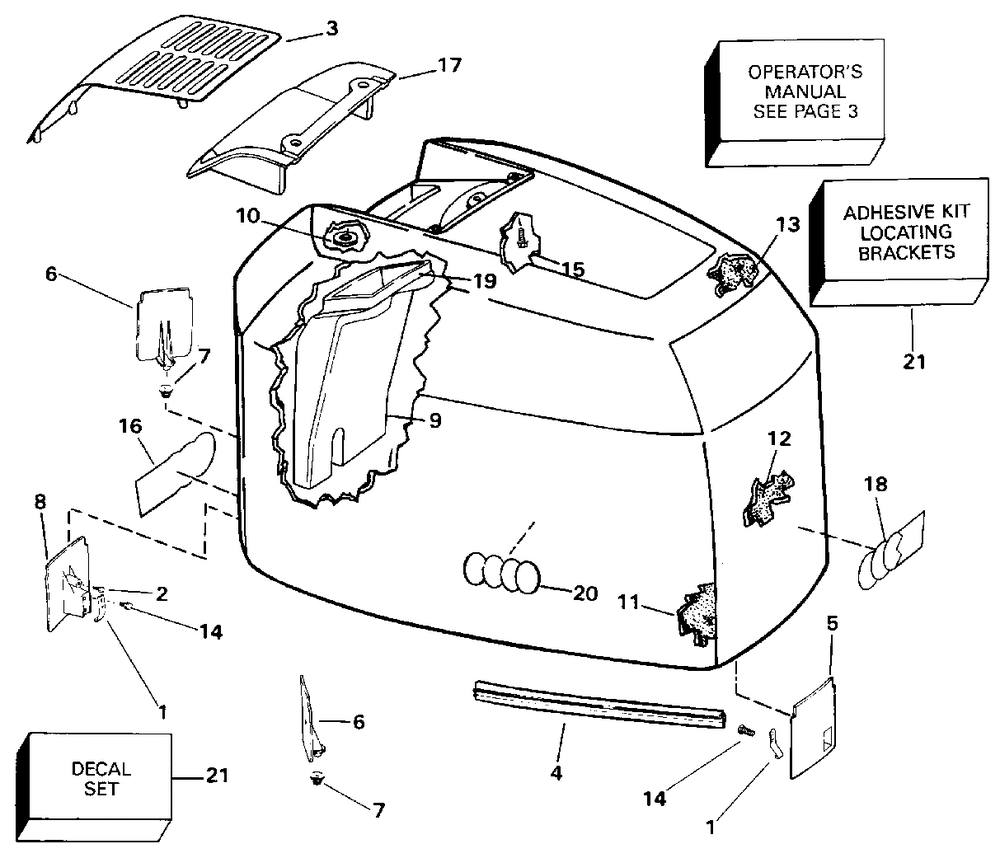

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | HOOK AY | 2 | |
| 2 | SCREW Baffle to center frame | 1 | |
| 3 | Детать | 1 | |
| 4 | "S" Suffix Models Only . | 1 | |
| 5 | BRACKET AYLATCH | 1 | |
| 6 | "S" Suffix Models Only . | 2 | |
| 7 | Детать | 3 | |
| 8 | Детать | 1 | |
| 9 | BAFFLEAIR INLET | 1 | |
| 10 | NUTPUSH ON | 0 | |
| 11 | BLANKETSOUND | 2 | |
| 12 | Детать | 1 | |
| 13 | SOUND BLANKET | 1 | |
| 15 | Детать | 6 | |
| 16 | APPLIQUE | 1 | |
| 16 | APPLIQUE | 1 | |
| 17 | Детать | 1 | |
| 18 | APPLIQUE | 1 | |
| 18 | APPLIQUE | 1 | |
| 19 | Детать | 1 | |
| 20 | APPLIQUE | 2 | |
| 21 | DECAL AYSET | 1 | |
| 21 | DECAL AYSET | 1 | |
| 22 | EPOXY ADHESIVE KIT | 0 | |
| 0284148 | Not Shown | 1 | |
| 0435037 | Not Shown | 1 |
