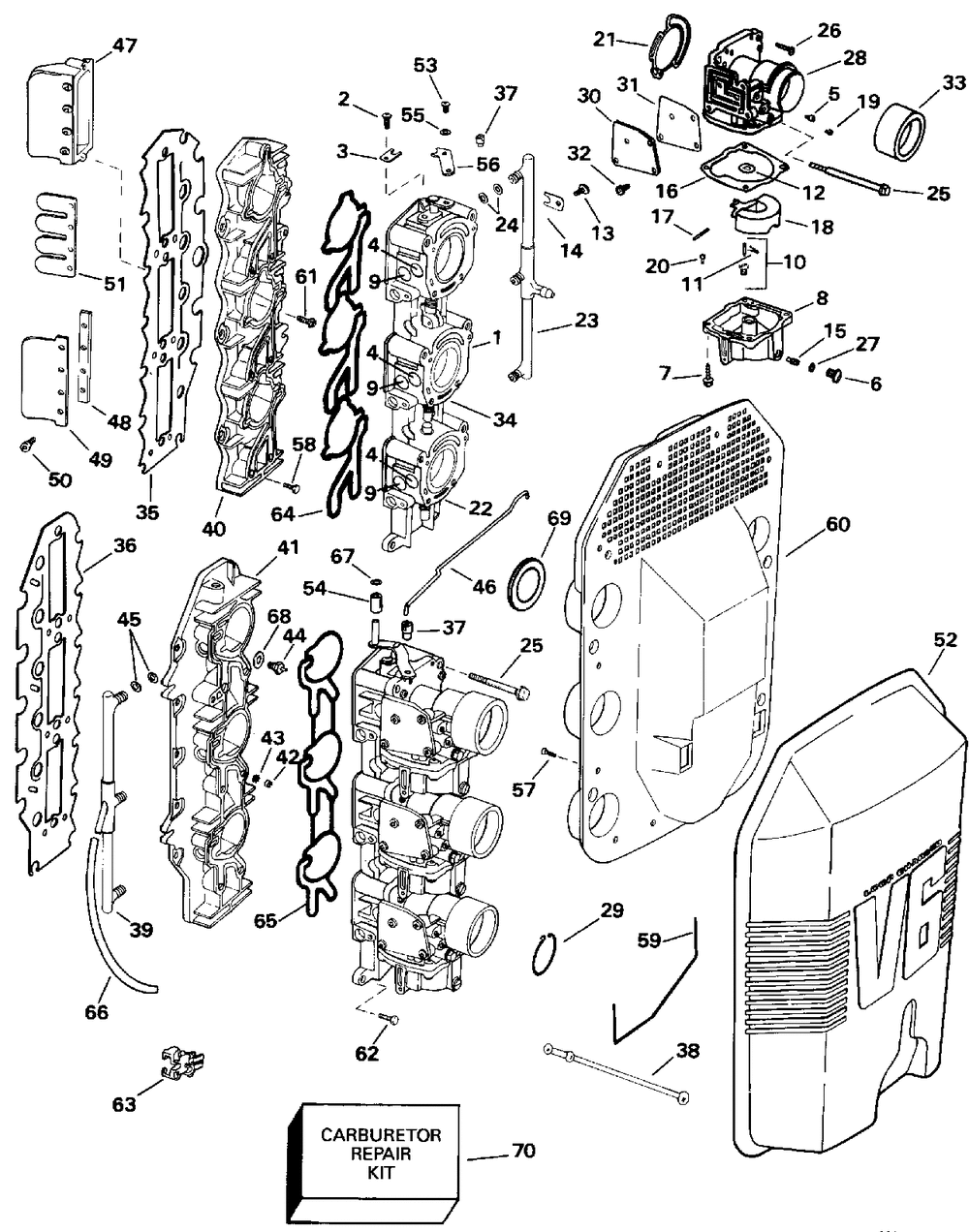

CARBURETOR AND INTAKE MANIFOLD

Корзина пуста
Наименование Примечание Кол-во
1 BODY AYTHROTTLE Early Production with 433342 or 433343 Stamped on Carburetor. These Assemblies and Related Parts Must Be Used Together. 1
1 BODY AYTHROTTLE Early Production with 433342 or 433343 Stamped on Carburetor. These Assemblies and Related Parts Must Be Used Together. 1
1 BODY AYTHROTTLE 1
1 Детать 1
1 Детать 1
2 SCREW-ADJ LEVER 1
3 CLIP 1
4 PLUG 5PK 0
5 ORIFICE PLUG 3
5 ORIFICE-IDLE tahos_28 3
5 ORIFICE PLUGtahos_30 3
5 ORIFICE(.039) 3
6 SCREW PLUG 3
7 SCREW 12
8 CHAMBER AYFLOAT 3
9 CORE PLUG 3
10 FLOAT VALVE & SEAT (Also Available in Carburetor Repair Kit.) 3
11 CLIPSPRING (Also Available in Carburetor Repair Kit.) 1
12 GASKET CARB 5PK (Also Available in Carburetor Repair Kit.) (005 per pack) 3
14 CLIP 3
15 ORIFICE PLUG 72D 225TX CX TZ CZ SL STL 3
15 ORIFICE PLUG 71D 3
15 ORIFICE PLUG-57D (55 Models.) 3
16 GASKETFLOAT BOWL (Also Available in Carburetor Repair Kit.) 3
17 PINHINGE (Also Available in Carburetor Repair Kit.) 3
18 FLOAT&ARM AY (Also Available in Carburetor Repair Kit.) 3
19 ORIFICE .036 3
19 Детать 3
19 ORIFICEIDLE tahos_44 3
19 ORIFICE tahos_40 3
20 SCREW 3
21 SEAL 3
22 SCREENFUEL 3
23 MANF AYFUEL INLET 1
24 O-RING 6
25 SCREW DPS manifold to trim manifold 6
27 O-RINGSCREW PLUG 3
28 Детать 3
28 Детать 3
29 Детать 1
30 Детать 1
31 GASKETCVR PLATE 1
32 SCREW 4
33 SEALAIR SILENCER (100WPX Models Only.) 1
35 GASKETINTAKE MANF Included in POWERHEAD GASKET SET 1
36 GASKETINTAKE MANF Included in POWERHEAD GASKET SET 1
37 RETAINER 2
38 STRAPAIR SILENCER 4
39 Детать 2
40 Детать 1
41 Детать 1
42 VALVE AYCHECK 6
43 SCREEN 6
44 Детать 2
46 LINK 1
47 Детать 6
48 SHIM-LEAF VALVE 1
49 LEAF STOP 2
50 SCREW 8
51 LEAF VALVE 2
52 Детать 1
53 SCREW 1
54 ROLLER&SLEEVE AY 1
55 WASHER 1
56 LEVER 1
58 SCREW 22
60 Детать 1
61 SCREW 12
62 SCREW-IMP HSG 4
63 RETAINERBAL TUBE 4
64 SEALMAN-CARB PORT 1
65 SEALMAN-CARB STBD 1
67 O-RING 1
68 WASHERFIBER 2
69 SEAL 6
70 KIT AYCARB REPAIR 1
0433342 CARBURETOR AY-STBD Not Shown Early Production with 433342 or 433343 Stamped on Carburetor. These Assemblies and Related Parts Must Be Used Togeth 1
0433343 CARBURETOR AY-PORT Not Shown Early Production with 433342 or 433343 Stamped on Carburetor. These Assemblies and Related Parts Must Be Used Togeth 1
0434638 CARB AY6V6GL-STBD Not Shown 1
0434639 Not Shown 1
0435295 CARBURETOR AY Not Shown 1
0435296 Not Shown 1
0435528 CARBURETOR AY-STBD Not Shown 1
