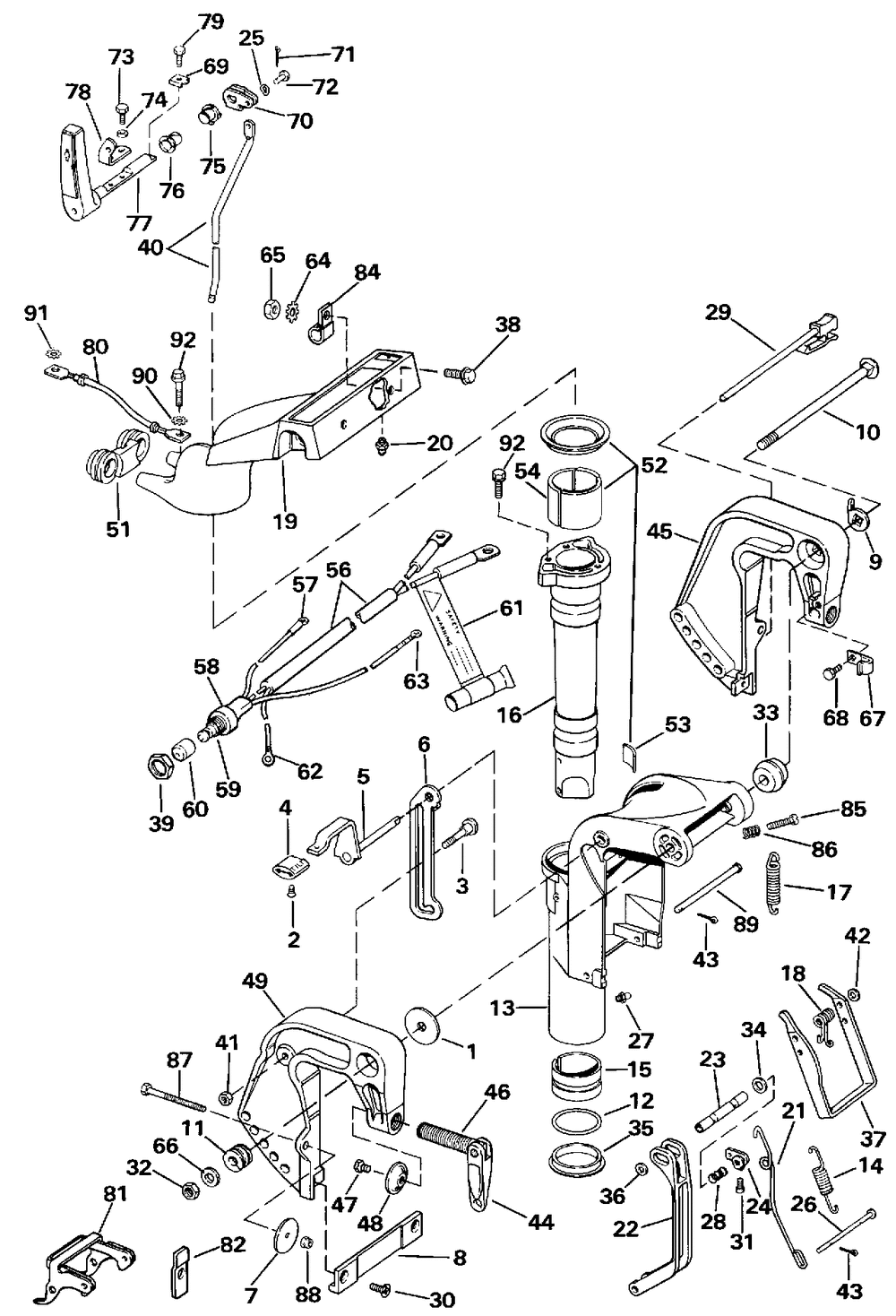

MIDSECTION (10SEL ONLY)

Корзина пуста
Наименование Примечание Кол-во
1 WASHER 1
2 SCREW 1
3 PIN 1
4 KNOB 1
5 LVR & SHAFT A 1
6 LINKTILTLOCK-STBD 1
7 WASHER SB 2
8 PLATE 1
9 LINK (9.9 Rope Models. 9.9 Tiller Electric High Thrust Models. 15 Rope Models.) 1
10 TILT BOLT 1
11 SPRING 1
12 O RING Included in Powerhead Gasket & Seal Kit 1
13 Детать 1
14 SPRING 1
15 BUSHING 1
16 Детать 1
17 Детать 3
18 SPRING 1
19 BRKT&FTG AYSTRG 1
20 FITTING LUBE 1
21 WIRE REV LOCK REL 1
22 HANDLECARRYING 1
23 Детать 1
24 BELLCRANK 1
25 BOW WASHER 1
26 PIN 1
28 SPRING 1
29 TILT PIN AY 1
30 SCREW 2
31 SCREW-BELLCRK 1
32 LOCK NUT (9.9 Rope Models. 9.9 Tiller Electric High Thrust Models. 15 Rope Models.) 1
33 WASHER 1
34 WASHER 2
35 WASHER 1
36 WASHER 1
37 LINK 1
38 SCREW Contents of GEARCASE SEAL KIT 1
39 Electric Start Models Only 1
40 Детать 1
41 NUT 1
43 COTTER PIN 10PK (010 per pack) 2
44 KITHANDLE&RIVET 2
45 Детать 1
46 C-SCREW KIT SST Stainless optional accessory 2
46 KIT AYCLAMPSCREW Aluminum 2
47 SCREW-CLMPSCRW (005 per pack) 1
48 PLATESWIVEL 1
49 Детать 1
51 SEAL 1
52 Детать 1
53 FRICTION BLOCK 1
54 Детать 1
56 Детать 1
57 TERM. 40724 (005 per pack) 1
58 TUBING-HEAT SHRINK 1
59 SWITCH & SLEEVE AY 1
60 BOOT-SWITCH 1
61 COVER 1
62 RING TERMINAL 0.312 in. (7.9mm) diameter 1
63 TERM.-41124 1
64 LOCK WASHER 2
66 WASHER 1
67 CLAMP Rope start models 1
68 SCREW 1
69 CLIP 1
70 BELLCRANK SHFT ROD 1
72 PIN 1
73 SCREW 2
74 WASHER 2
75 BUSHING 1
76 Детать 1
77 SHIFT HNDL & SHAFT 1
78 LEVER SHIFT 1
79 SCREW 1
80 LEAD AYBONDING 1
81 LOCK LEVER & LINK (9.9 Tiller Electric High Thrust Models. 9.9 Electric High Thrust Models.) 1
82 (Optional.) 2
84 CLAMP BATTY CABLE 1
85 SCREW 1
86 SPRINGSTEER FRICT DT models 1
87 SCREW 1
88 LOCKNUT 1
89 PIN 1
90 LOCKWASHER (005 per pack) 1
91 LOCKWASHER 1
92 SCREW 3
0432294 SCREW & NUT AY Not Shown 2
