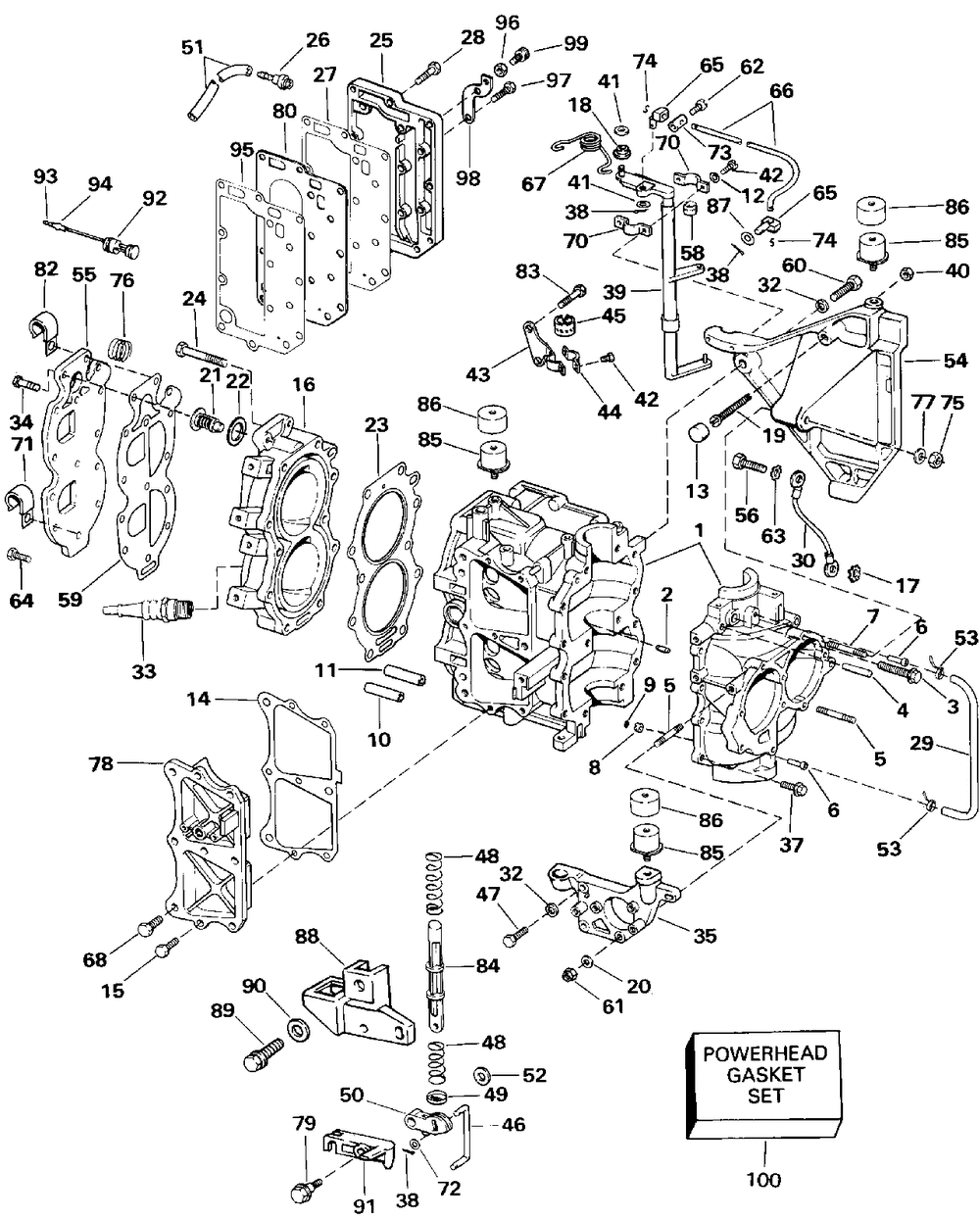

CYLINDER & CRANKCASE

Корзина пуста
Наименование Примечание Кол-во
1 Детать 1
2 DOWEL 1
3 SCREW 6
4 PIN 4PK (004 per pack) 1
5 Детать 7
7 STUD 1
8 CHECK VALVE AY 1
9 SCREEN 1
10 DEFLECTOR 2
11 DEFLECTOR 1
12 LOCKWASHER 2
13 BUMPER 1
14 FF GASKET CVR CYL 1
15 SCREW 6
16 HEADCYLINDER 1
17 LOCKWASHER (005 per pack) 1
18 SLEEVE 1
19 SCREW 1
20 WASHER Trim manifold to DPS manifold 2
21 THERMOSTAT AY 1
22 GASKET 1
23 HD GASKET32CU" (Included in Powerhead Gasket Set.) 1
24 SCREW 10
25 Детать 1
26 NIPPLE 1
27 GASKET-EXH CVR 1
28 SCREW 11
30 TERMINAL & LEAD AY 1
32 LOCKWASHER 5 PK (005 per pack) 2
33 SPARK PLUG L16V (Optional.) (004 per pack) 2
33 QL16V-PLUG 4PK (Radio Noise Suppression Spark Plug.) (004 per pack) 2
34 SCREW 3
35 BRACKET 1
37 SCREW EXH CVR 8
38 COTTER PIN 4
39 Детать 1
40 NUT-SPARK ADJ 1
41 SHIM 2
42 Детать 4
43 CLAMP 1
44 BEARING CLAMP 1
45 BEARING 1
46 Детать 1
47 SCREW 1
48 SPRING 2
49 RETAINER 1
50 LVR & ROLLER AY 1
52 WASHER 1
53 TIE STRAP 100PK (100 per pack) 2
54 BRACKET 1
55 Детать 1
56 SCREW (005 per pack) 1
58 Детать 1
59 GASKET 1
61 NUT (105WEL Models Only.) 2
62 SCREW 1
65 FF PIVOT PIN 2
66 FF THROTTLE CON RD 1
67 SPRING 1
68 SCREW 3
70 FF BEARING CLAMP 2
71 CLAMP 'J' 1
72 WASHER 2
73 COLLAR 1
74 PIN 2
76 SPRING 1
78 20SR - 20SRL - 25RA - 25RAL 1
79 SCREW 1
80 EXH CVR-INNER 1
84 PLUNGER 1
85 MOUNT-STARTER HSG 3
86 CUP-RUBBER MOUNT 3
87 WASHER 1
88 BRACKET 1
89 SCREW 1
90 WASHER Negative battery stud to center frame 1
91 Детать 1
92 SWITCH AYTEMP 1
93 TERM. 521616-ADZ (010 per pack) 1
94 SLEEVEBULLET TERM 1
95 GASKET-EXH CVR 1
96 NUT 1
98 IDLE STOP BRKT 1
99 SCREW 1
100 GASKET SET PWHD 1
