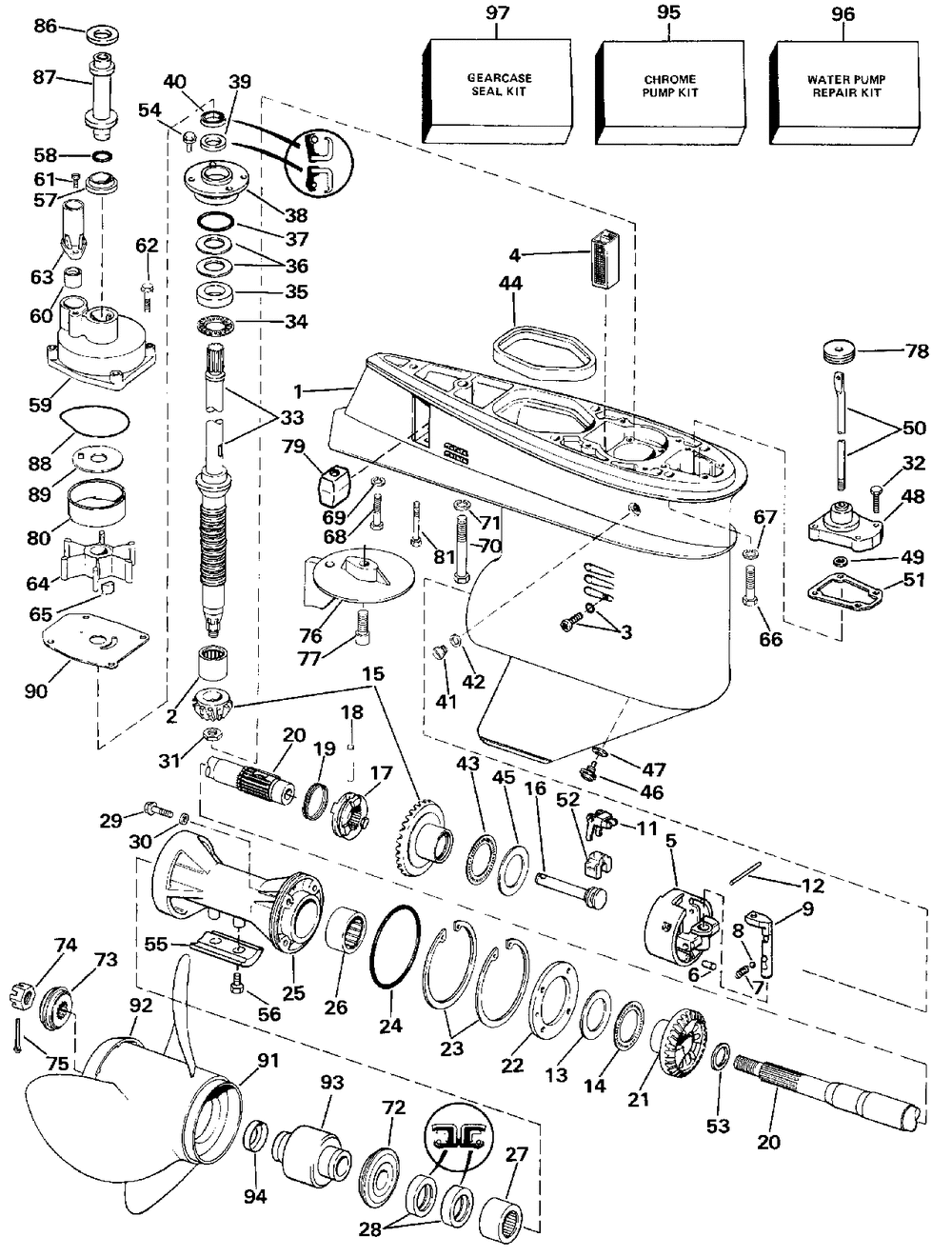

GEARCASE

Корзина пуста
Наименование Примечание Кол-во
1 GEARCASE & BRG AY 1
2 BEARING 1
3 RETAINING SCREW 1
4 SCREEN 1
5 BRG HGSPIN&SPRING 1
6 PIN 1
7 SPRING 1
8 BALL DETENT 1
9 DETENT 1
11 SHIFTER LEVER 1
12 PIN 1
13 WASHER 1
14 BEARING AYTHRUST 1
15 GEARSETFWD&PIN 1
16 SHAFT 1
17 SHIFTER 1
18 PIN 1
19 SPRING 1
20 SHAFT AYPROPELLER 1
21 REVERSE GEAR 1
22 PLATE RETAINER 1
23 RING 2
24 O-RING Contents of Gearcase Seal Kit (010 per pack) 1
25 P-SHFT BRG HSG AY 1
26 NEEDLE BRG 1
27 NEEDLE BRG AY 1
28 SEAL DRL 5-PK Contents of Gearcase Seal Kit (005 per pack) 2
29 SCREW BRG HSG Contents of Gearcase Seal Kit 4
31 NUT 1
32 SCREW (005 per pack) 4
33 DRIVESHAFT AY20" 1
34 THRUST BRG 1
35 THRUST WASHER 1
36 SHIM-PINION .003 0
36 SHIM-PINION .004 0
36 SHIM 005 0
37 O-RING (005 per pack) 1
38 D/S BRG HSG&SEAL 1
39 OIL RET 5 PK Early Production Double Seal (005 per pack) 1
40 OIL RETAINER 1
41 DRAIN FILL PLG 10P (010 per pack) 1
42 O-RING (010 per pack) 1
43 THRUST BRG AY 1
44 SEAL Contents of Gearcase Seal Kit 1
45 THRUST WASHER 1
46 DRAIN SCREW Contents of GEARCASE SEAL KIT 1
48 CVR&BUSH AY-ROD 1
49 O-RING (005 per pack) 1
50 SHIFT ROD-LONG 1
51 GASKET 5 PK Contents of Gearcase Seal Kit (005 per pack) 1
52 CRADLE-SHIFT 1
53 THRUST WASHER 1
54 SCREW-RET PLATE 4
55 ANODE & INSERT AY 1
56 SCREW 2
57 GROMMET Also included in Water Pump Repair Kit 433549 1
58 O RING 1
59 WTR PUMP KIT Also included in Water Pump Repair Kit 432955 1
60 GROMMET 3.3 L models 1
61 SCREW 1
62 SCREW 4
63 GUIDE TUBE (Contents of Water Pump Repair Kit.) 1
64 IMP & KEY AY 1
65 KEY IMP - BLK 1
66 Детать 4
67 LOCKWASHER (WRL Models Only. 20 in. (508mm) Models Only.) 4
68 SCREW 1
68 SCREWTRIM TAB LNG (22.5 in. (571mm) Models Only.) 1
69 LOCKWASHER 1
70 SCREW 1
71 LOCKWASHER 4PK (004 per pack) 1
72 BUSHINGTHRUST 1
73 SPACER (005 per pack) 1
74 PROP NUT 1
75 COTTER PIN (010 per pack) 1
76 TABTRIM-STD 1
77 SCREW 1
78 GROMMET 1
79 ANODE&INSERT AY 1
80 LINER-IMP HSG Stainless Steel Also included in Water Pump Repair Kit 433549 1
80 Chrome Plated 1
81 SCREW ANODE 1
88 SEAL-IMP HSG Contents of Gearcase Seal Kit 1
89 PLATE-IMP HSG Stainless Steel Also included in Water Pump Repair Kit 433549 1
89 Chrome Plated 1
90 PLATE Chrome Plated 1
90 IMP HSG PLATE 1
91 SSP V4 13.75X13 Swept Blade 1
91 PROP AYAL 13.5X15 (Refer to Genuine Parts Propeller Chart.) 1
91 PROP AL14 X 9 1
91 PROPAL 14 X 11 1
91 PROPAL 13.75X13 1
91 PROPAL 13.25X17 1
91 PROP AYAL 13.2X19 1
91 PROP AYAL 13.2X21 1
91 VIPERV4 13.875X17 1
91 VIPERV4 13.875X19 1
91 Детать 1
91 Детать 1
91 VIPER V413.875X15 1
92 CONVERGING RINGV4 1
93 Детать 1
94 SLEEVE 1
95 CHROME PUMP KIT Optional Accessory 1
96 WTR PUMP KIT 1
97 KIT AYSEAL-GRC 1
0332584 WASHER 5PK (005 per pack) 1
0432624 G-CASE*ASSY 20" (Not Shown.) 1
