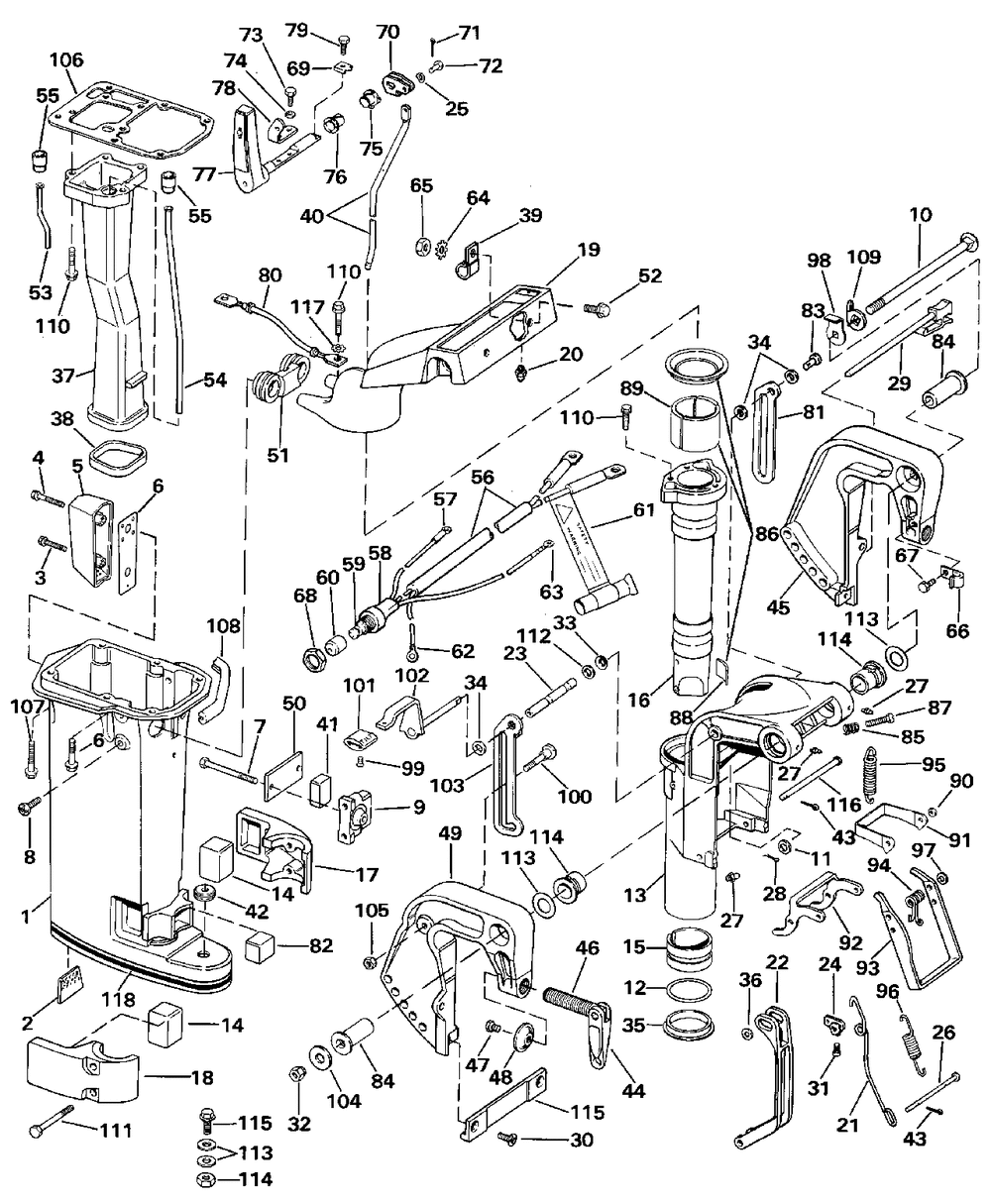

MIDSECTION (ALL MODELS EXCEPT SEL)

Корзина пуста
Наименование Примечание Кол-во
1 Детать 1
1 9.9 Models Only 1
2 BAFFLE-EXH HSG 1
3 SCREW 5 PK (005 per pack) 1
4 SCREW-EXH HSG 1
5 EXHAUST MUFFLER 1
6 GASKET 1
7 SCREW 2
8 SCREW 4
9 MOUNT AYTHRUST 2
10 TILT BOLT 1
11 WASHER 1
12 O RING Included in Powerhead Gasket & Seal Kit 1
13 BRACKET AY SWIVEL 1
14 RUBBER MOUNT 2
15 BUSHING 1
16 PIVOT SHAFT 1
17 MOUNT BRACKET LOW 1
18 MOUNT BRACKET-LOW 1
19 Детать 1
20 FITTING LUBE 1
21 WIRE REV LOCK REL 1
22 HANDLECARRYING 1
23 BUSHING 1
24 BELLCRANK 1
25 BOW WASHER 1
26 PIN 1
28 COTTER PIN 10PK (010 per pack) 1
29 TILT PIN AY 1
30 SCREW 2
31 SCREW-BELLCRK 1
32 LOCK NUT (9.9 Rope Models. 9.9 Tiller Electric High Thrust Models. 15 Rope Models.) 1
33 WASHER 1
34 WASHER 3
35 WASHER 1
36 WASHER 1
37 EXH HSG-INNER 1
37 9.9 Models Only 1
38 SEAL 9.9 Models Only 1
39 CLAMP BATTY CABLE 4
40 Детать 1
41 MOUNTTHRUST UPPR 1
42 GROMMET 1
44 KITHANDLE&RIVET 2
45 STERN BRKT-PORT 1
46 C-SCREW KIT SST Stainless optional accessory 1
46 KIT AYCLAMPSCREW 1
47 SCREW-CLMPSCRW (005 per pack) 1
48 PLATESWIVEL 1
49 STERN BRKT-STBD 1
50 PLATE 1
51 SEAL 1
52 SCREW Contents of GEARCASE SEAL KIT 1
53 WATER TUBE&GROMMET 1
54 WATER TUBE&GROMMET 1
54 WATER TUBE&GROMMET 1
55 GROMMET 1
56 Electric Start Models Only 1
57 TERM. 40724 (005 per pack) 1
58 TUBING-HEAT SHRINK 1
59 SWITCH & SLEEVE AY 1
60 BOOT-SWITCH 1
61 COVER 1
62 RING TERMINAL 0.312 in. (7.9mm) diameter 1
63 TERM.-41124 1
64 LOCK WASHER 2
66 CLAMP Electric Start Models Only 1
67 SCREW 1
68 Electric Start Models Only 1
69 CLIP 1
70 BELLCRANK SHFT ROD 1
72 PIN 1
73 SCREW 2
74 WASHER 2
75 BUSHING 1
76 Детать 1
77 SHIFT HNDL & SHAFT 1
78 LEVER SHIFT 1
79 SCREW 1
80 TERMINAL & LEAD AY 1
81 SUPPORT BRACKET 1
82 THRUST MOUNT 1
83 PIN 1
84 BUSHING (9.9 Rope Models. 9.9 Tiller Electric High Thrust Models. 15 Rope Models.) 2
85 SPRINGSTEER FRICT DT models 1
86 Детать 1
87 SCREW STRG ADJ 1
88 FRICTION BLOCK 1
89 Детать 1
91 LOCKING LVR 1
92 LINK-REVERSE LOCK 1
93 LINK 1
94 SPRING 1
95 Детать 3
96 SPRING 1
97 WASHER (9.9 Rope Models. 15 Rope Models. 15 Electric Models.) 2
98 WASHER-TILT PIN (9.9 Rope Models. 9.9 Tiller Electric High Thrust Models. 15 Rope Models.) 1
99 SCREW 1
100 PIN 2
101 KNOB 1
102 Детать 1
103 LINKTILTLOCK-STBD 1
104 WASHER 1
105 NUT 2
106 GASKET 5PK 1
108 SEAL EX-HOUSING 1
109 LINK (9.9 Rope Models. 9.9 Tiller Electric High Thrust Models. 15 Rope Models.) 1
111 SCREW 2
113 FF WASHER 2
114 BUSHING SWIV BRKT 2
115 PLATE 1
116 PIN 1
117 WASHER 2
118 Детать 1
118 DECAL 1
