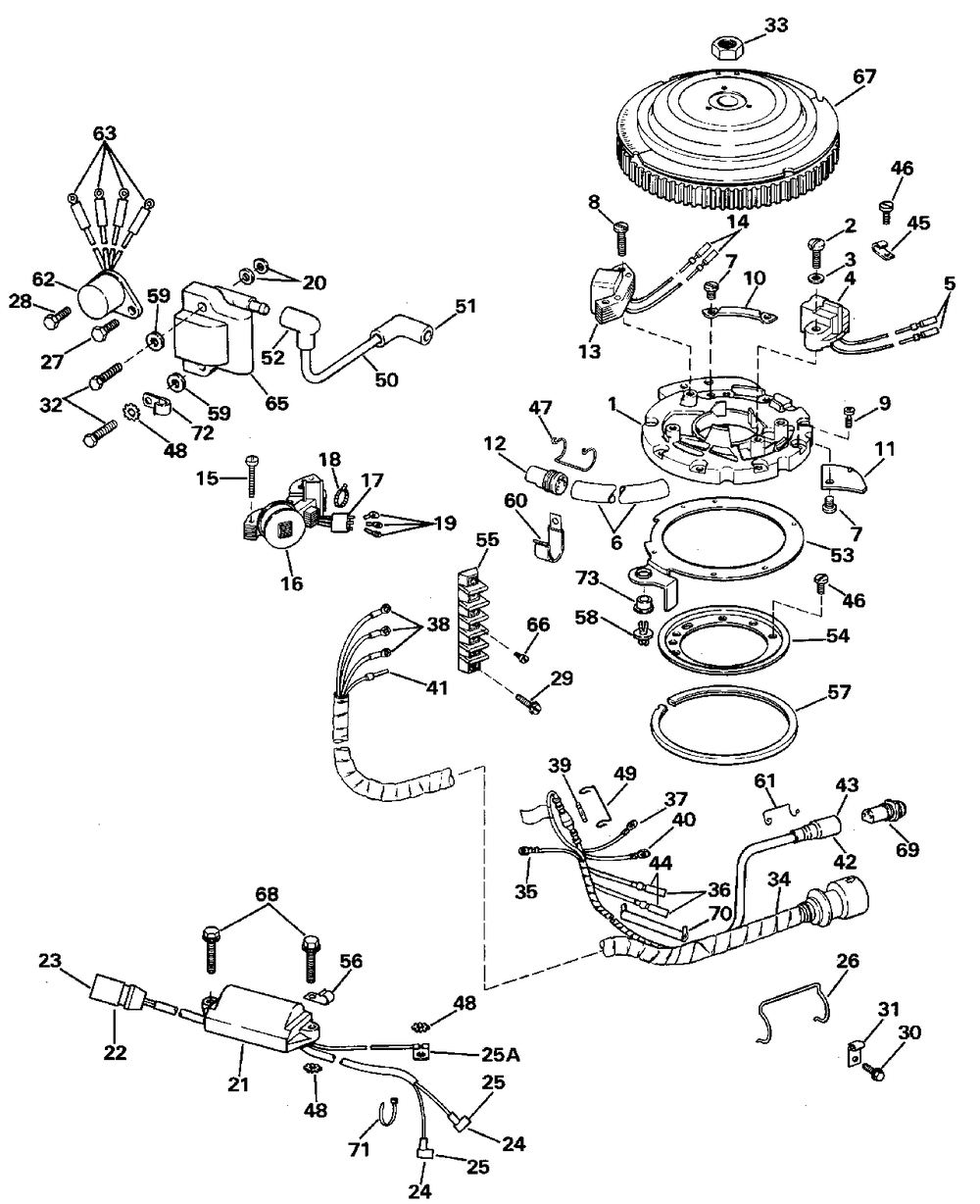

IGNITION SYSTEM

№	Наименование	Кол-во
1	PLATE & SLEEVE AY	1
2	SCREW	2
3	WASHER	2
4	SENSOR AY(CD-2)	1
5	TERMSCKT (010 per pack)	2
6	TUBING	1
7	SCREW	1
8	SCREW 45RC - 45RCL - 55RW Models Only	2
9	SCREW-RET TO PLATE	5
10	CLAMP-LEADS	1
11	COVER-LEADS	1
12	CONN 5 SKT PLUG	1
13	CHARGE COIL	1
16	STATOR AY4AMP CD2	1
17	20EC - 20ELC - 25EC - 25ELC - 25TEC - 25TELC	1
18	TIE STRAP 100 PK (100 per pack)	1
19	TERM. 40724 (005 per pack)	3
20	WASHER	6
21	KIT AYPP AY&INSTR	1
22	CONNECTOR 5-PIN	1
23	PIN(10)44-100-1414 (010 per pack)	5
24	COVER IGN COIL	2
25	PIN 481817-AE44 (010 per pack)	2
25A	RING TERMINAL (005 per pack)	1
26	CLAMP	1
27	SCREW	1
28	SCREW HL TSL Models Only	1
29	SCREW	2
30	SCREW Electric Start Models Only	1
31	SPRING	1
32	SCREW	4
33	NUT FLYWHEEL	1
34	Electric Start Models	1
35	TERM. 40977	1
36	TERMINAL (005 per pack)	2
37	RING TERMINAL 0.312 in. (7.9mm) diameter	1
38	TERM. 40724 (005 per pack)	3
39	FUSE-20AMP/10 PACK (010 per pack)	1
40	TERM. 61867-2	1
42	CONNECTOR 3-PIN	1
44	SLEEVESOCKET BLUE	2
45	CLAMP	1
46	SCREW	4
47	RETAINER	1
48	LOCKWASHER (005 per pack)	4
49	RETAINER	1
50	SP PLUG LEAD AY	2
51	SP PLUG BOOT 10PK (010 per pack)	1
52	COIL BOOT 10 PK (010 per pack)	1
53	Детать	1
54	SUPPORT PLATE	1
55	TERMINAL BLOCK	1
56	CLAMP	2
57	BEARING SUPPORT	1
58	PIVOT BUSHING	1
59	WASHER Negative battery stud to center frame	6
60	CLAMP (Rope & Tiller Electric Models.)	1
61	RETAINER	1
62	RECTIFIER AY	1
64	SCREW	1
65	KIT AYIGN COIL	2
66	SCREW	4
67	Детать	1
69	SEAL3 PIN CONN	1
70	Детать	1
71	TIE STRAP 100PK (100 per pack)	1
72	J-CLAMP	1
73	SOCKET	1
0583389	ARM PLATE AY Not Shown 8SRL & 6SL Models Only	1
