Evinrude 155 E155WTXCDR 155 E155WTXCDR CYLINDER & CRANKCASE

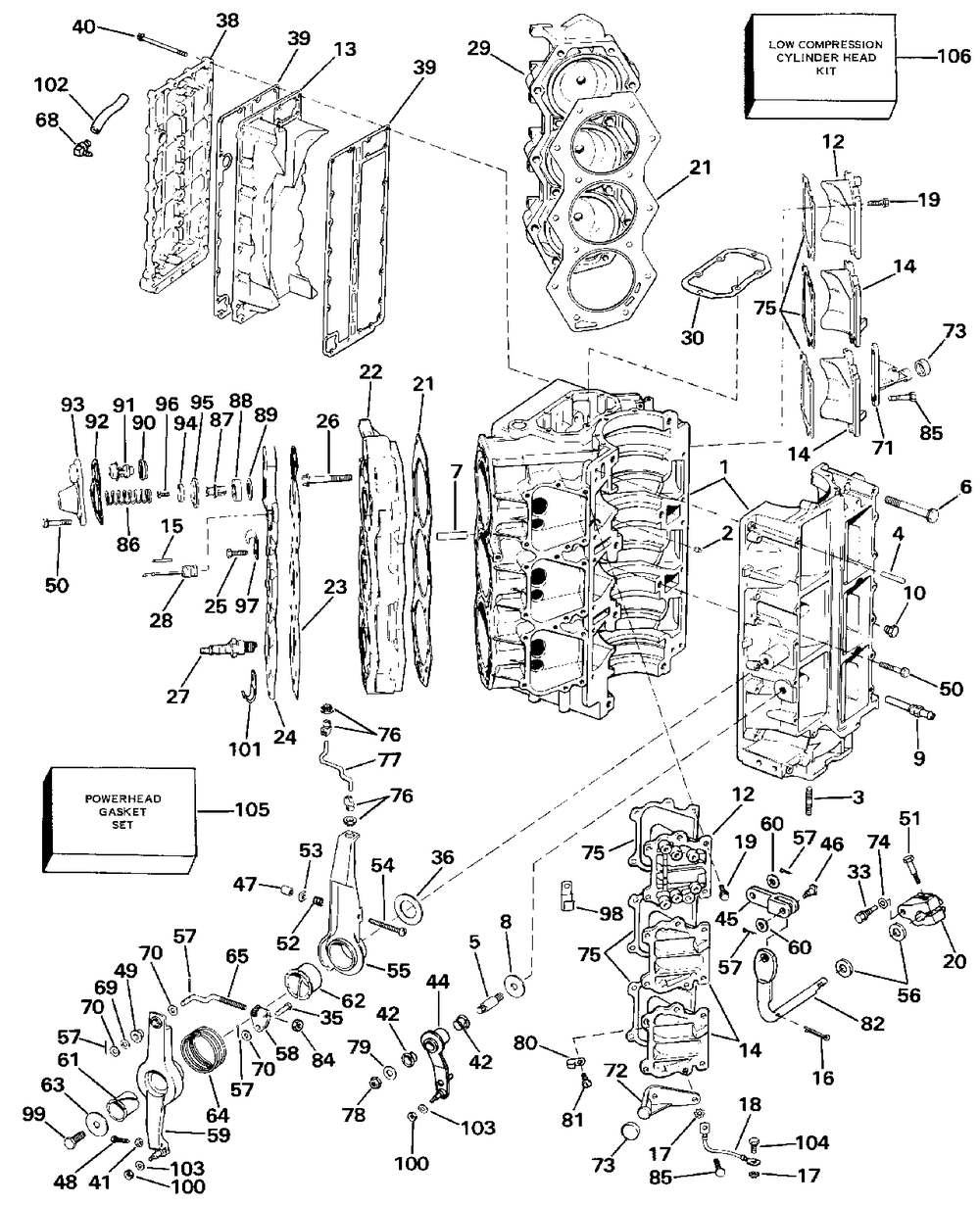

CYLINDER & CRANKCASE
№ Наименование Примечание Кол-во
1 Детать 1
2 DOWEL 2
3 STUD 4
4 PIN 4PK (004 per pack) 2
5 STUD 1
6 SCREW 8
7 DEFLECTOR 5PK (005 per pack) 6
8 WASHER SHIF LVR 1
9 Детать 1
10 PLUG See "Oil Recirculation System" 1
12 BY-PASS COVER 2
13 COVER 1
14 BY-PASS COVER 4
15 Детать 2
16 COTTER PIN 1
17 LOCKWASHER (005 per pack) 4
18 Детать 1
19 SCREW 31
20 LEVER SHIFT ROD 1
21 GASKETCYL HEAD 2
22 Детать 1
23 GSKTWTR JCKT CVR 2
24 Детать 2
25 SCREW 40
26 SCREW 28
27 SP PLUG UL77V 8PK 15KC Models Only (008 per pack) 6
28 Детать 2
29 CYL HEAD-PORT 1
30 GASKET-CVR-WTR PSG 1
33 PIN - SHIFT LVR 1
35 ANCHOR PIN 1
36 WASHER 1
38 Детать 1
39 GASKETEXH CVR 2
40 SCREW 28
41 NUT-SCREW THRTL 1
42 BUSHING 5-PK (005 per pack) 2
44 SHIFT ARM AY 1
45 Детать 1
46 PIN 1
47 CAP 1
48 SCREW-THROTTLE 1
49 BUSHING 1
50 SCREW HX TSX Models Only 20
51 SCREW 1
52 SPRING 1
53 NUT 1
54 SCREW-IDLE ADJ 1
55 LEVER SPARK ADV 1
56 WASHER 2
57 COTTER PIN 10PK (010 per pack) 5
58 YOKE AY 1
59 LVR PIN AY 1
60 WASHER 2
61 BUSHING THROTTL 1
62 BUSHING SPARKLV 1
64 Детать 1
65 Детать 1
68 ELBOW90DEG-5PK 40 HO 60 HP Models (005 per pack) 1
69 SPRING WASHER 1
71 SUPPORT BRACE 1
72 SUPPORT BRACE 1
73 BUMPER 2
74 LOCKWASHER 5 PK (005 per pack) 1
75 GASKET 5PK (005 per pack) 6
76 JOINT KIT 5 PK (005 per pack) 2
77 Детать 1
78 LOCKNUT 1
79 WASHER 1
80 CLAMP 'J' 1
81 Детать 1
82 SHIFT LEVER 1
84 NUT-SPARK ADJ 1
85 SCREW 4
86 SPRING 2
87 VALVE PRESSURE 2
88 SEAT VALVE 5PK (005 per pack) 2
89 Детать 2
90 SEAL 4 PK (004 per pack) 2
91 THERMOSTAT AY 2
92 GASKET 5 PK (005 per pack) 2
93 Детать 2
94 RETAINERSPRING 2
95 SEAL VALVE 5PK (005 per pack) 2
96 SCREW 2
98 CLAMP 4
99 SCREW 1
100 NUT 2
102 HOSE .188 X 39" 20" Transom Models 1
103 WASHER 2
104 SCREW 1
105 GASKET SET PWHD 1
106 Детать 1
