Evinrude 75 E75DSLIIA 75 E75DSLIIA GEARCASE S-Type

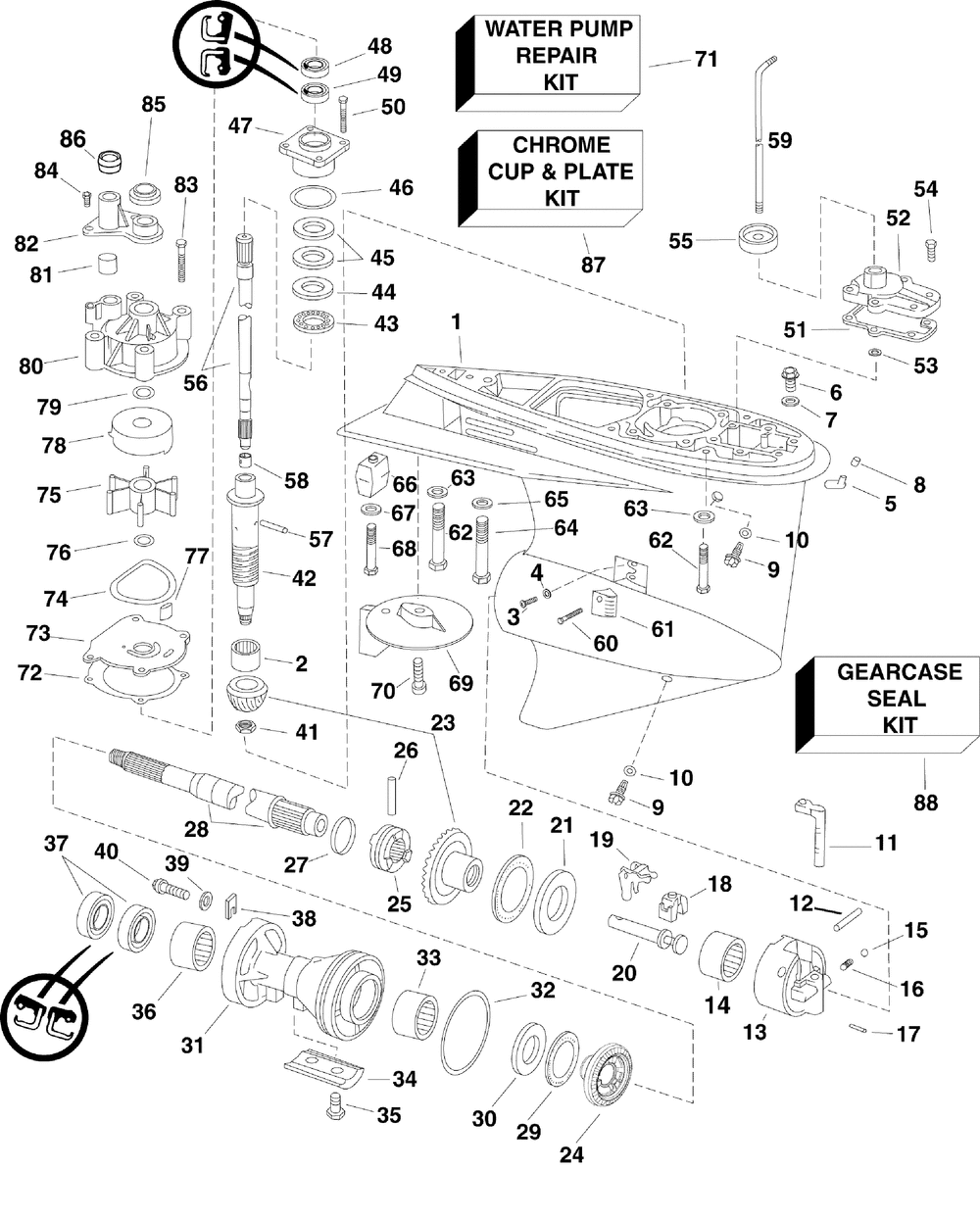

GEARCASE S-Type
№ Наименование Примечание Кол-во
- G/C AYS1 I3-V4BLU Blue Models Less Driveshaft & Shift Shaft 1
- G/C AYS1 I3-V4WHT White Models Less Driveshaft & Shift Shaft 1
NS CUPIMP HSG-CHROME Chrome 1
NS PLATE WATER PUMP Chrome 1
1 G-CASE&BRG AY "S" 1
2 NDLE BRGBH-1820 1
3 RETAINING SCREW 1
4 WASHER 5PK (005 per pack) 1
5 NIPPLE 1
6 SCREW PITOT TUBE 1
7 WASHER&SEAL AY Contents of GEARCASE SEAL KIT 1
8 NIPPLE PLUG 1
9 DRAIN SCREW Contents of GEARCASE SEAL KIT 2
10 WASHER-10 PK (010 per pack) 1
11 DETENT 1
12 PIN 1
13 BRG HGSPIN&SPRING 1
14 NEEDLE BRG 1
15 BALL DETENT 1
16 SPRING 1
17 PIN 1
18 CRADLE-SHIFT 1
19 SHIFTER LEVER 1
20 SHAFT-SHIFTER 1
21 THRUST WASHER 1
22 THRUST BRG AY 1
23 V4 GEARSET 13:26 Ratio 1
24 GEARREVERSE V4 1
25 SHIFTER-CLUTCH DOG 1
26 PIN 1
27 SPRING 1
28 SHAFT AYPROPELLER 1
29 BEARING AYTHRUST 1
30 THRUST WASHER 1
31 HSG AYPROPSHAFT 1
32 O-RING Contents of Gearcase Seal Kit (010 per pack) 1
34 ANODE & INSERT AY 1
35 SCREW 2
36 NEEDLE BRG AY 1
37 SEAL DRL 5-PK Contents of Gearcase Seal Kit (005 per pack) 2
38 RETAINING TAB 2
39 WASHER 2
40 SCREW BRG CARRIER 2
41 NUT PINION 1
42 DRIVESHAFTLOWER 1
43 THRUST BRG AY 1
44 THRUST WASHER 1
45 SHIM 005 0
45 SHIM-PINION-004 0
45 SHIM-PINION-003 0
46 O-RING 1
47 DS BRG HSG&SEAL AY 1
48 OIL RETAINER Contents of GEARCASE SEAL KIT 1
49 OIL RETAINER Contents of GEARCASE SEAL KIT 1
50 SCREW Contents of GEARCASE SEAL KIT 4
51 GASKET Contents of GEARCASE SEAL KIT (005 per pack) 1
52 COVER AYSHIFT ROD 1
53 O-RING (005 per pack) 1
54 SCREW 6
55 GROMMET EXH HSG 1
56 KITUPPER D/S-20" 1
57 PINROLL 1
58 RETAINERDR SFT 1
59 RODSHIFT 20" 1
60 SCREW 2
61 SCREENWATER INLET 2
62 SCREW 5
63 WASHER 5
64 SCREW 1
65 WASHER 1
66 ANODE&INSERT AY 1
67 LOCKWASHER 1
68 SCREWANODE 1
69 TABTRIM-STD DE200 1
70 SCREW 1
71 KIT AYWATER PUMP 3.3 L models 1
72 GASKETWTR PMP 5PK Contents of GEARCASE SEAL KIT (005 per pack) 1
73 PLATEWATER PUMP Stainless 1
74 SEAL 1
75 KIT AYIMPELLER 1
76 O RING 1
77 IMP KEY-WHITE 1
78 CUPIMP HOUSING Stainless 1
79 O-RING (005 per pack) 1
80 HOUSING AYIMPLR 3.3 L models 1
81 GROMMET 3.3 L models 1
82 COVERIMPELLER HSG 3.3 L models 1
83 SCREW (005 per pack) 4
84 SCREW 2
85 GROMMET 1
86 SEALPUMP-EX HSG 20 in. Models 1
87 CUP & PLATE AY Optional 1
88 KIT AYSEAL-GC 1
