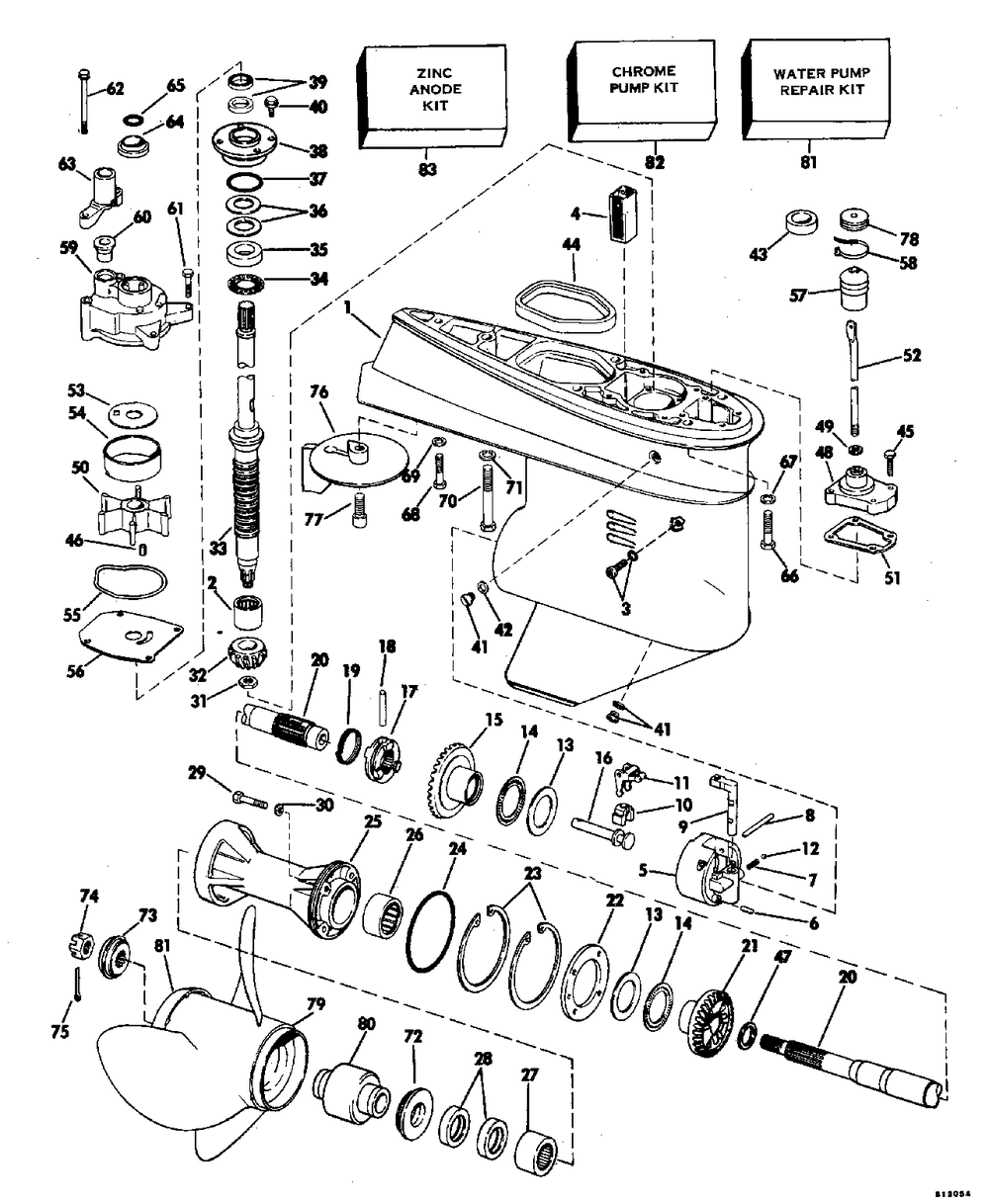

GEARCASE ROPE START

Корзина пуста
Наименование Примечание Кол-во
1 Детать 1
2 BEARING 1
3 RETAINING SCREW 1
4 SCREEN 1
5 BRG HSG&PIN AY 1
6 PIN 1
7 LEVER 1
8 PIN 1
9 DETENT 1
10 SET SCREW 2
11 SPRING 2
12 BALL 2
13 WASHER 2
14 BEARING AYTHRUST 2
15 GEARWASHERBRG AY 1
16 SHAFT C-DOG 1
17 SHIFTER 1
18 PIN 1
19 SPRING 1
20 SHAFT AYPROPELLER 1
21 REVERSE GEAR 12:32 1
22 PLATE RETAINER 1
23 RING 2
24 O-RING Contents of Gearcase Seal Kit (010 per pack) 1
25 P-SHFT BRG HSG AY 1
26 NEEDLE BRG 1
27 NEEDLE BRG AY 1
28 SEAL DRL 5-PK (005 per pack) 2
29 SCREW BRG HSG Contents of Gearcase Seal Kit 4
30 SEAL (010 per pack) 1
31 NUT 1
32 PINION GEAR 1
33 D-SHAFT AY 1
33 Детать 1
34 THRUST BRG 1
35 THRUST WASHER 1
36 SHIM 005 0
36 Детать 0
37 O-RING (005 per pack) 1
38 Детать 1
39 OIL RETAINER 2
40 SCREW 4
41 DRAIN FILL PLG 10P (010 per pack) 2
42 WASHER-10 PK (010 per pack) 1
43 SEAL RING (WRL Models Only.) 1
44 SEAL Contents of Gearcase Seal Kit 1
45 SCREW 4
46 KEY-IMPELLER Use with Stainless Steel Key Also included in Water Pump Repair Kit 395062 1
47 THRUST WASHER 1
48 Детать 1
49 O-RING (005 per pack) 1
50 IMPELLER (389589) Also included in Water Pump Repair Kit tahos_391635 1
51 GASKET 5 PK Contents of Gearcase Seal Kit (005 per pack) 1
52 5RAO-SHIFT ROD-SHT 1
52 5RAO-SHIFT ROD-LG 1
53 PLATE LINER HSG Stainless Steel Also included in Water Pump Repair Kit 396932 1
54 LINER IMPELLER HSG Stainless Steel Also included in Water Pump Repair Kit 396932 1
55 SEAL Also included in Water Pump Repair Kit 396932 1
56 PLATE IMP HSG Stainless Steel Also included in Water Pump Repair Kit 396932 1
57 SEAL 1
58 TIE STRAP 100PK (100 per pack) 1
59 IMPELLER HSG Also included in Water Pump Repair Kit 396932 1
60 GROMMET Also included in Water Pump Repair Kit 396932 1
61 SCREW-PIVOT CAP 2
62 SCREW-IMP HSG 2
63 BRKT-WTR TUBE 1
64 GROMMET Also included in Water Pump Repair Kit 433549 1
65 O-RING 1
66 SCREW (WRL Models Only. 20 in. (508mm) Models Only.) 4
67 LOCKWASHER (WRL Models Only. 20 in. (508mm) Models Only.) 4
68 SCREW 1
69 LOCKWASHER 1
70 SCREW 1
71 LOCKWASHER 4PK (004 per pack) 1
72 BUSHINGTHRUST 1
73 SPACER (005 per pack) 1
74 PROP NUT 1
75 COTTER PIN (010 per pack) 1
76 TABTRIM 1
77 SCREW 1
78 GROMMET 1
79 SSP V4 13.75X13 Swept Blade 1
79 PROP AL14 X 9 1
79 PROPAL 14 X 11 1
79 PROP AYAL 13.2X19 1
79 PROP AYAL 13.2X21 1
79 VIPERV4 13.875X17 1
79 VIPERV4 13.875X19 1
79 Детать 1
79 Детать 1
79 VIPER V413.875X15 1
79 SST V-4 23" 1
79 PROPAL 13.75X13 1
79 PROP AYAL 13.5X15 1
79 PROPAL 13.25X17 1
79 Детать 1
80 Детать 1
81 KIT AYWATER PUMP 1
81 KIT AYWATER PUMP 1
82 Детать 1
83 ZINC ANODE KIT OB 1
0123009 ZINC ANODE KIT OB 1
0304454 LOCKWASHER 2
0306643 SCREW 2
0307853 SEAL SCREW (010 per pack) 1
0391138 Not Shown 1
0391139 Not Shown 1
