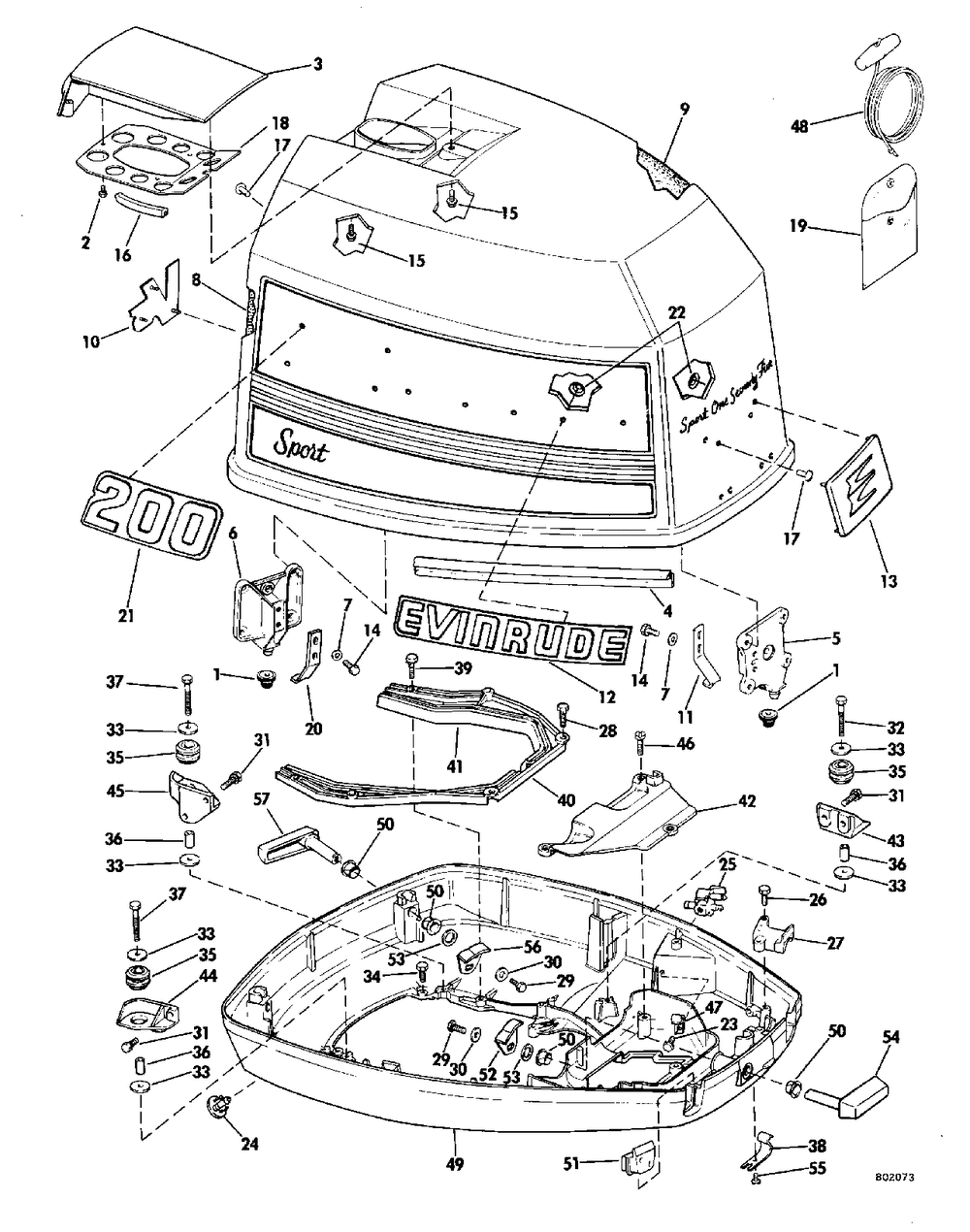

MOTOR COVER

№	Наименование	Кол-во
1	Детать	3
2	SCREW-BFL TILT HND	3
3	TILT HANDLE	1
4	SEAL-MTR CVR BLK	1
5	LOC BRKT BUMPER	1
6	Детать	2
7	WASHER	6
8	Детать	1
9	Детать	1
10	Деталь	1
11	HOOK-LOC BRKT	1
12	USED ON 75 MODELS	2
13	Used only on models with Power Tilt & Trim	1
14	SCREW	6
15	SCREW Baffle to center frame	2
15	SCREW Bracket to foam seal	1
16	Детать	1
17	RIVET	12
18	BAFFLE	1
19	30 Electric Start Models Only	1
20	HOOK-LOC BRKT	2
21	175 Models Only	2
21	235 Models Only	2
21	150 Models Only	2
22	FASTENER 5PK (005 per pack)	26
23	Детать	1
24	NIPPLE MC LWR 5PK (005 per pack)	1
25	FUEL CONN. BODY AY Fuel Connector With Quick Disconnect	1
26	SCREW	2
27	CLAMP	1
28	SCREW	2
29	SCREW 1/4-20	3
30	WASHER	3
32	SCREW	2
33	WASHER-MOUNT	6
35	GROMMET	4
36	SPACER	4
38	RETAINER	1
39	SCREW	4
40	Детать	1
41	Детать	2
42	Детать	1
43	SUPPORT	2
44	SUPPORT	1
45	SUPPORT	1
47	CLAMP	1
48	ROPE & HNDL	1
49	COVER AYLWR MTR	1
50	BUSHING 5-PK (005 per pack)	6
51	Детать	1
52	HOOK-MTR CVR-REAR	2
53	WASHER	3
54	LATCH & SHAFT	1
55	SCREW	1
56	HOOK-MTR CVR-LWR	1
57	LATCH & SHAFT	2
0208576	Not Shown Order from Factory Service Dept.Specifying Motor Model No.	1
0281404	Not Shown	1
0281405	Not Shown	1
0281406	Not Shown	1
0281485	Not Shown 150 Models Only	1
0281486	Not Shown 175 Models Only	1
0281487	Not Shown 200 Models Only	1
0281488	Not Shown 235 Models Only	1
0281558	Not Shown	1
0281700	Not Shown 200 Models Only	1
0281701	Not Shown 175 Models Only	1
0281702	Not Shown 150 Models Only	1
