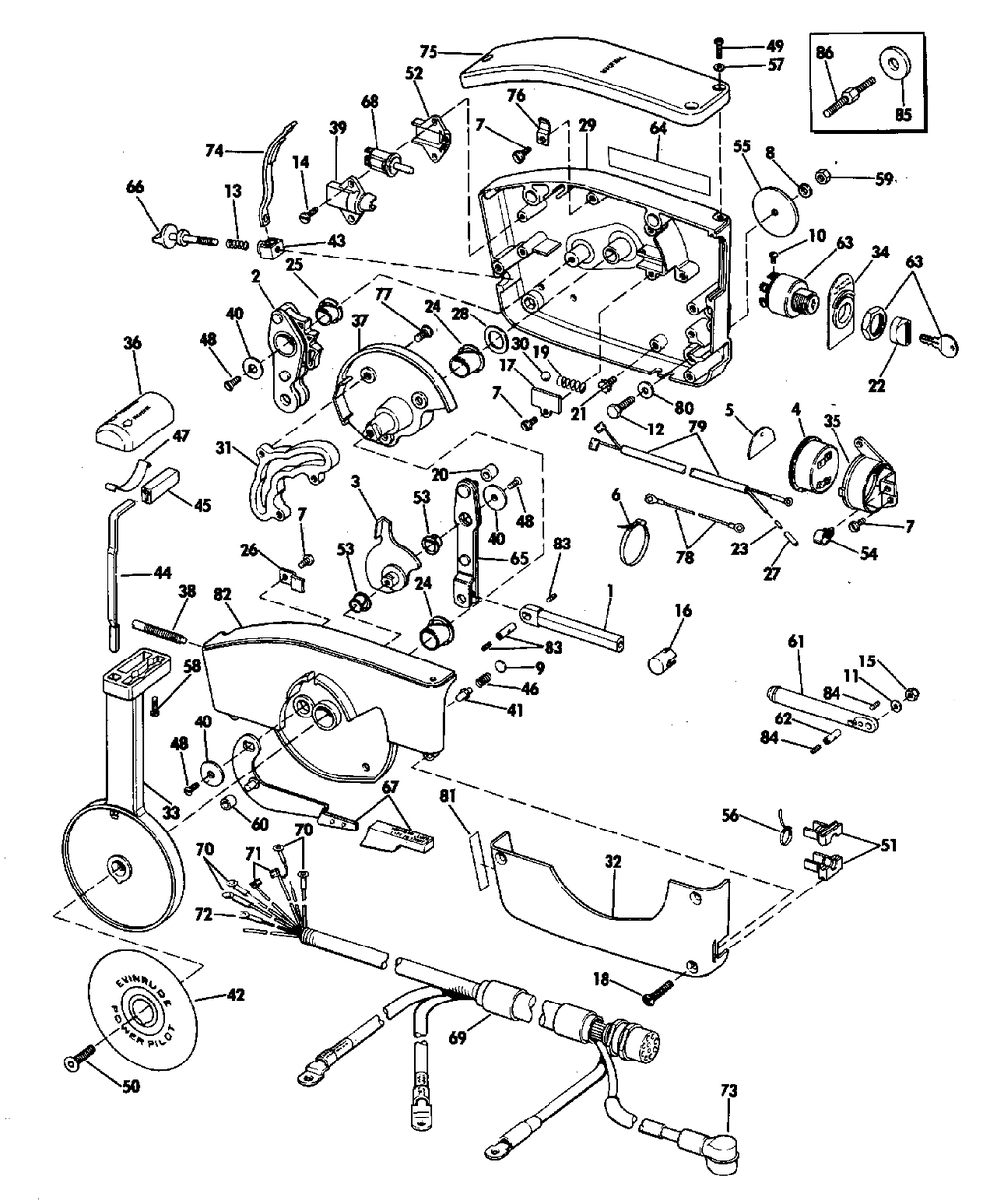

REMOTE CONTROL

Корзина пуста
Наименование Примечание Кол-во
1 CASING GUIDE 2
2 SHIFT LVR RE CONT 1
3 LINK 1
4 KIT AYHORN REPL 1
5 SEL Models Only 1
6 TIE STRAP 100PK (100 per pack) 6
7 SCREW 7
8 LOCKWASHER 3
9 PLUG 1
10 SCREWSLOTTED 6
11 WASHER 2
12 SCREW CONTROL MTG 3
13 SPRING 1
14 SCREW 2
15 NUT 2
16 TRUNNION CAP 2
17 Детать 1
18 SCREW 5
19 SPRING 1
20 ROLLER 1
21 SCREW 1
22 PUSH KNOB KEY Also Available in Installation Hardware Kit P/N 391773 1
23 TERM.485043-1 1
24 BUSHING 2
25 BUSHING 1
26 GUIDE 2
27 TUBING 2
28 WASHERSPRING 1
29 Детать 1
30 BALL 1
31 Детать 1
32 Детать 1
33 USED ON MODELS WITHOUT POWER TILT AND TRIM 1
34 Детать 1
35 MTG BRACKET 1
36 USED ON MODELS WITHOUT POWER TILT AND TRIM 1
37 Детать 1
38 SET SCREW 1
39 Детать 1
40 WASHER 3
41 Детать 1
43 NUT 1
44 LEVER 1
45 Детать 1
46 SPRING 1
47 SPRING USED ON MODELS WITHOUT POWER TILT AND TRIM 1
48 SCREW 3
49 SCREW 3
50 SCREW 1
51 Детать 2
52 Детать 1
53 BUSHING 2
54 Детать 1
55 WASHER 3
56 TIE STRAP 100 PK (100 per pack) 1
57 WASHER 3
58 SCREW 2
59 NUT 3
60 Детать 1
61 GUIDE & ORING 2
62 CABLE CLAMP 2
63 IGNITION SWITCH SEE SERVICE BULLETIN FOR KEY ORDERING INFORMATION. 1
65 THROTTLE LVR 1
66 KNOB&SCREW AY 1
67 Детать 1
68 Детать 1
69 Детать 1
70 TERM. 40724 (005 per pack) 4
71 TERM.41532 2
72 RING TERMINAL 1
73 CVRBATTERY CABLE 1
74 LEVER ARM & PAD AY 1
75 Детать 1
76 Детать 2
77 SCREW 3
78 LEAD AY 1
79 LEAD ASSEMBLY 1
80 WASHER 3
81 Детать 1
82 Детать 1
83 CLAMP & SCREW 2
84 SET SCREW 8
85 WASHER 2
86 STUD 2
0281044 Not Shown NOTES: USE THROTTLE AND SHIFT CABLES(377365 5FT)THRU(379850 50 FT) WITH THIS REMOTE CONTROL.FOR DUAL INSTALLATION ON STBD.SIDE OR SINGLE 1
0386057 OPTIONAL MOUNT KIT Not Shown 1
