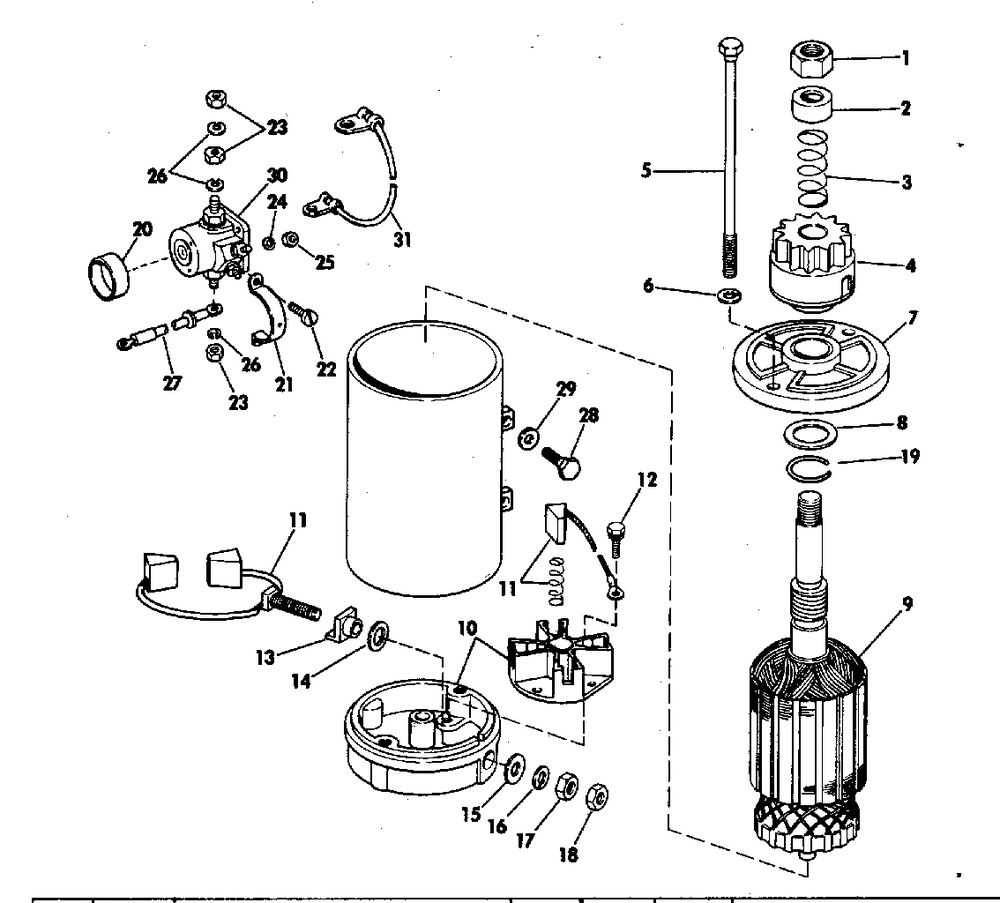

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | NUTSPRINGSPACER | 1 | |
| 2 | DCAL PT B ORNGE 10 Bright Orange | 1 | |
| 3 | NUTSPRINGSPACER | 1 | |
| 4 | DRIVE AY With Nut Starter Drive Retention | 1 | |
| 5 | THRU BOLT PACKAGE | 1 | |
| 6 | LOCKWASHER | 2 | |
| 7 | CAP ASSEMBLY DRIVE With Nut Starter Drive Retention | 1 | |
| 8 | WASHER | 1 | |
| 9 | With Nut Starter Drive Retention | 1 | |
| 10 | CAP AY COMMUTATOR With Nut Starter Drive Retention | 1 | |
| 11 | BRUSH & SPRG | 1 | |
| 12 | Детать | 2 | |
| 13 | BUSHING | 1 | |
| 14 | WASHER | 1 | |
| 15 | Детать | 1 | |
| 16 | LOCKWASHER | 1 | |
| 17 | NUT-SPARK ADJ | 1 | |
| 18 | NUT | 1 | |
| 19 | SNAP RING THRUST | 1 | |
| 20 | SLEEVE | 1 | |
| 21 | CLAMP | 1 | |
| 22 | SCREW | 2 | |
| 23 | NUT | 3 | |
| 24 | LOCK WASHER | 2 | |
| 25 | NUT.190X32 BRASS | 2 | |
| 26 | LOCKWASHER | 3 | |
| 27 | LEAD SOL-STARTER | 1 | |
| 28 | SCREW | 2 | |
| 28 | SCREW | 1 | |
| 30 | SOLENOID AYSTART | 1 | |
| 31 | Детать | 1 | |
| 0385529 | MOTOR AYSTARTER Not Shown SEE ELECTRIC STARTER & SOLENOID AMERICAN BOSCH 17916-20-M030SM FOR MOUNTING HARDWARE & SOLENOID | 1 |
