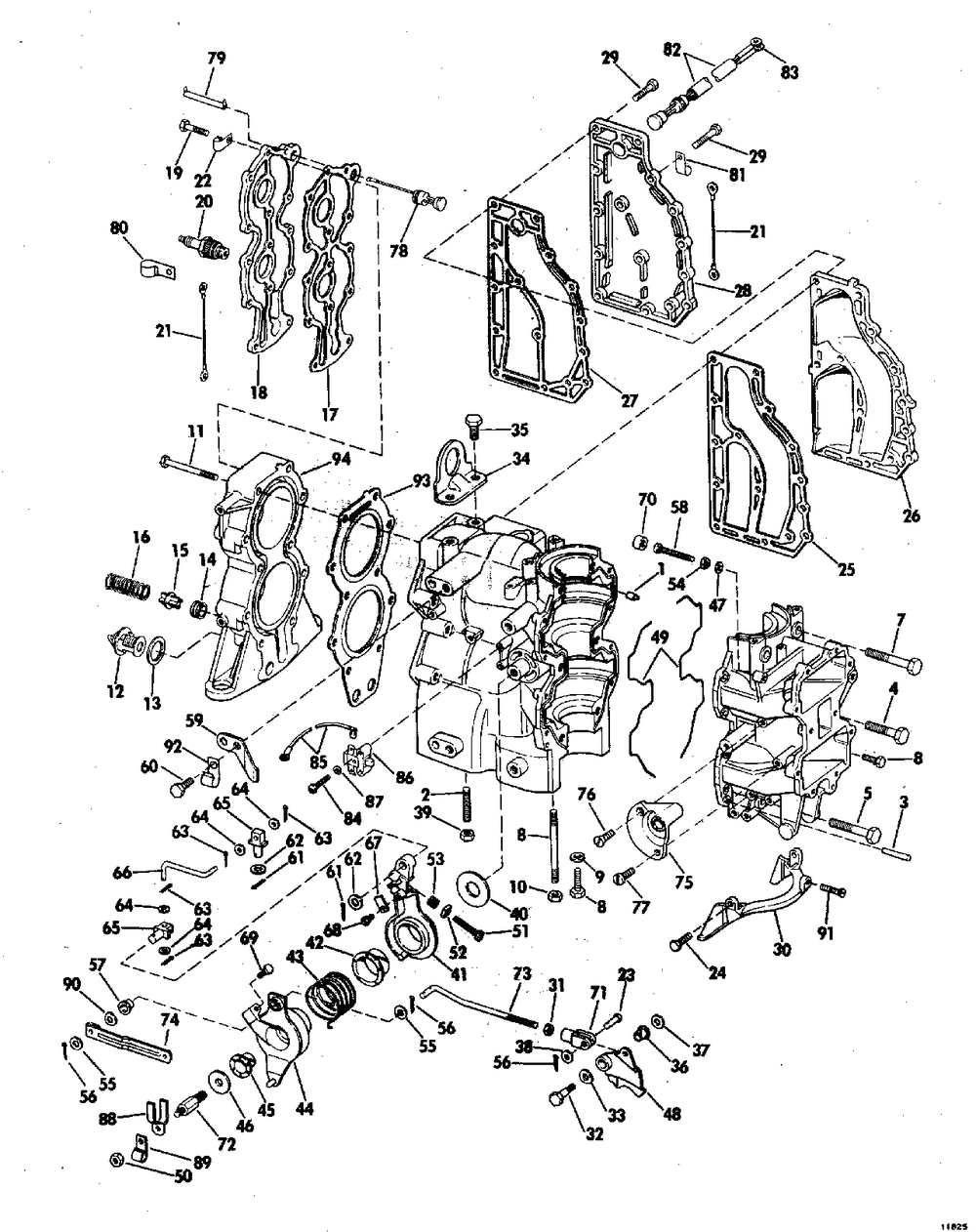

Evinrude 50 50273C 50 50273C CYLINDER & CRANKCASE
CYLINDER & CRANKCASE
№ Наименование Примечание Кол-во
1 DOWEL 2
2 STUD 1
3 PIN 4PK (004 per pack) 1
4 SCREW 2
5 SCREW 2
6 SCREW 8
7 Детать 2
8 SCREW 8
10 NUT 9
11 SCREW 10
12 THERMOSTAT AY Early Production 1
13 SEAL 4 PK (004 per pack) 1
14 GROMMET "B" "M" & "C" Suffix Models . 1
15 VALVEPRESS RELIEF 1
16 SPRING-VALVE Electric Start Models Only 1
17 GASKETCYL HD CVR Electric Start Models Only 1
18 Детать 1
19 SCREW 14
20 SP PLUG UL77V 8PK 15KC Models Only (008 per pack) 2
21 Детать 2
22 CLAMP 1
23 ANCHOR PIN 1
24 SCREW 0
25 GASKETIN EX CVR 1
26 Детать 1
27 GSKT OUT EX CVR 1
28 Детать 1
29 SCREW 15
30 FRAME 1
30 FRAME ELECTRIC START MODELS ONLY 1
31 NUT-SPARK ADJ 1
32 SCREW 1
33 WASHER 1
34 LIFT BRKT 1
35 SCREW 2
36 BUSHING 1
37 WASHER 1
38 WASHER 1
40 WASHER 1
41 LEVER 1
42 BUSHING 1
43 SPRING 1
44 LEVER Rope Start Models 1
45 BUSHING 1
46 WASHER (9.9 Rope Models. 9.9 Tiller Electric High Thrust Models. 15 Rope Models.) 1
47 LOCKWASHER 1
48 THROTTLE CAM 1
50 NUT Electric Start Models 1
51 Детать 1
52 NUT 1
53 SPRING 1
56 COTTER PIN 10PK (010 per pack) 3
57 BUSHING 1
58 Electric Start Models Only 1
59 Детать 1
60 SCREW Idle stop 1
61 COTTER PIN 2
62 WASHER 2
63 COTTER PIN 4
64 WASHER 4
65 RETAINER 2
66 Детать 1
67 RETAINERWIRE 1
68 SCREW 1
69 SCREW 1
70 BUMPER 1
71 YOKE 1
71 Детать 1
72 SCREW Electric Start Models Only 1
72 SUPPORT ELECTRIC START MODELS ONLY 1
73 LINK 1
73 LINK Rope Start Models 1
74 LINK Rope Start Models 1
75 GUIDE Rope Start Models 1
76 SCREW Rope Start Models 1
77 MANUAL START MODELS ONLY 1
78 ELECTRIC START MODELS ONLY 1
79 Детать 1
80 CLAMP 'J' 1
81 J-CLAMP 1
82 Детать 1
83 TERM. 40724 (005 per pack) 2
84 SCREW ELECTRIC START MODELS ONLY 2
85 LEAD AY ELECTRIC START MODELS ONLY 1
86 SAFETY SWITCH AY 1
87 WASHER 25 TE Models Electric Start 35 Models 2
88 CLAMP 1
89 CLAMP 1
90 WASHER 1
91 SCREW 1
92 CLAMP TE - TEL - TTL Models Only 1
93 Детать 1
94 CYL HEAD 1
0385270 Not Shown 1
0385385 GASKET SET PWHD 1
