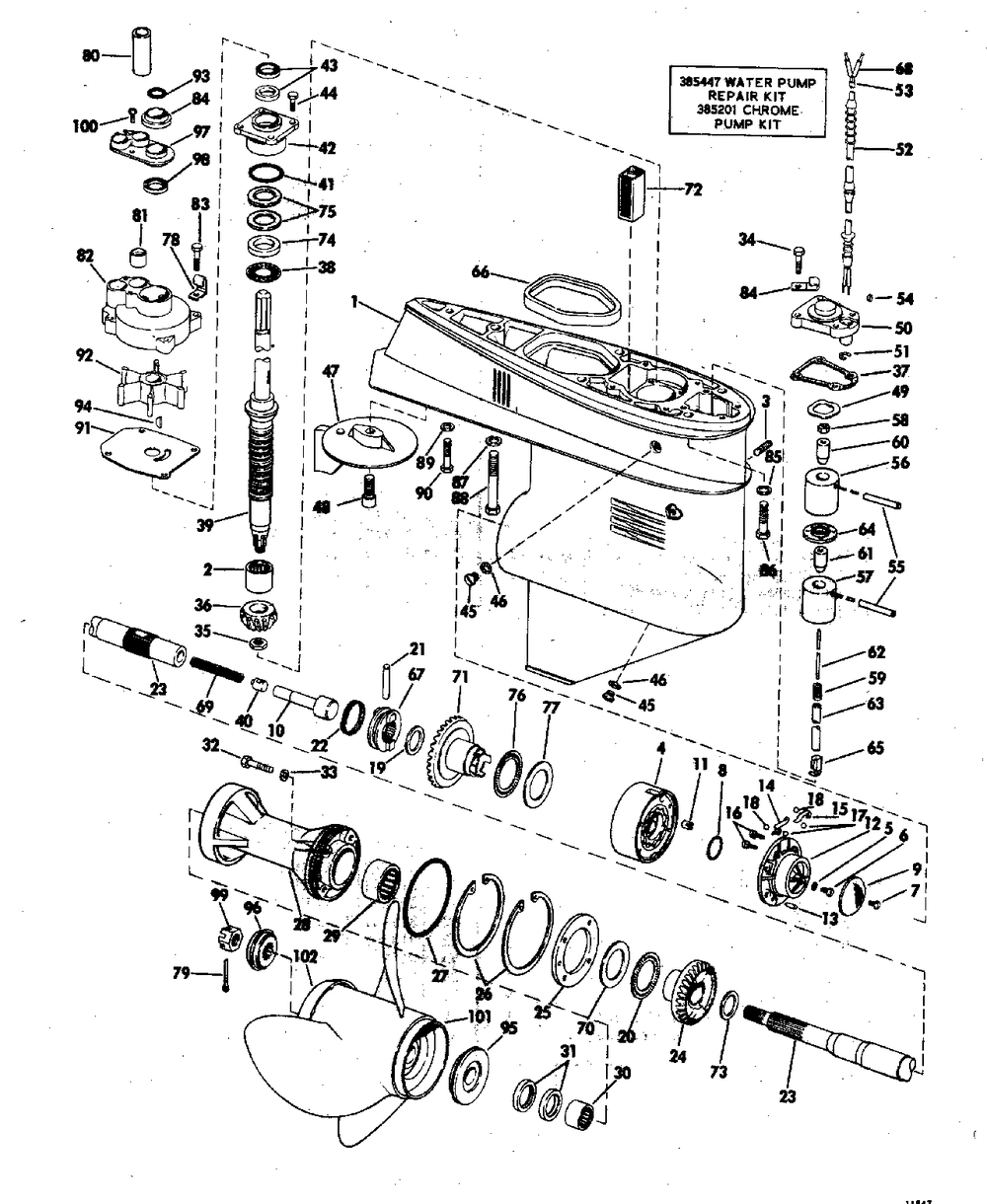

GEARCASE

№	Наименование	Кол-во
1	GCASE & BRG	1
3	SET SCREW	1
4	VLVE&OIL PUMP	1
5	LOCK WASHER	4
6	SCREW	4
10	PISTON	1
11	PLUG PUMP HSG	1
15	VALVE LEVER	1
16	PIN	2
17	BALL VALVE	2
18	VALVE SEAT	2
19	WASHERTHRUST	1
20	BEARING AYTHRUST	1
24	REVERSE GEAR	1
27	O-RING Contents of Gearcase Seal Kit (010 per pack)	1
29	NEEDLE BRG	1
30	NEEDLE BRG AY	1
31	SEAL DRL 5-PK (005 per pack)	2
32	SCREW BRG HSG	4
33	SEAL (010 per pack)	1
34	SCREW (005 per pack)	4
35	NUT	1
37	GASKET 5 PK Contents of Gearcase Seal Kit (005 per pack)	1
38	THRUST BRG	1
39	Детать	1
39	DSHFT AY STD	1
40	CLUTCH DOG PIN RET	1
41	O-RING (005 per pack)	1
42	D/S BRG HSG&SEAL	1
43	OIL RET 5 PK (005 per pack)	2
44	SCREW	4
45	DRAIN FILL PLG 10P (010 per pack)	2
46	WASHER-10 PK (010 per pack)	1
47	TABTRIM-STD	1
48	SCREW	1
49	WASHER	1
50	SOLENOID COVER	1
51	RETAINER	1
52	Детать	1
53	TERMINAL KIT	1
54	TERM.485043-1	1
55	PLSTC TUBING	2
56	SOLENOID AY SHIFT	1
66	SEAL	1
67	SHIFTER	1
68	Детать	2
69	SPRING	1
70	WASHER	1
72	SCREEN	1
73	THRUST WASHER	1
77	THRUST WASHER	1
79	COTTER PIN (010 per pack)	1
80	Детать	1
81	GROMMET 3.3 L models	1
85	LOCKWASHER (WRL Models Only. 20 in. (508mm) Models Only.)	4
86	SCREW	4
87	LOCKWASHER 4PK (004 per pack)	1
88	SCREW	1
89	LOCKWASHER	1
91	PLATE-IMP HSG	1
94	KEY	1
100	SCREW-ADJ LEVER	2
101	Детать	1
101	VIPERV4 13.875X17	1
101	VIPERV4 13.875X19	1
101	PROP AYAL 13.2X21	1
101	PROP AYAL 13.2X19	1
101	Детать	1
101	PROP AYAL 13.2X21	1
102	RING-CONVERGING	1
102	CONVERG RING	1
0384459	Not Shown	1
0385094	Not Shown	1
0385095	Not Shown	1
