Evinrude 40 40853S 40 40853S GEARCASE GROUP ELECTRIC START

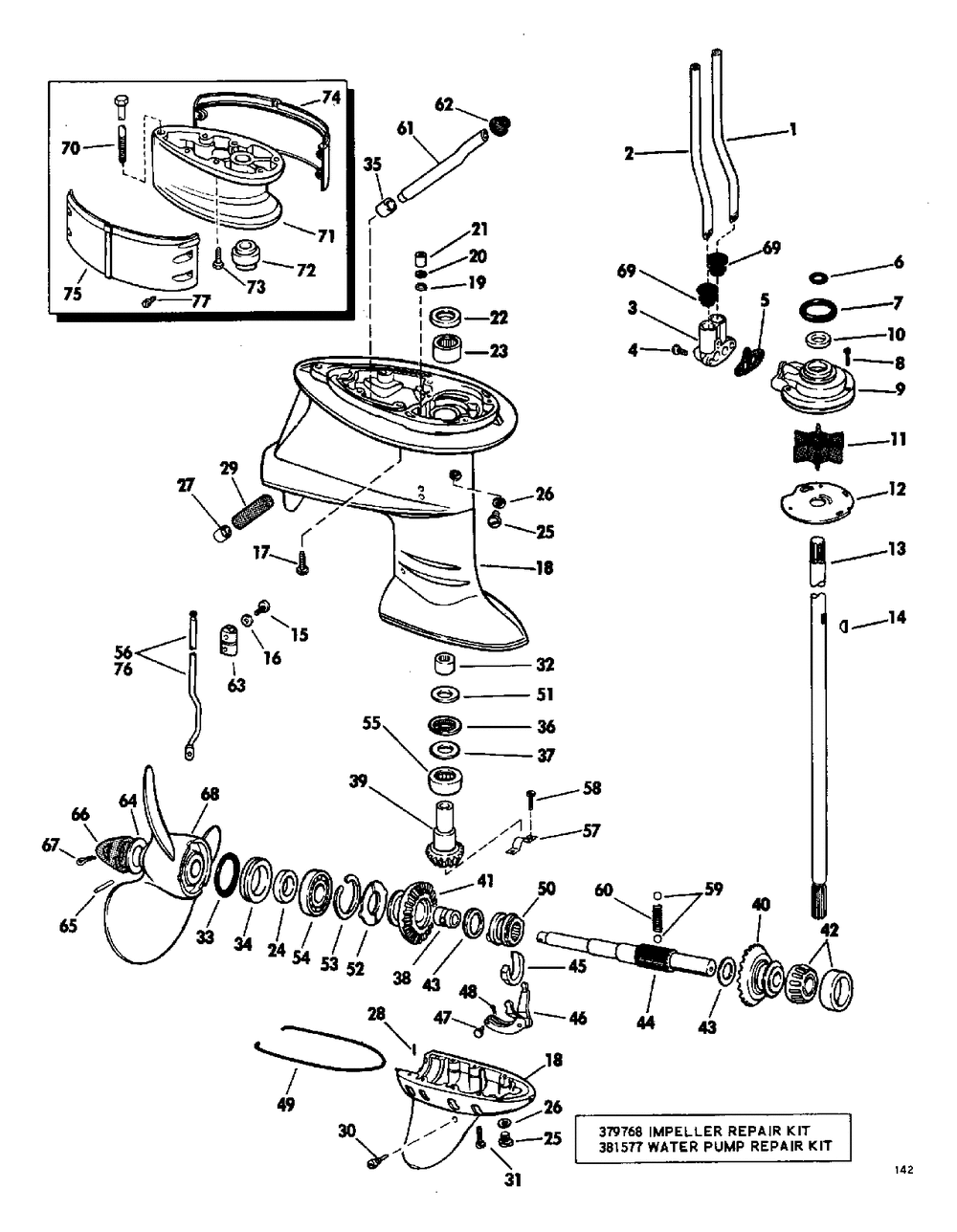

GEARCASE GROUP ELECTRIC START
№ Наименование Примечание Кол-во
1 WATER TUBE 1
1 WATER TUBE 1
2 WATER TUBE 1
2 WATER TUBE 1
3 CAP 40802D - 40803D MODELS 1
3 IMPELLER HSG CAP 1
4 SCREW 2
5 GASKET 1
6 O-RING 1
7 O RING 1
8 SCREW 3
9 HSG & SEAL 1
10 OIL RETAINER 1
11 IMPELLER (377230) 1
12 PLATE 1
13 Детать 1
13 Детать 1
14 KEY 1
15 SCREW (005 per pack) 2
16 LOCKWASHER 2
17 SCREW 6
18 Детать 1
19 GASKET 1
20 O RING Contents of Gearcase Seal Kit (005 per pack) 1
21 BUSHING J 2PK (002 per pack) 1
22 OIL SEAL 1
23 BEARING AY 1
24 OIL RETAINER 1
25 DRAIN FILL PLG 10P (010 per pack) 2
26 WASHER-10 PK (010 per pack) 1
27 PLUG 1
27 PLUGWATER PASSAGE 1
28 DOWEL (Contents of Water Pump Repair Kit. RL RVL EL EVL Models.) 1
29 WATER INTAK SCREEN 1
29 SCREEN 40802D - 40803D MODELS 1
30 PIVOT PIN & WASHER 1
31 SCREW (005 per pack) 9
32 BRG AY NEEDLE 1
33 O RING 5 PK (005 per pack) 1
34 HSG&SEAL AY 1
35 GROMMET 1
36 THRUST BEARIN 1
37 THRUST WASHER 1
38 BUSHING 1
39 Детать 1
40 GEAR & BSHG FWD 1
41 GEAR REVERSE 1
42 Детать 1
43 WASHER 1
44 PROP SHAFT 1
45 Детать 1
46 SHIFTER LEVER 1
47 PIN 1
48 COTTER PIN 1
50 SHIFTER 1
51 WASHER 1
52 WASHER 1
53 RETAINING RING 1
54 BALL BEARING 1
55 Детать 1
56 SHIFT ROD LWR 1
57 SUPPORT 1
58 SCREW 2
59 BALL 2
60 SPRING 1
61 WATER TUBE 1
61 WATER TUBE EXTENSI 40802D - 40803D MODELS 1
62 GROMMET Also included in contents of Water Pump Repair Kit tahos_391741 1
63 CONNECTORSHFT ROD 20 INCH (508mm) LONG PARTS 1
63 CONNECTORSHFT ROD 1
64 THRUST WASHER 1
65 DRIVE PIN (010 per pack) 1
66 PROP NUT 1
67 COTTER PIN 10 PK (010 per pack) 1
68 Детать 1
68 Детать 1
68 Детать 1
68 Детать 1
69 SCREW (328333) Electric Start Models Only 6
70 SCREW G/C EXTN 20 INCH (508mm) LONG PARTS 1
71 Детать 1
72 ADAPTOR 1
73 SCREW 1/4-20X.750 4
74 Детать 1
75 Детать 1
76 ROD LWR LONG 127 mm 5 INCH LONGER PARTS 1
0305642 SPRING Not Shown 1
0378726 GEAR SET No longer available. Please order the following: 1 pc - 303690 Busing 1 pc - 312869 Gear 1 pc - 322605 Pinion 1 pc - 381810 Gear and Bushing 1
0378990 40802D - 40803D MODELS Not Shown 1
0382919 Not Shown 1
0383063 EXTENSION KIT Not Shown 1
