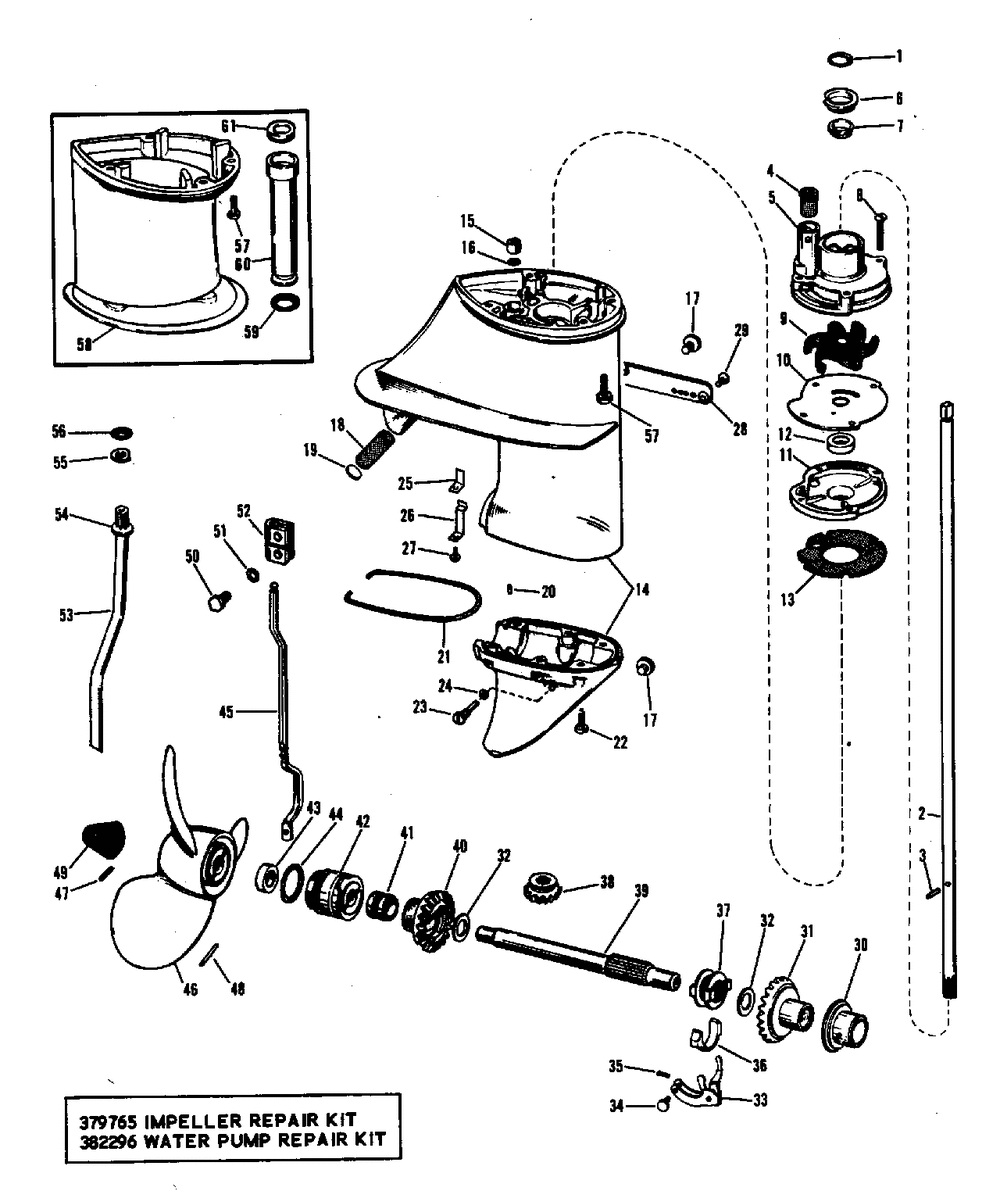

GEARCASE GROUP

Корзина пуста
Наименование Примечание Кол-во
1 O RING 5 PK Contents of Water Pump Repair Kit (005 per pack) 1
2 Детать 1
2 DRIVE SHAFT 1
3 PIN 1
4 GROMMET (005 per pack) 1
5 IMP HSG CONTENTS OF WATER PUMP REPAIR KIT 1
6 Детать 1
7 Детать 1
8 SCREW 4
9 IMPELLER (377178) CONTENTS OF WATER PUMP REPAIR KIT 1
10 PLATE 1
11 Детать 1
12 OIL RETAINER 1
13 GASKET 1
14 Детать 1
15 BUSHING 1
16 O RING Contents of Gearcase Seal Kit (005 per pack) 1
17 DRAIN FILL PLG 10P (010 per pack) 2
19 PLUG 1
20 DOWEL (Contents of Water Pump Repair Kit. RL RVL EL EVL Models.) 1
22 SCREW 6
23 PIVOT PIN & WASHER 1
24 SEAL SCREW (010 per pack) 1
25 SPRING 1
26 Детать 1
27 SCREW 1
28 Детать 1
29 SCREW 2
30 BEARING 1
31 GEAR&BUSHING FWD 1
32 Детать 2
33 LEVER 1
34 PIN 1
35 COTTER PIN 1
36 CRADLE 1
37 SHIFTER 1
38 PINION 1
39 PROP SHAFT 1
40 GEARREVERSE 1
41 BUSHING 1
42 Детать 1
44 O RING 1
45 Детать 1
45 SHIFT ROD 1
46 PROPAL 8-1/4X8 1
47 COTTER PIN 10 PK (010 per pack) 1
48 DRIVE PIN (010 per pack) 1
49 PROP NUT 1
50 SCREW (005 per pack) 2
51 LOCKWASHER 2
52 CONNECTORSHFT ROD 1
53 Детать 1
53 Детать 1
54 PUSH NUT 1
55 Детать 1
56 O RING 1
57 Детать 4
58 Детать 1
59 O RING 1
60 SPACER 1
61 Детать 1
0202893 O-RING (005 per pack) 1
0300630 SCREW 2
0304081 CONNECTORSHFT ROD 20 INCH (508mm) LONG PARTS 1
0311150 Not Shown 1
0311598 WASHER-10 PK (010 per pack) 1
0313079 WASHER 2
0380022 Not Shown 1
0382575 Not Shown 1
