Evinrude 225 E225DPZSEB 225 E225DPZSEB GEARCASE

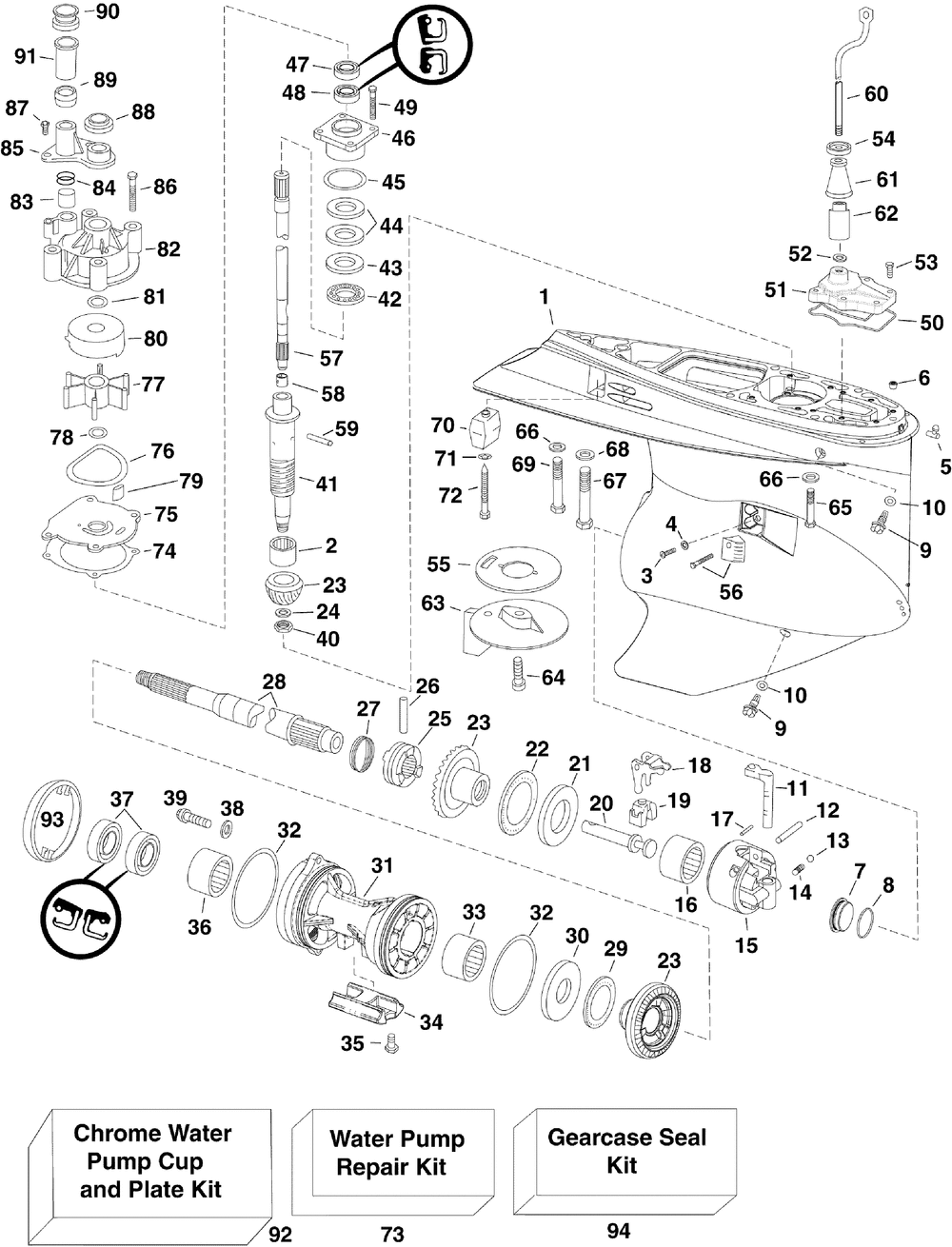

GEARCASE
№ Наименование Примечание Кол-во
- SCREW 2
- SCREENWATER INLET 1
- SCREENWATER INLET 1
- CUPIMP HSG-CHROME Chrome 1
- PLATE WATER PUMP Chrome 1
- G/C AY M2 STD BLU Blue Models Less Driveshaft & Shift Shaft 1
- G/C AYM2 WHT-.54 White Models Less Driveshaft & Shift Shaft 1
1 GEARCASE & BRG AY 1
2 ROLLER BRG AY 1
3 RETAINING SCREW 1
4 WASHER 5PK (005 per pack) 1
5 NIPPLE 1
6 PLUG LARGE MANIFD 1
7 PLUG&O-RING AY 1
8 O-RING 1
9 DRAIN SCREW Contents of GEARCASE SEAL KIT 1
10 WASHER-10 PK (010 per pack) 2
11 DETENT SHIFT M2 1
12 PIN-SHIFTER ARM 1
13 BALL 1
14 SPRING 1
15 HOUSING AYSHIFTER 4
16 BRG AY-FWD GEAR 1
17 PIN 1
18 SHIFTER-LEVER 1
19 CRADLE-SHIFT 1
20 SHAFTSHIFTER 1
21 WASHERTHRUST 0
22 BEARING AY 1
23 GR SETFWD/PIN/REV Ratio 1
24 WASHER 1
25 SHIFTER-CLUTCH DOG 1
26 PIN 1
27 SPRING 1
28 SHAFT AYPROPELLER 2
29 THRUST BRG-FWD GR 1
30 THRUST WASHER-REV 2
31 P/S BRG HSGSTD RO 1
32 O-RING 2
33 NEEDLE BRG 1
34 ANODE & INSERT AY 1
35 SCREW 2
36 BEARING AYNEEDLE 1
37 SEAL Contents of GEARCASE SEAL KIT 1
38 WASHER 2
39 SCREW 2
40 NUT PINION 2
41 DRIVESHAFTLOWER 1
42 THRUST BRG AY 1
43 THRUST WASHER 1
44 SHIM-PINION-003 2
44 SHIM-PINION-004 0
44 SHIM 005 0
46 DS BRG HSG&SEAL AY 1
47 OIL RETAINER Contents of GEARCASE SEAL KIT 1
48 OIL RETAINER Contents of GEARCASE SEAL KIT 1
49 SCREW Contents of GEARCASE SEAL KIT 1
50 SEAL Contents of GEARCASE SEAL KIT 1
51 COVER AYSHIFT ROD 1
52 O-RING (005 per pack) 1
53 SCREW 6
54 GROMMET EXH HSG 1
55 SEAL 1
56 KIT AYWTR SCN/MAG Optional Height Flush 1
56 KIT AYWTR SCN MAG Optional Height +0.060 in. (1.52 mm) 1
56 KIT AYWTR SCREEN 200HCX DE200 CX / 225DCX 1
56 KIT AYWTR SCREEN Optional Height + 0.410 in. (10.4 mm) 1
57 KITUPPER D/S-25" 25 in. Models 1
57 KITUPPR D/S 30" 30 in. Models 1
57 UPPER D/S KIT 20" 20 in. Models 1
58 RETAINERDR SFT 1
59 PINROLL 1
60 SHIFT ROD 25" MAG 1
60 SHIFT ROD 30" MAG 1
60 SHIFT ROD 20" MAG 20 in. Models 1
61 SPACER-SHIFT ROD 25 30 in. Models 1
62 EXTENSIONSPACER 30 in. Models 1
63 TABTRIM-STD DE200 1
64 SCREW 1
65 SCREW 4
66 WASHER 5
67 SCREW 1
68 WASHER 1
69 SCREW 1
70 ANODE&INSERT AY 1
71 LOCKWASHER 1
72 SCREWANODE 1
73 KIT AYWATER PUMP 3.4 L models 1
73 KIT AYWATER PUMP 3.3 L models 1
74 GASKETWTR PMP 5PK Contents of GEARCASE SEAL KIT (005 per pack) 1
75 PLATEWATER PUMP Stainless 1
76 SEAL 1
77 KIT AYIMPELLER 1
78 O RING 1
79 IMP KEY-WHITE 1
80 CUPIMP HOUSING Stainless 1
81 O-RING (005 per pack) 1
82 HOUSING AYIMPLR 3.3 L models 1
82 HOUSING AYIMPLR 1
83 GROMMET 3.3 L models 1
85 COVERIMPELLER HSG 3.4 L models 1
85 COVERIMPELLER HSG 3.3 L models 1
86 SCREW (005 per pack) 4
87 SCREW 2
88 GROMMET 1
89 SEALPUMP-EX HSG 20 in. Models 1
90 GROMMET 1
91 SLEEVE 1
91 SLEEVE (FCZ - Models.) 1
92 CUP & PLATE AY Optional 1
93 WEED RING-4 BLD Optional Use with Renegade Bass Propeller 1
94 KITG/C SEAL-SLE 1
