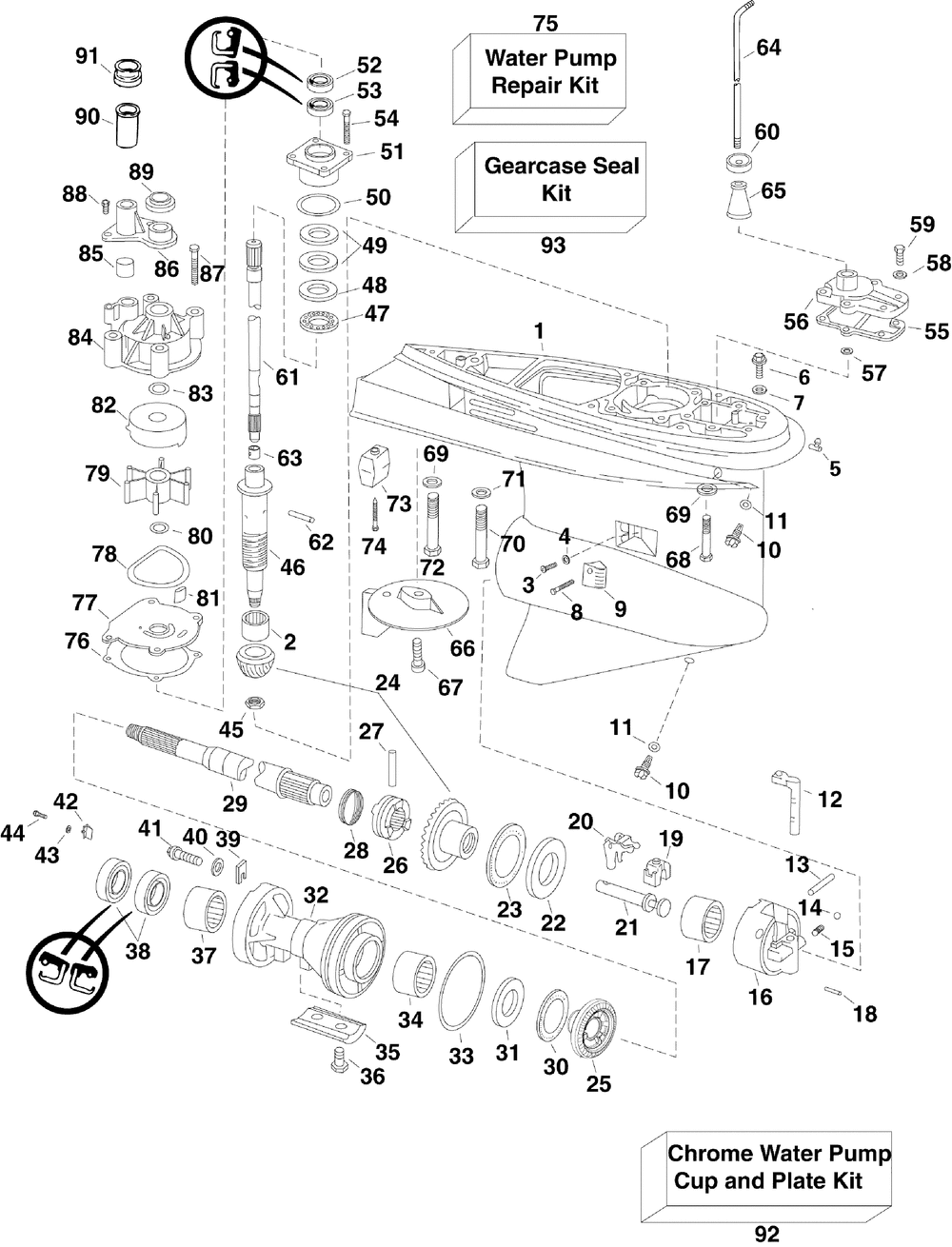

Evinrude 115 E115DBXSUC 115 E115DBXSUC GEARCASE
GEARCASE
№ Наименование Примечание Кол-во
- CUPIMP HSG-CHROME Chrome 1
- PLATE WATER PUMP Chrome 1
1 G/C AY V4 OS WHT White Models Less Driveshaft & Shift Shaft 1
1 G/C AY V4 OS BLU Blue Models Less Driveshaft & Shift Shaft 1
1A GCASE & BRG AY"O" 1
2 ROLLER BRG AY 1
3 RETAINING SCREW 1
4 WASHER 5PK (005 per pack) 1
5 NIPPLE 1
6 SCREW PITOT TUBE 1
7 WASHER&SEAL AY Contents of GEARCASE SEAL KIT 1
8 SCREW 2
9 SCREENWATER INLET 2
10 DRAIN SCREW Contents of GEARCASE SEAL KIT 2
11 WASHER-10 PK (010 per pack) 1
12 DETENT 1
13 PIN-SHIFTER ARM 1
14 BALL 1
15 SPRING 1
16 HSG.& BEARING AY 1
17 BRG AY-FWD GEAR 0
18 PIN 1
19 CRADLE-SHIFT 1
20 SHIFTER-LEVER 1
21 SHAFT-SHIFTER 1
22 THRUST WASHER 1
23 THRUST BRG-FWD GR 1
24 GEARSETFWD&PIN.44 Ratio 1
25 GEARREVERSE(.44) 1
26 SHIFTER-CLUTCH DOG 1
27 PIN 1
28 SPRING 1
29 PROPSHAFT AYSERV 1
30 BEARING AYTHRUST 1
31 THRUST WASHER 1
32 PS BRG HSG&SEAL AY 1
33 O-RING Contents of GEARCASE SEAL KIT (010 per pack) 1
34 NEEDLE BRG 1
35 ANODE & INSERT AY 1
36 SCREW 2
37 BEARING AYNEEDLE 1
38 SEAL Contents of GEARCASE SEAL KIT 2
39 RETAINING TAB 2
40 WASHER 2
41 SCREW BRG CARRIER 2
42 WEDGE 1
43 WASHERSPRING 1
44 SCREW 1
45 NUT PINION 1
46 DRIVESHAFTLOWER 1
47 THRUST BRG AY 1
48 THRUST WASHER 1
49 SHIM 005 0
49 SHIM-PINION-003 0
49 SHIM-PINION-004 0
50 O-RING (Contents of GEARCASE SEAL KIT.) 1
51 DS BRG HSG&SEAL AY 1
52 OIL RETAINER Contents of GEARCASE SEAL KIT 1
53 OIL RETAINER Contents of GEARCASE SEAL KIT 1
54 SCREW Contents of GEARCASE SEAL KIT 4
55 GASKET Contents of GEARCASE SEAL KIT (005 per pack) 1
56 COVER AYSHIFT ROD 1
57 O-RING (005 per pack) 1
58 WASHER 6
59 SCREW (005 per pack) 6
60 GROMMET EXH HSG 1
61 UPPR D/S KIT-25" 1
62 PINROLL 1
63 RETAINERDR SFT 1
64 RODSHIFT 25" 1
65 SPACER-SHIFT ROD 25 30 in. Models 1
66 TABTRIM-STD DE200 1
67 SCREW 1
68 SCREW 4
69 WASHER 5
70 SCREW 1
71 WASHER 1
72 SCREW 1
73 ANODE&INSERT AY 1
74 SCREW ANODE 1
75 KIT AYWATER PUMP 3.3 L models 1
76 GASKETWTR PMP 5PK Contents of GEARCASE SEAL KIT (005 per pack) 1
77 PLATEWATER PUMP Stainless 1
78 SEAL 1
79 KIT AYIMPELLER 1
80 O RING 1
81 IMP KEY-WHITE 1
82 CUPIMP HOUSING Stainless 1
83 O-RING (005 per pack) 1
84 HOUSING AYIMPLR 1
85 GROMMET 3.3 L models 1
86 COVERIMPELLER HSG 3.3 L models 1
88 SCREW 2
89 GROMMET 1
90 SLEEVE 1
91 GROMMET 1
92 CUP & PLATE AY Optional 1
93 KIT AYSEAL-GC 1
