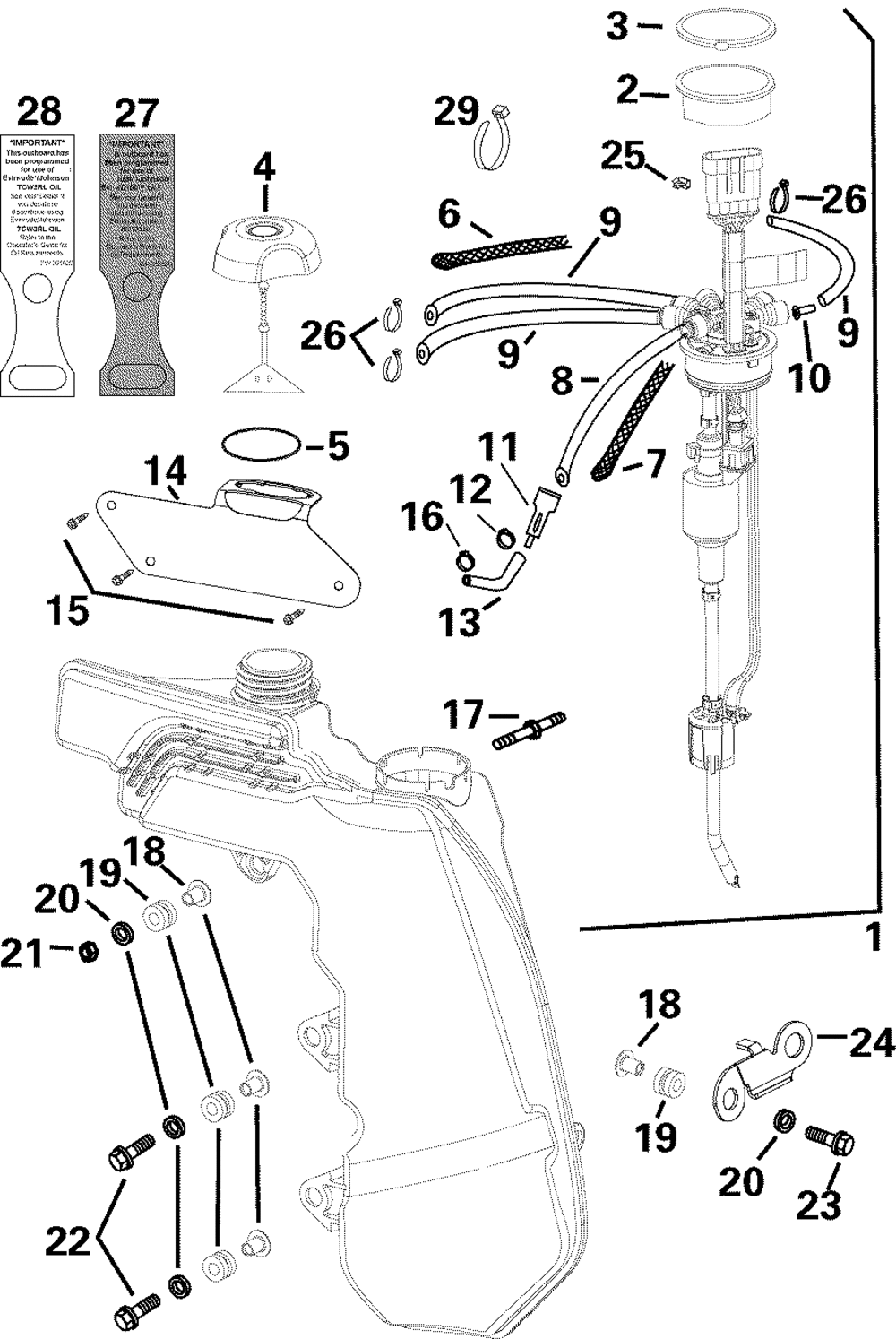

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 2 | SEAL | 1 | |
| 3 | CLAMPEAR-60.5M | 1 | |
| 4 | CAP AYOIL TANK | 1 | |
| 5 | O-RING | 1 | |
| 6 | SLEEVE Oil manifold to crankcase oil hose | 3 | |
| 7 | SLEEVEBRAIDED | 1 | |
| 8 | HOSE 25'(BLU) (Qty 2) upper - length 7.5in. (190mm) (Qty 1) lower transfer - length 6.0in. (152mm) (025 per pack) | 0 | |
| 10 | SUPPORTHOSE | 5 | |
| 11 | VALVE AYCHECK | 1 | |
| 12 | CLAMPEAR-11.3MM | 1 | |
| 13 | HOSE 5/32" ID-25' 0.156 in. (3.96 mm) diameter | 0 | |
| 14 | RETAINEROIL SPPLY | 1 | |
| 15 | SCREW Water deflector to center frame | 3 | |
| 16 | CLAMPEAR-10.5MM Use clamp on supply hose to rear oil pump only (005 per pack) | 1 | |
| 17 | BOLTDOUBLE ENDED | 1 | |
| 18 | SPACERFLANGED | 4 | |
| 19 | ISOLATOR Fuse & Relay bracket mounting | 4 | |
| 20 | WASHER Negative battery stud to center frame | 4 | |
| 21 | NUT | 1 | |
| 22 | SCREW | 2 | |
| 23 | SCREW | 1 | |
| 24 | Деталь | 1 | |
| 25 | CLIPMOUNTING | 1 | |
| 26 | TIE STRAP 100PK (100 per pack) | 3 | |
| 27 | TAGIDENTIFICATION | 1 | |
| 28 | TAGIDENTIFICATION | 1 |
